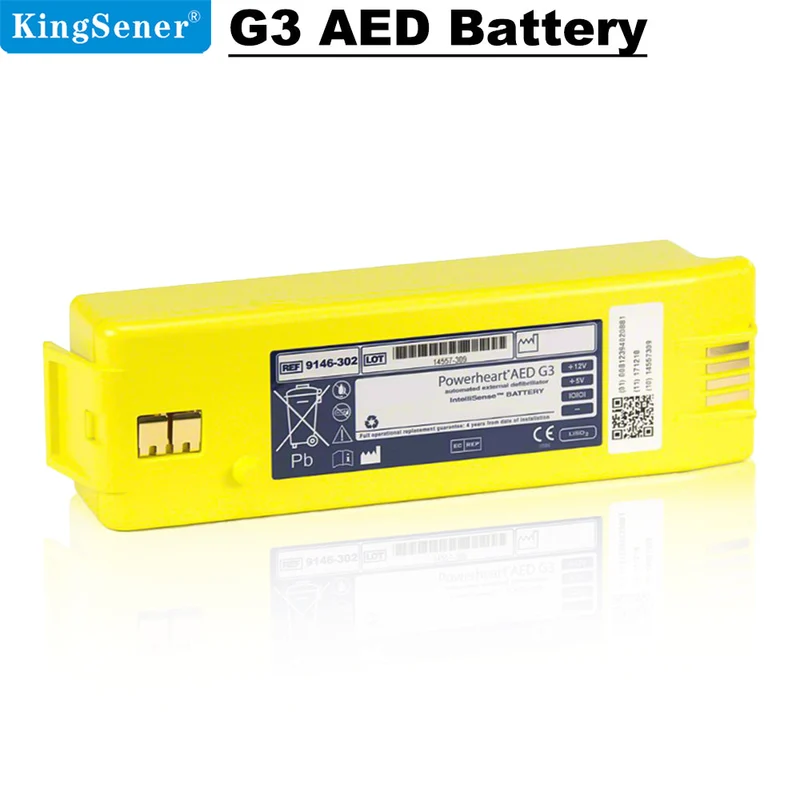

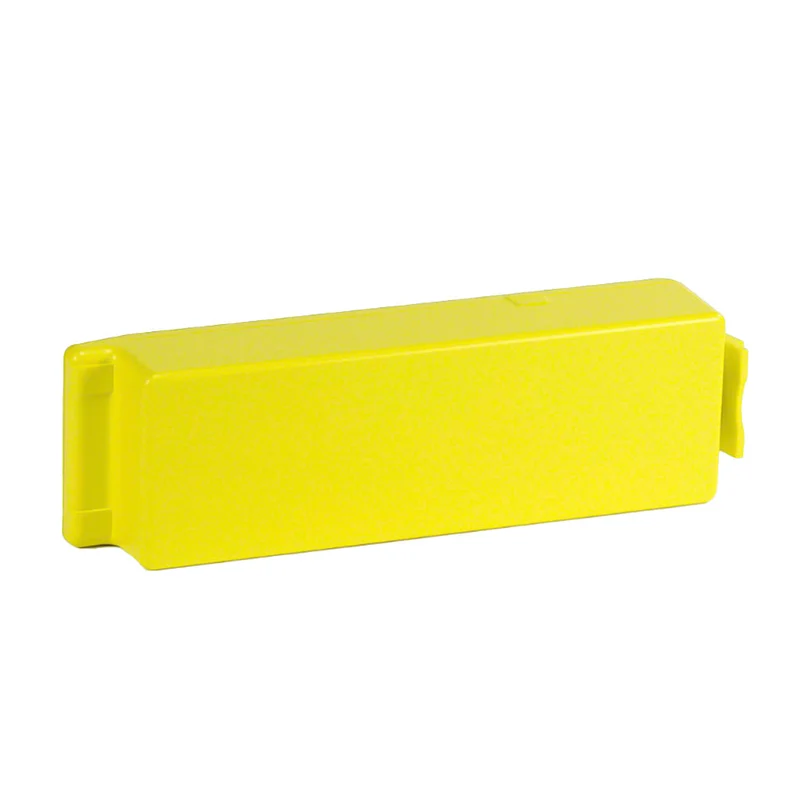

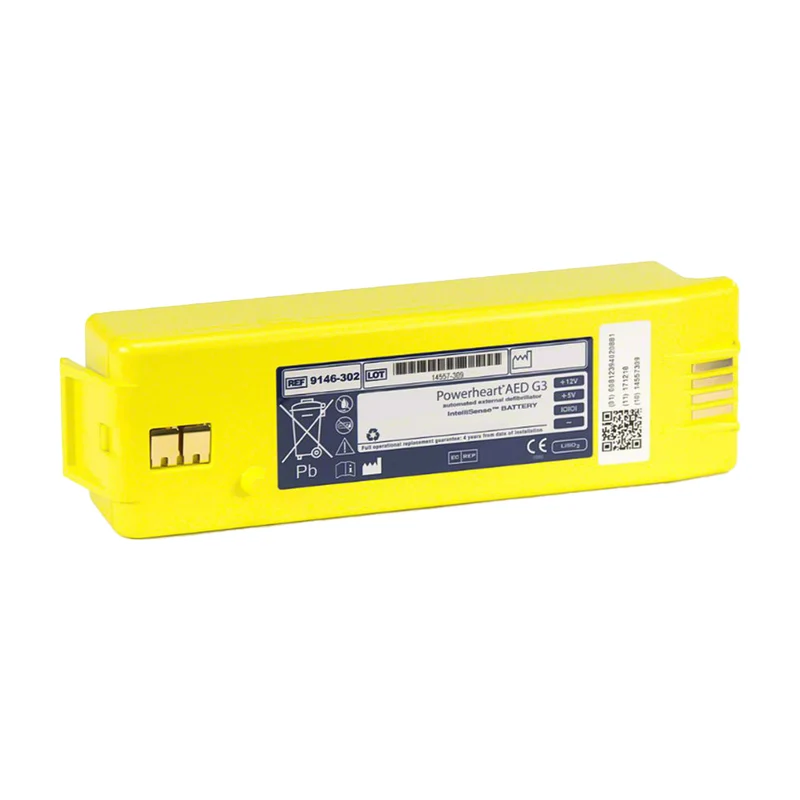

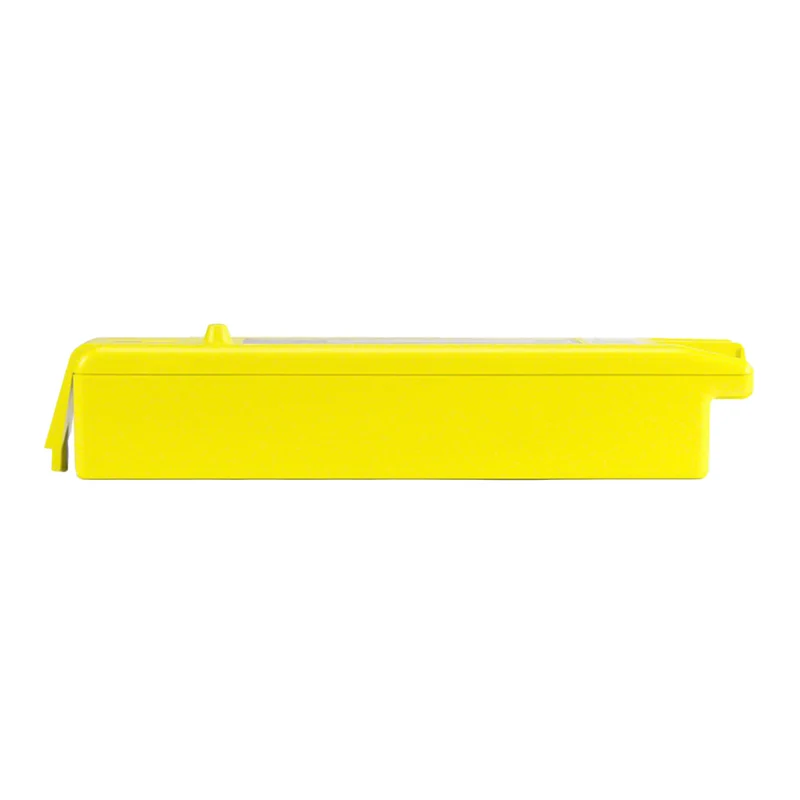

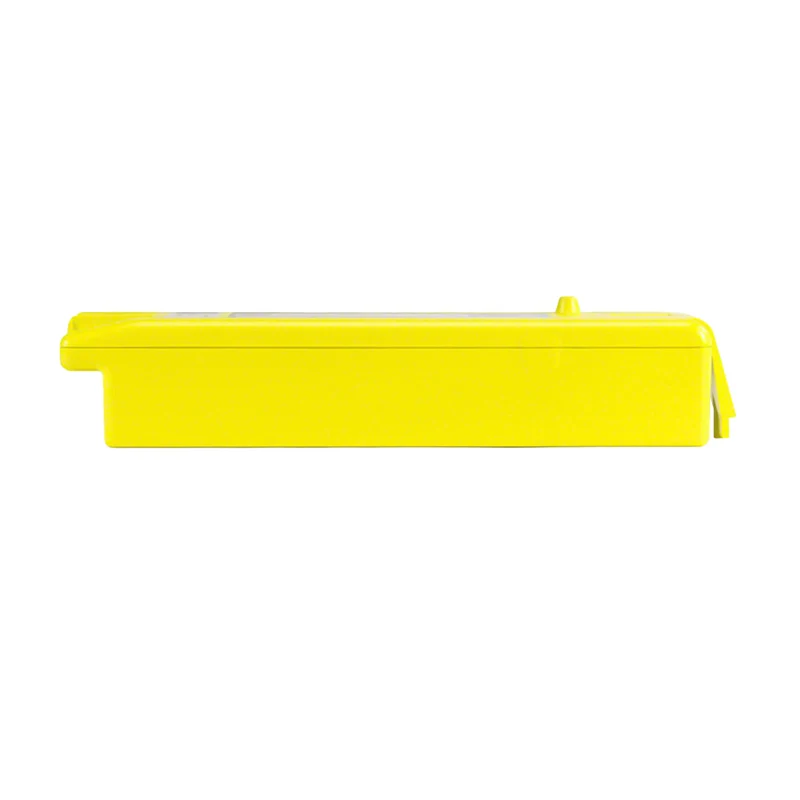

Cardiac Science Powerheart AED G3 Plus Battery 9146-001 12V

Product Overview

The 9146-001 is a medical-grade 12V, 7.5Ah (90Wh) Li-SO2 replacement battery for the Cardiac Science Powerheart AED G3, G3 Plus and G3 Elite series defibrillators. It replaces part numbers 9146, 9146-001, 9146-002, 9146-102, 9146-202 and 9146-302, delivering life-critical standby power so your AED is always rescue-ready. This is a long-life Lithium Sulfur Dioxide primary battery that is not rechargeable. Ships 100% brand new with a 1-year warranty.

Specifications

Attribute	Details
Standard Model	9146-001
Technology	Lithium Sulfur Dioxide (Li-SO2)
Voltage	12V
Capacity	7.5Ah / 90Wh
Chemistry	Non-Rechargeable (Long-life)
Cell	Made in China, high quality guarantee
Condition	Replacement Battery (100% Brand New)
Warranty	1-year warranty

Replace Part Numbers

• 9146
• 9146-001
• 9146-002
• 9146-102
• 9146-202
• 9146-302

Compatible Models

For Cardiac Science Powerheart AED Series

• For Cardiac Science Powerheart AED G3 Plus
• For Cardiac Science Powerheart AED G3 Elite
• For Cardiac Science G3 Series Automated External Defibrillator

FAQ

Is the 9146-001 battery rechargeable?

No. It is a long-life Lithium Sulfur Dioxide (Li-SO2) primary battery designed for years of standby power. Do not attempt to recharge it.

Which AED models use this battery?

It powers the Cardiac Science Powerheart AED G3, G3 Plus and G3 Elite series defibrillators and cross-references the whole 9146 part-number family.

Which part numbers does the 9146-001 replace?

It replaces 9146, 9146-001, 9146-002, 9146-102, 9146-202 and 9146-302.

How do I know when to replace the battery?

Your Powerheart G3 issues a low-battery alert or shows a red status indicator when the pack no longer holds enough power for a rescue. For maximum readiness replace it every 4-5 years.
