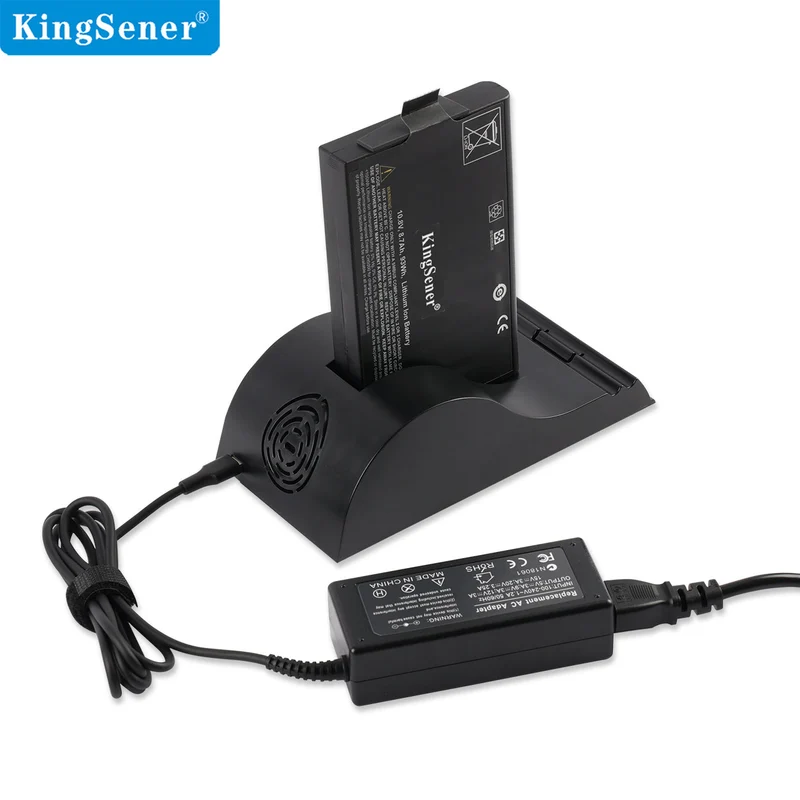

CH4000 Smart Battery Charger for Inspired Energy NI2020HD24 NI2020IK24

Product Overview

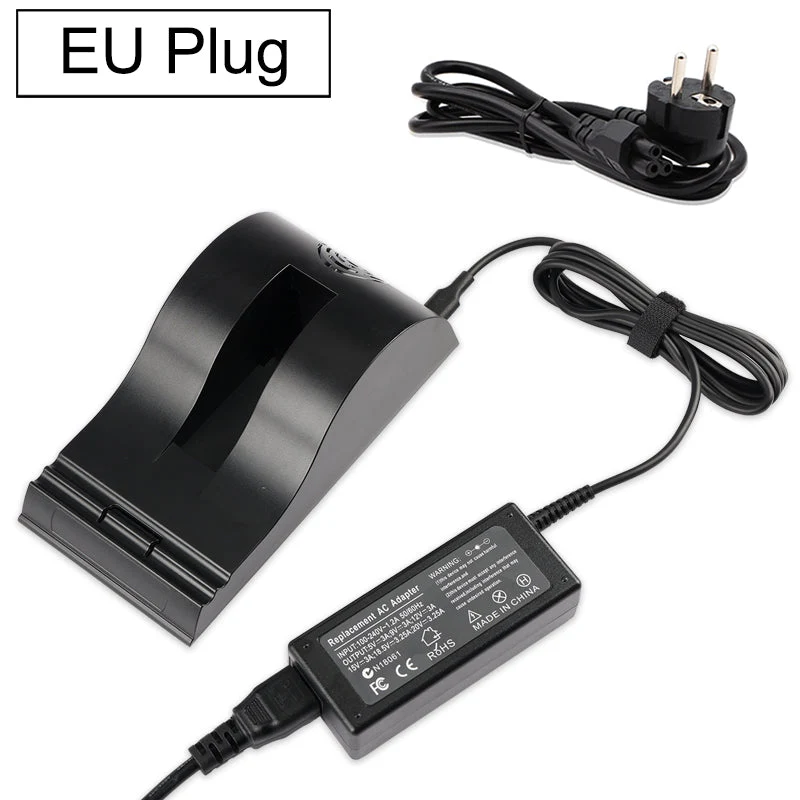

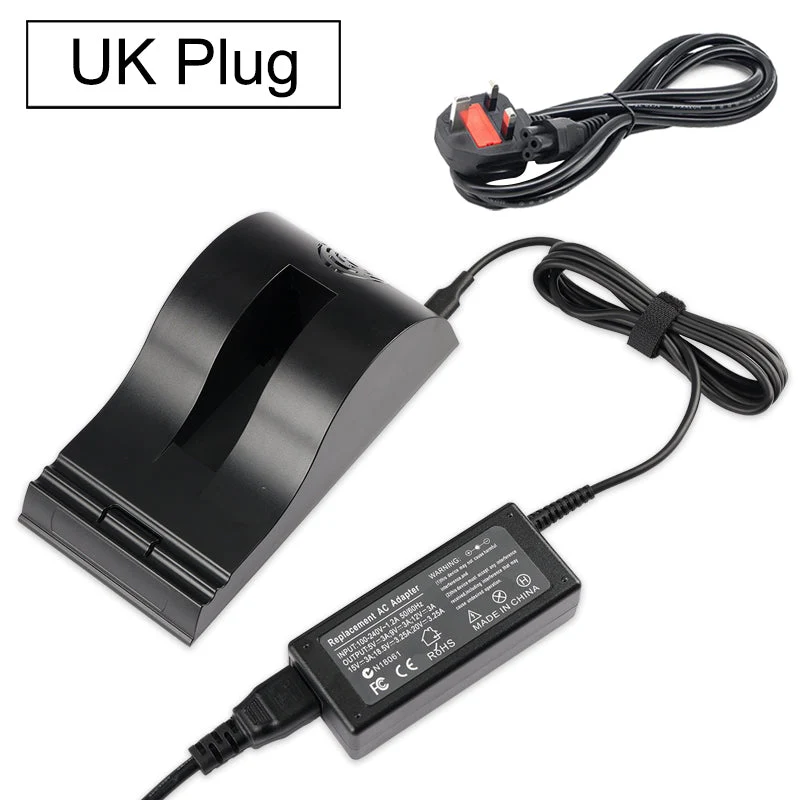

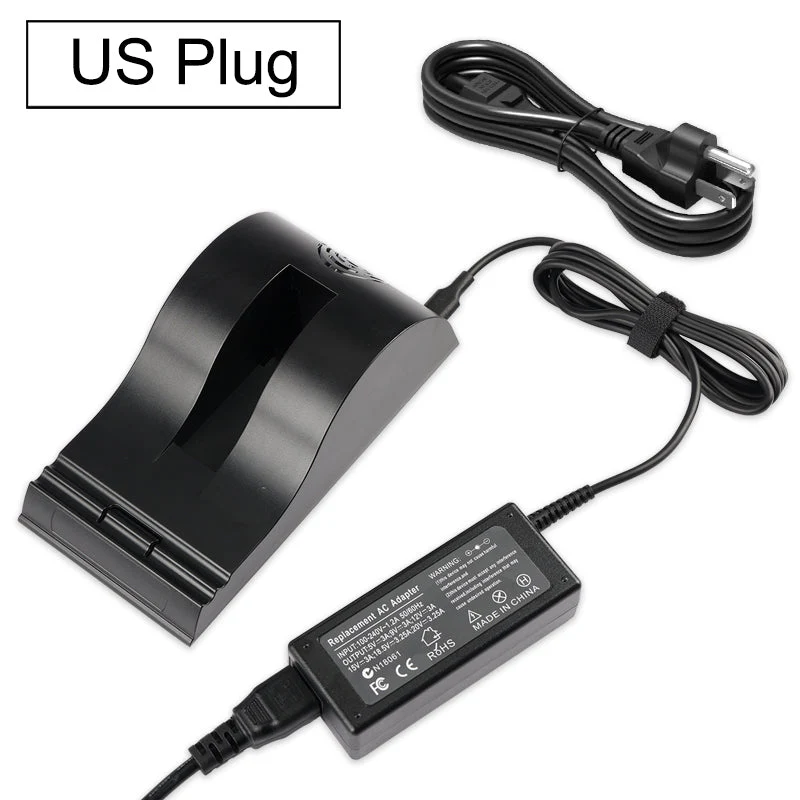

The CH4000 is a professional medical-grade external smart battery charger rated DC 12-20V / 3A for the Inspired Energy NI2020HD24 and NI2020IK24 high-capacity packs. SBS / SMBus data sync with the battery BMS prevents overcharge degradation and keeps OTDR testers, monitors and POC devices running. Ships brand new with a 1-year warranty.

Specifications

Attribute	Details
Standard Model	CH4000
Product Type	External Smart Battery Charger / Desktop Base
Input	DC 12-20V / 3A
Output	Precision Voltage & Current Control per SBS / SMBus
Interface	Smart 5-pin Battery Connector (SMBus)
Protection	Overcharge, Overcurrent & Thermal Cut-off
Weight	0.21kg (Base Only)
Color	Black
Condition	Brand New Smart Charger Base (1-year warranty!)

Replace Part Numbers

• CH4000
• CH5000
• NI2020HD24
• NI2020IK24
• NI2020ED
• NI2020OL24
• NI2020TS24
• NI2020A24
• NI2020
• NL2020ED
• NL2024HD
• NI2040
• ND2054
• DR202
• DR202S
• ME202C
• ME202A
• BP3S3P3450P-01
• SM201-6
• FTB-100/300/400

Compatible Models

For Inspired Energy NI2020 Series

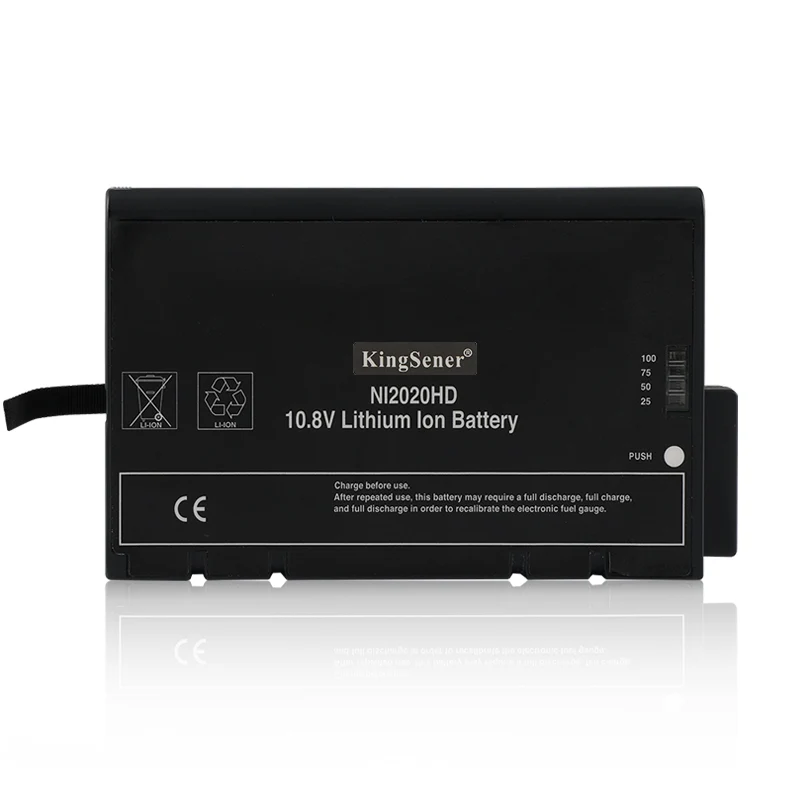

• Inspired Energy NI2020HD24
• NI2020IK24
• NI2020ED
• NI2020OL24
• NI2020TS24
• NI2020A24

For Inspired Energy NL / NI2040 / ND Series

• NL2020ED
• NL2024HD
• NI2040
• ND2054

For Other Inspired Energy Packs

• DR202
• DR202S
• ME202C
• ME202A
• BP3S3P3450P-01

For Professional Test & Medical Equipment

• SM-ENERGY SM201-6
• EXFO FTB-100/300/400
• Olympus OTDR Batteries
• Oxlife Independence POC

Not all compatible device models are listed here. Confirm the original battery model on your device, or contact us online with any compatibility questions.

FAQ

Why use an external charger instead of the host device?

A dedicated CH4000 base lets you swap and charge spare packs without taking medical or industrial equipment offline, protecting uptime for critical diagnostic tasks.

Does it protect battery health?

Yes. Through the SBS / SMBus interface the CH4000 reads the battery BMS to deliver a precise charge cycle, with overcharge and thermal cut-off and LED status feedback.

Which part numbers does this charger support?

It charges NI2020HD24, NI2020IK24, NI2020ED, NI2020OL24, NI2020TS24, NI2020A24, NL2020ED, NL2024HD, NI2040, ND2054, DR202, DR202S, ME202C, ME202A and BP3S3P3450P-01.
