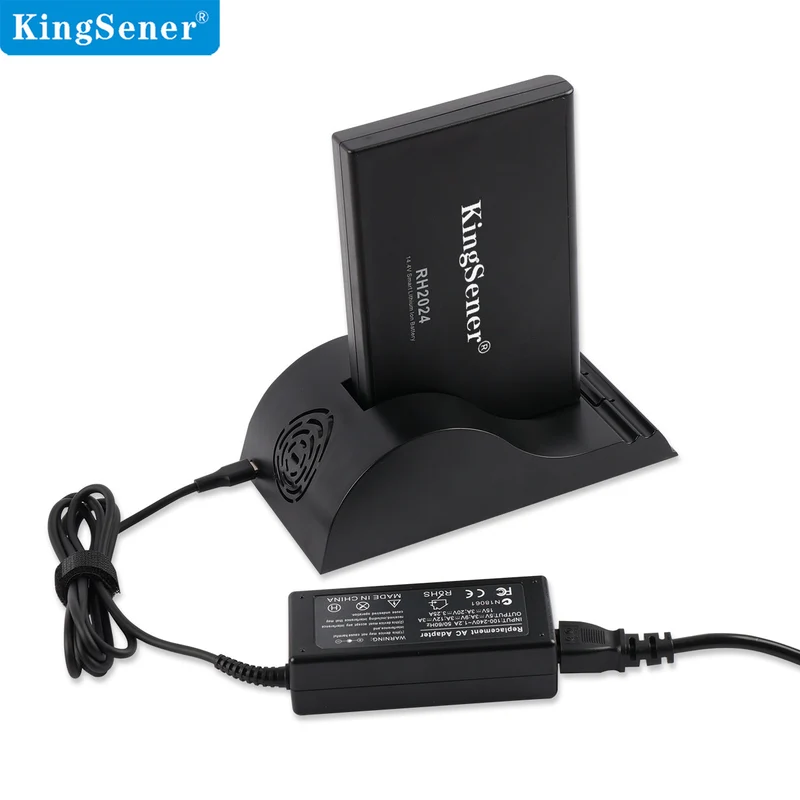

CH4000 Smart Battery Charger for Inspired Energy RH2024 RH2024HD

Product Overview

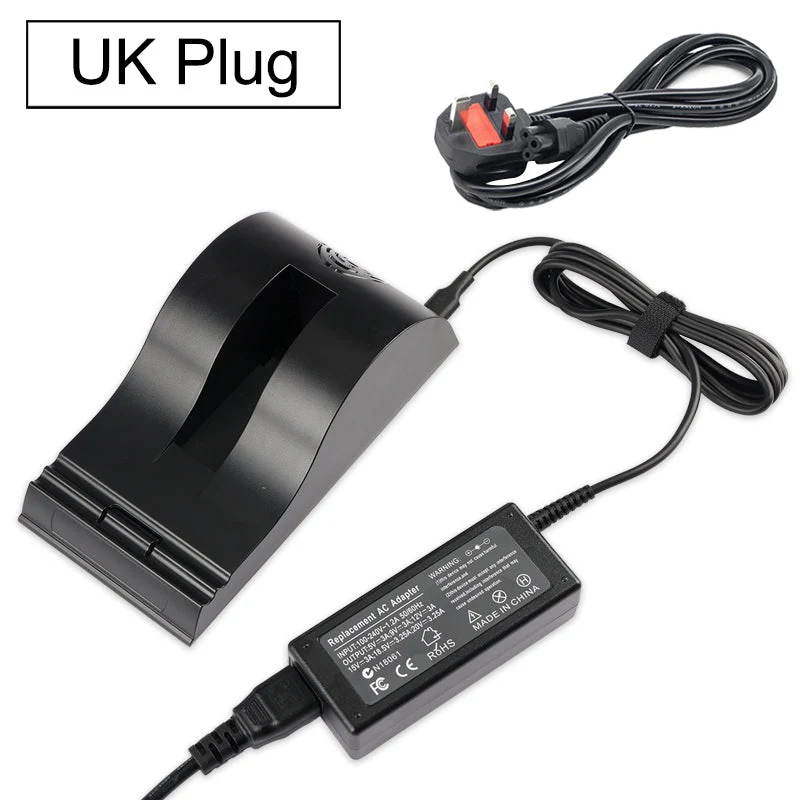

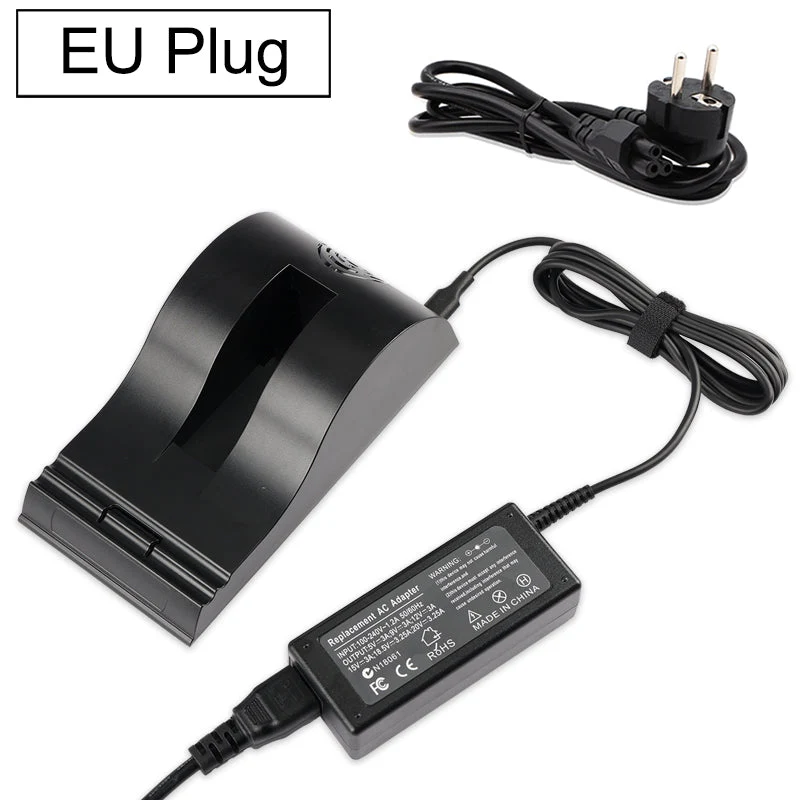

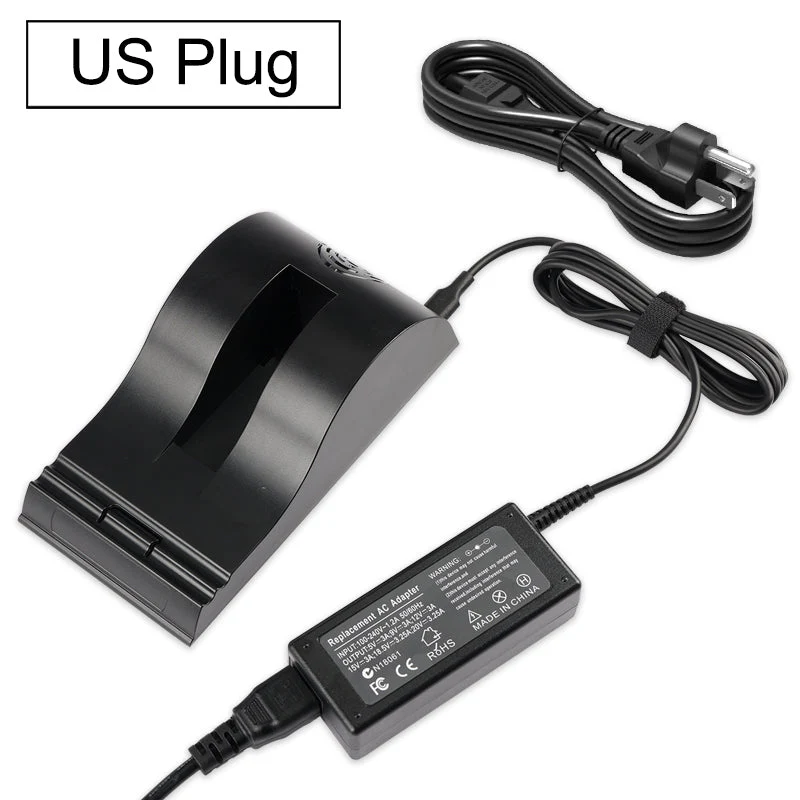

The CH4000 is a professional-grade external smart battery charger rated DC 12-20V / 3A for the Inspired Energy RH2024 and RH2024HD high-capacity packs. SBS / SMBus communication with the battery BMS delivers precision charging and long-term cell health. Ships brand new in black with a 1-year warranty.

Specifications

Attribute	Details
Standard Model	CH4000
Product Type	External Smart Battery Charger / Desktop Base
Input	DC 12-20V / 3A
Output	Precision Voltage & Current Control per SBS / SMBus
Interface	Smart 5-pin Battery Connector (SMBus)
Protection	Overcharge, Overcurrent & Thermal Cut-off
Weight	0.21kg (Base Only)
Color	Black
Condition	Brand New Smart Charger Base (1-year warranty!)

Replace Part Numbers

• CH4000
• CH5000
• RH2024
• RH2024HD
• RH2024HD34
• RH2024QE34
• NI2020
• NL2024
• ND2054
• NI2040
• DR202
• ME202

Compatible Models

For Inspired Energy RH2024 Series

• Inspired Energy RH2024
• Inspired Energy RH2024HD
• Inspired Energy RH2024HD34
• Inspired Energy RH2024QE34

For Inspired Energy NI2020 / NI2040 Series

• Inspired Energy NI2020 series
• Inspired Energy NI2040 series

For Inspired Energy NL2024 / ND2054 Series

• Inspired Energy NL2024 series
• Inspired Energy ND2054 series

For Inspired Energy DR202 / ME202 Series

• DR202 series
• ME202 series

Not all compatible device models are listed here. Confirm the original battery model on your device, or contact us online with any compatibility questions.

FAQ

Can I use this charger for the high-density RH2024HD?

Yes. The CH4000 is fully compatible with both the standard RH2024 and the high-density RH2024HD, delivering a safe, full charge cycle with overcharge protection.

Does the charger talk to the battery BMS?

Absolutely. It uses the 5-pin SMBus interface to sync with the battery management system, optimising voltage and current in real time, with LED status feedback.

Which part numbers are supported?

RH2024, RH2024HD, RH2024HD34, RH2024QE34, NI2020 series, NL2024 series, ND2054 series, NI2040 series, DR202 series and ME202 series packs.
