CH4000 Smart Battery Charger for Inspired Energy RRC2020 RRC2020-L

Product Overview

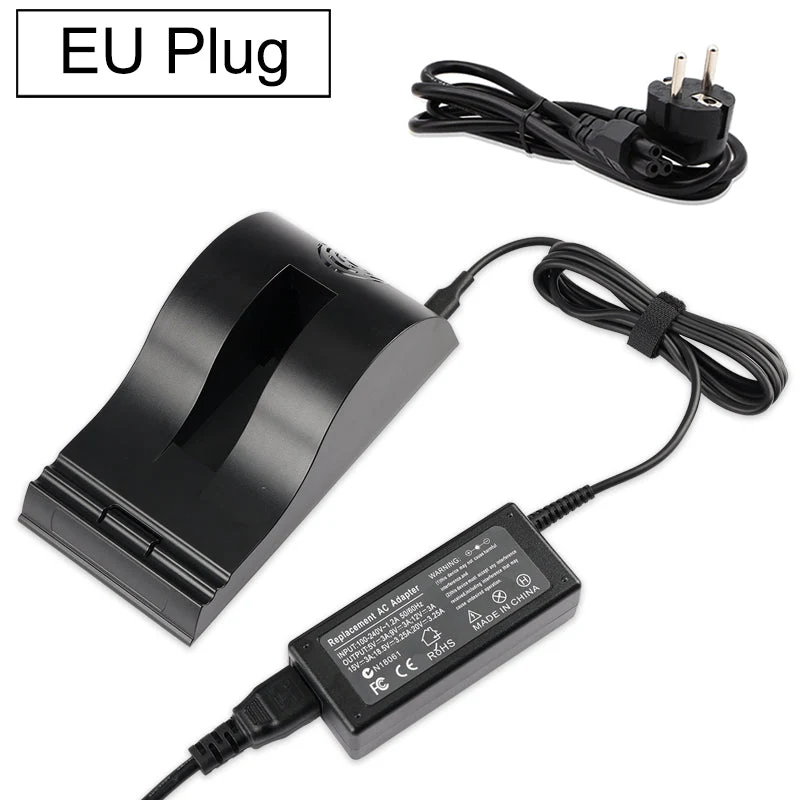

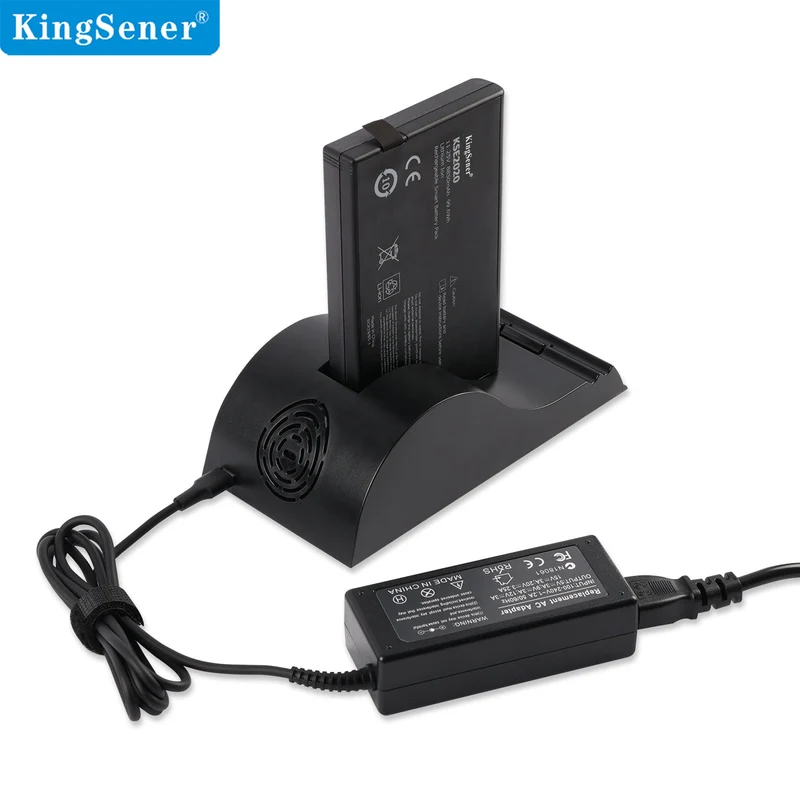

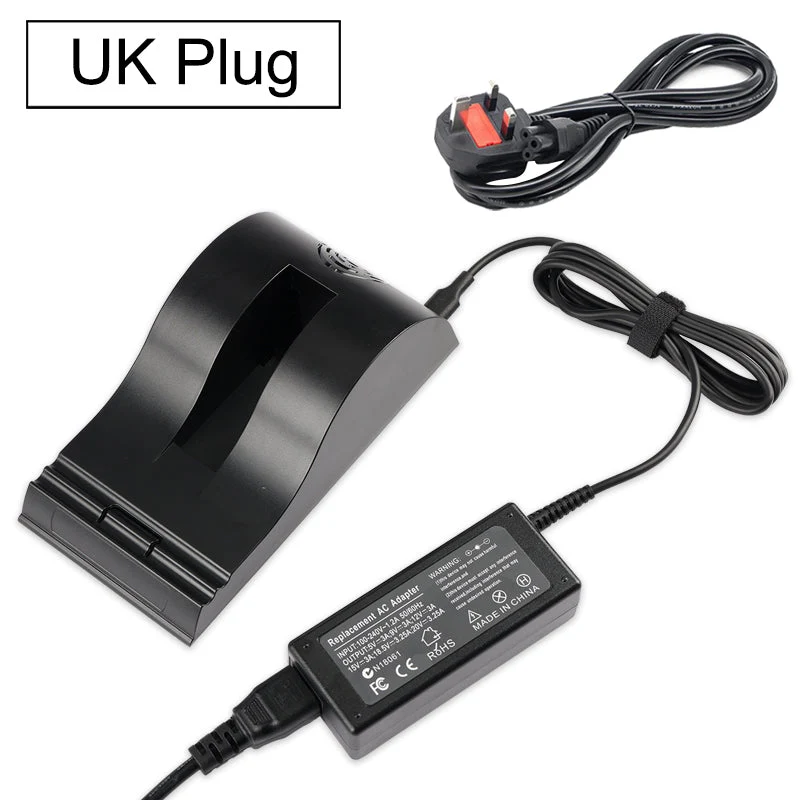

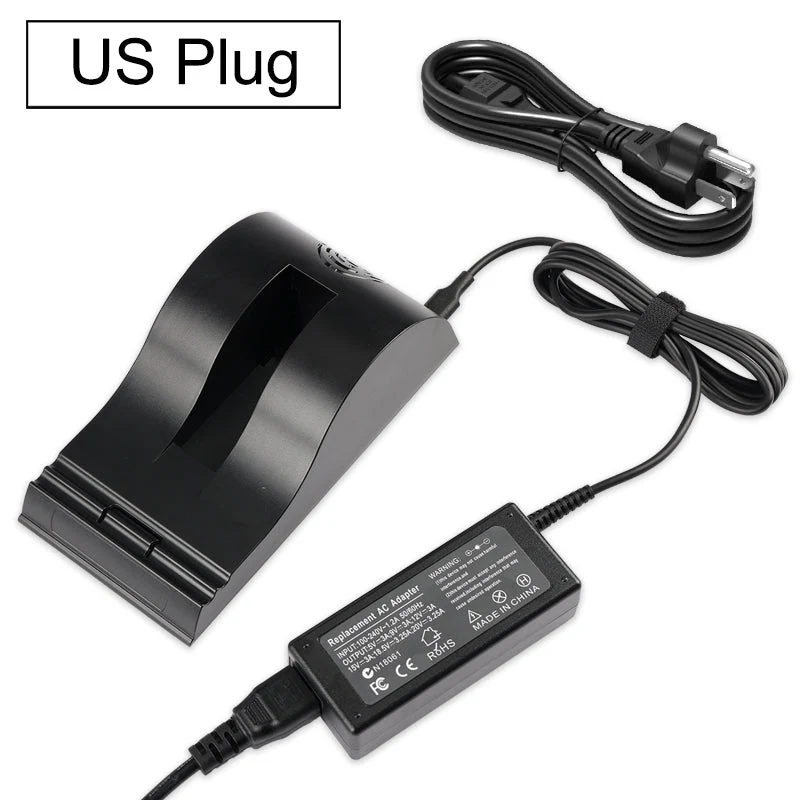

The CH4000 is a professional external smart battery charger that restores power to professional equipment running Inspired Energy RRC2020 and RRC2020-L series batteries. It provides a stable, safe charge at DC 12-20V / 3A using intelligent SMBus synchronisation for portable diagnostic and monitoring systems. Integrated LED indicators show the charging status at a glance and the SBS 1.1 / SMBus 1.1 link manages the full RRC family, including RRC2040, RRC2054 and RRC2057 packs. Ships brand new with a 1-year warranty.

Specifications

Attribute	Details
Standard Model	CH4000
Input	DC 12-20V / 3A
Compatible Battery Family	Inspired Energy RRC2020 series
Charging Interface	Integrated SMBus / SBS 1.1 Controller
Protection	Thermal cut-off & overvoltage protection
Place of Origin	Made in China
Condition	Brand New (100% New, 1-year warranty)

Replace Part Numbers

• CH4000
• CH5000
• RRC2020
• RRC2020-L
• RRC-2020
• RRC2040
• RRC2040-2
• RRC2054
• RRC2054-2
• RRC2057
• RRC2024

Compatible Models

For Inspired Energy RRC Series

• RRC2020
• RRC2020-L
• RRC-2020
• RRC2040
• RRC2040-2
• RRC2054
• RRC2054-2
• RRC2057
• RRC2024

For Other Inspired Energy Families

• Inspired Energy NI2020 series
• Inspired Energy NL2024 series

Notice: Not all compatible models are listed or included here. Please check the original model number on your equipment, and contact us online if you have any question about compatibility.

FAQ

Is this charger compatible with RRC series batteries?

Yes. It is the standard external charging solution for various RRC smart batteries used in portable diagnostic and monitoring systems, including RRC2020, RRC2040, RRC2054 and RRC2057.

Does the CH4000 support the RRC2020-L variant?

Yes. Both the RRC2020 and RRC2020-L (RRC-2020) are fully supported for safe and complete charging cycles.

What are the benefits of intelligent SMBus synchronisation?

SMBus lets the charger read the battery internal data and manage the charging cycle precisely, protecting the cells and maximising usable capacity.

What input voltage does the charger need?

It requires a DC 12-20V / 3A input and features integrated LED charging indicators.
