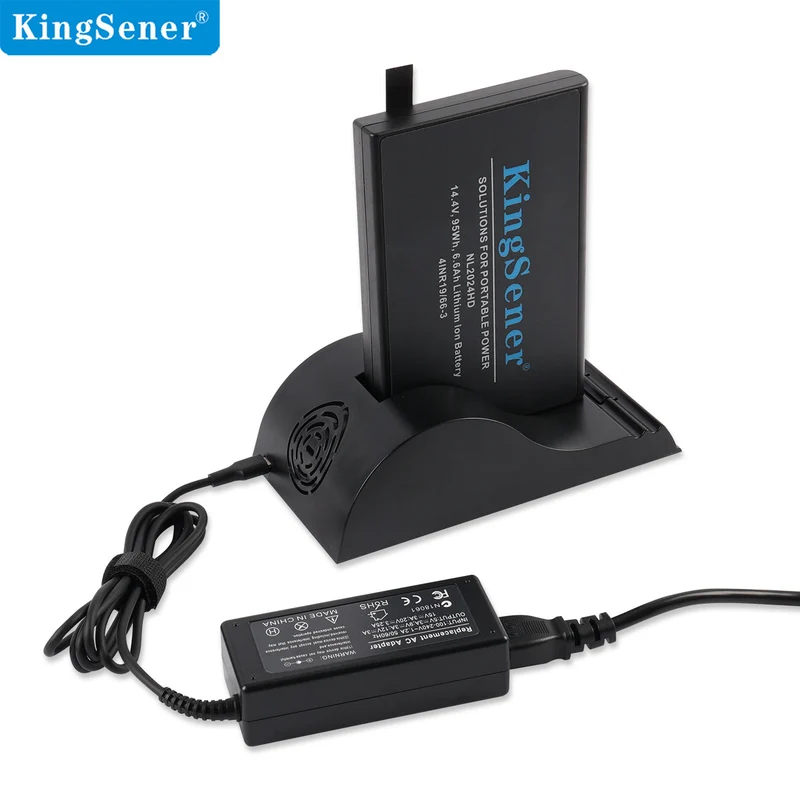

CH4000 Smart Charger for Inspired Energy NL2024HD NL2024

Product Overview

The CH4000 is a premium external smart battery charger rated DC 12-20V / 3A for the Inspired Energy NL2024HD and NL2024 high-capacity packs. SBS / SMBus data sync keeps every charge cycle precise and helps reduce heat stress on your host diagnostic device. Ships brand new in black with a 1-year warranty.

Specifications

Attribute	Details
Standard Model	CH4000
Product Type	External Smart Battery Charger / Desktop Base
Input	DC 12-20V / 3A
Output	Precision Voltage & Current Control per SBS / SMBus
Interface	Smart 5-pin Battery Connector (SMBus)
Protection	Overcharge, Overcurrent & Thermal Cut-off
Weight	0.21kg (Base Only)
Color	Black
Condition	Brand New Smart Charger Base (1-year warranty!)

Replace Part Numbers

• CH4000
• CH5000

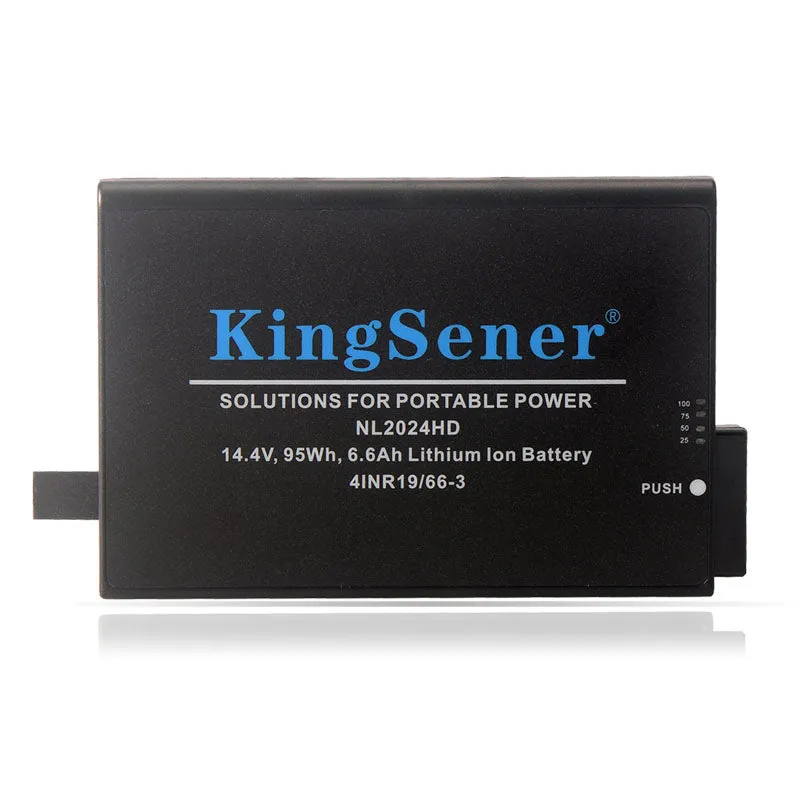

• NL2024HD
• NL2024
• NL2024HU22
• NL2024HD22
• NL2024ED22
• NI2020
• NI2040
• ND2054

Compatible Models

For Inspired Energy NL2024 Series

• Inspired Energy NL2024HD
• Inspired Energy NL2024
• Inspired Energy NL2024HU22
• Inspired Energy NL2024HD22
• Inspired Energy NL2024ED22

For Inspired Energy NI2020 / NI2040 Series

• Inspired Energy NI2020 series
• NI2040 series

For Inspired Energy ND2054 Series

• ND2054 series

Not all compatible device models are listed here. Confirm the original battery model on your device, or contact us online with any compatibility questions.

FAQ

Does this charger fit the NL2024HD22 model?

Yes. The CH4000 is the designated external charging base for the whole NL2024 range, including HD, HU, HD22 and ED22 variants used in portable diagnostic equipment.

Why charge externally rather than inside the device?

An external CH4000 base reduces heat stress on your primary device and lets you keep multiple fully charged packs ready for long field sessions.

Which part numbers are supported?

NL2024HD, NL2024, NL2024HU22, NL2024HD22, NL2024ED22, NI2020 series, NI2040 series and ND2054 series packs.
