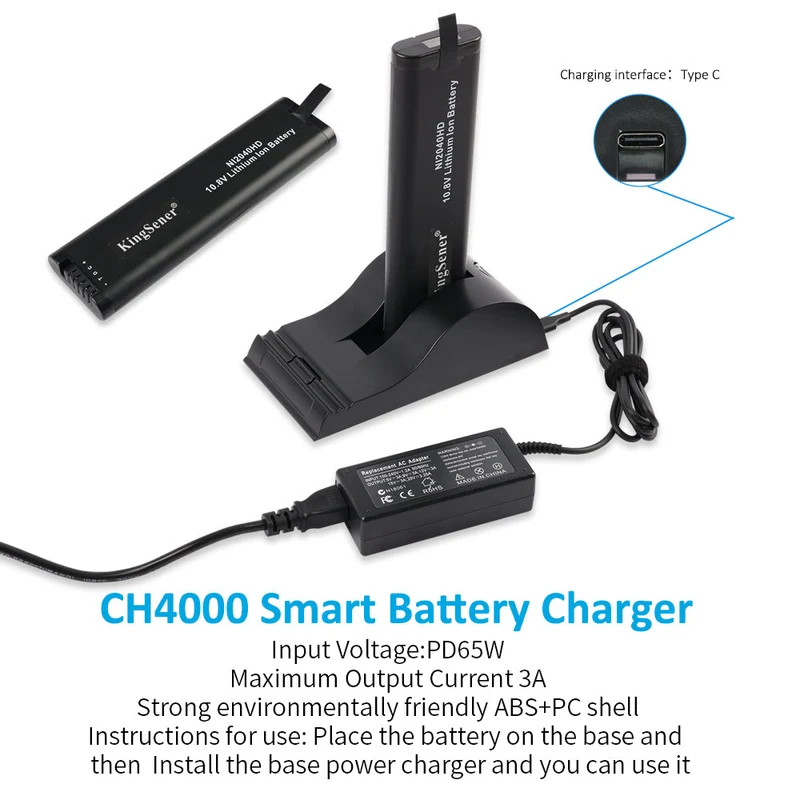

CH4000 Smart Desktop Charger for Inspired Energy NI2040PH NI2040XD

Product Overview

The CH4000 is a high-performance external smart battery charger rated DC 12-20V / 3A for the Inspired Energy NI2040PH and NI2040XD specialty packs. SBS / SMBus data sync with the battery BMS restores mission-critical power for field testers and diagnostic instruments. Ships brand new in black with a 1-year warranty.

Specifications

Attribute	Details
Standard Model	CH4000
Product Type	External Smart Battery Charger / Desktop Base
Input	DC 12-20V / 3A
Output	Precision Voltage & Current Control per SBS / SMBus
Interface	Smart 5-pin Battery Connector (SMBus)
Protection	Overcharge, Overcurrent & Thermal Cut-off
Weight	0.21kg (Base Only)
Color	Black
Condition	Brand New Smart Charger Base (1-year warranty!)

Replace Part Numbers

• CH4000
• CH5000
• NI2040PH
• NI2040XD
• NI2040AG
• NI2040ED
• NI2040JD29
• NI2040SL24
• DR202
• ND2054
• SM201-6
• FTB-100/300/400

Compatible Models

For Inspired Energy NI2040 Series

• Inspired Energy NI2040PH
• Inspired Energy NI2040XD
• Inspired Energy NI2040AG
• Inspired Energy NI2040ED
• Inspired Energy NI2040JD29
• Inspired Energy NI2040SL24

For Professional Test Equipment

• EXFO FTB-100/300/400
• SM-ENERGY SM201-6

For Other Inspired Energy Series

• DR202 series
• ND2054 series

Not all compatible device models are listed here. Confirm the original battery model on your device, or contact us online with any compatibility questions.

FAQ

Does this charger support the NI2040XD used in field testers?

Yes. It is the designated external charging base for the NI2040XD and other high-reliability smart packs used in portable diagnostic and test instrumentation.

Why is SMBus communication important for charging?

SMBus lets the charger read the battery BMS health and capacity, so each cycle is efficient and safe while extending overall cell life, with LED status feedback.

Which part numbers are supported?

NI2040PH, NI2040XD, NI2040AG, NI2040ED, NI2040JD29, NI2040SL24, EXFO FTB-100/300/400, SM-ENERGY SM201-6, DR202 series and ND2054 series packs.
