EcoFlow STREAM 5000 complete set with 4–8 × 500 W solar modules

The EcoFlow STREAM 5000 complete set with 500W solar modules It combines PV generation, LFP storage, and smart metering. Depending on the variant, it comprises four, six, or eight modules with a total output of 2.000 to 4.000 W and a storage capacity of 5, 10, or 15 kWh. Four MPPT inputs, up to 5.000 W PV input, and optional mounting packages allow for adaptation to the available space, consumption, and installation location.

Delivery

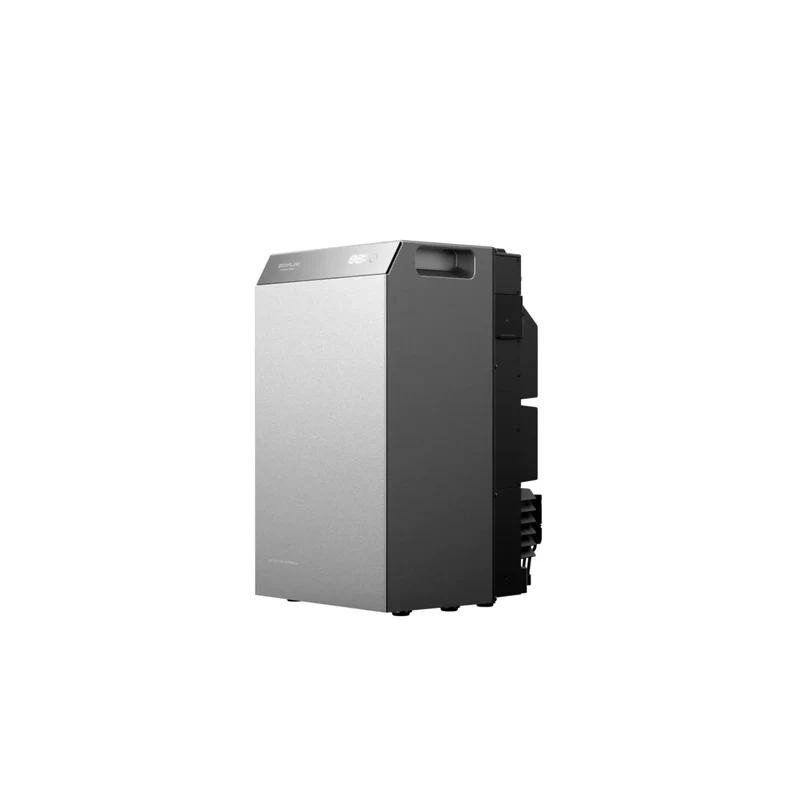

1× EcoFlow STREAM 5000
1× EcoFlow Smart Meter Dual CT
0×, 1× or 2× EcoFlow STREAM extension batteries, depending on the selected 5/10/15 kWh variant
4×, 6× or 8× Jollywood JW-HD108N-R2 Solar module with 500 W, depending on the variant
4×, 6× or 8× Kseng mounting kit for balcony, garden/flat roof or tile roof, depending on the number of modules and only when selecting a variant with brackets
Connection and safety documentation as per manufacturer's package

Produktvorteile

-- 5 to 15 kWh storage: Selectable capacity for different consumption profiles.

-- 2.000 to 4.000 W module power: Four, six or eight 500W modules depending on the variant.

-- Four MPPT inputs: They support flexible deployment of suitable PV strings.

-- Smart meter regulation: OASIS 3.0 aligns energy flows with the measured household consumption values.

-- Flexible mounting options: Variants available for balconies, gardens/flat roofs and roofs.

Compatibility

The included solar panels, expansion batteries, and mounting kits must exactly match the selected product variant. Existing substructure, roof covering, railings, or installation surface must meet load-bearing capacity and fastening requirements. Only use additional components if their electrical specifications, connector type, and manufacturer's approval are compatible.

Technical information

-- Basic storage capacity: 5,024 kWh

-- Total capacity depending on the variant: 5, 10 or 15 kWh

-- PV input: up to 5.000 W via four MPPTs

-- AC output: up to 3.000 W, depending on configuration and installation

-- Cell chemistry: LiFePO4

-- Storage protection rating: IP65

-- Operating temperature: −20 °C to 55 °C

-- Solar modules: 500 W, 22,55% efficiency, Stäubli MC4

Variants and assembly

First, select the desired storage capacity, then four, six, or eight solar panels, and finally the appropriate mounting method. A version without a mounting system does not include a substructure. For roof mounting, the roof type and mounting points must be checked beforehand; garden and flat roof kits require a sufficiently load-bearing, wind-resistant surface.

Matching accessories and related products

-- EcoFlow STREAM extension battery 5 kWh: suitable capacity expansion; currently, the individual item may be temporarily unavailable despite an active product page.

-- EcoFlow STREAM AC Pro auxiliary battery 1.920 Wh: alternative STREAM storage solution, not to be understood as a direct 5 kWh extension of this set.

Why Mini Power

In a diverse environment Complete set The number of modules is crucial. Storage capacity and the mounting system must fit together clearly. Mini Power Therefore, it clearly presents the scope of delivery for each selection level and separates the main unit, extension batteries, modules, and optional mounting hardware. The linked STREAM products This helps with comparison without portraying different battery types as interchangeable. For questions about... suitable variant supports Mini Power when compiling based on area, consumption and installation route.

Frequently asked questions

-- How many solar panels are included in the set?

Depending on the chosen variant, four, six or eight modules, each with 500 W.

-- Is the mounting system always included?

No. It is only included if a variant with balcony, garden/flat roof or roof mounting is selected.

-- Who installs smart meters and AC connections?

These tasks must be carried out by a qualified electrician, according to the specific configuration.
