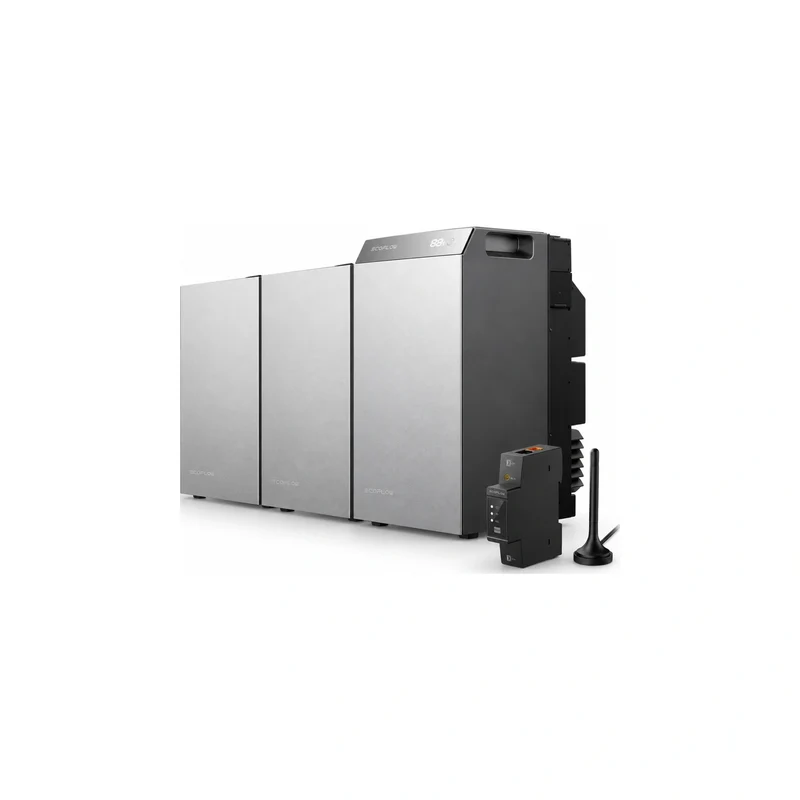

EcoFlow STREAM AC 5000 + 2x EcoFlow STREAM expansion battery + Smart Meter

The EcoFlow STREAM AC 5000 Set This system connects a main battery to two expansion batteries and the Smart Meter Dual CT. A total nominal storage capacity of 15.072 Wh is available. This AC-coupled solution complements an existing photovoltaic system without direct module connections to the storage unit. The package supports demand-based use of stored energy in the household. Please check the connection requirements.

Delivery

1× EcoFlow STREAM AC 5000 (5.024 Wh)
2× EcoFlow STREAM extension battery 5000 (5.024 Wh each)
1× EcoFlow Smart Meter Dual CT with associated accessories
1× Power cable
5× wall brackets
1× screw M6× 14
6x expansion plugs
6× screws ST5,5× 32
4× locking brackets
16× screws M4× 12
3× Installation instructions for the storage devices
3× Warranty card for the storage devices

Produktvorteile

-- 15.072 Wh in the offered set: The nominal capacity consists of 3 storage modules, each with 5.024 Wh. Usable energy and runtime depend on load, state of charge, and operating conditions.

-- AC-coupled retrofit: Existing PV generation can be integrated via a suitable inverter. This is not included in the package.

-- Smart Meter Dual CT included: The measuring device records energy flows for demand-based storage control. It is professionally installed in the electrical distribution system.

-- 2 additional batteries included: The local expansion of this main unit is exhausted with two additional batteries. The second additional battery increases the capacity, but not the inverter's power output.

-- LiFePO₄ and IP65: The storage devices use LFP cells and are protected against dust and water jets. A well-ventilated, suitable installation location is still required.

-- Control via EcoFlow app: The STREAM system allows monitoring of battery charge level, energy flows, and operating modes. The availability of individual functions depends on the configuration and supported services.

Compatibility

The STREAM AC 5000 is integrated into a suitable existing PV system on the AC side. It does not have direct PV inputs. The two included STREAM 5000 expansion batteries are connected according to the manufacturer's instructions. The Smart Meter Dual CT is included in the package. Planning and installation in the electrical distribution system, as well as the selection of the permissible connection capacity, must be carried out by a qualified electrician.

Matching accessories and related products

• EcoFlow STREAM series solar battery STREAM 5000 with 1x smart meter
• EcoFlow STREAM extension battery 5 kWh
• EcoFlow STREAM AC 5000 + EcoFlow STREAM extension battery + Smart Meter (discount)

Why Mini Power

At Mini Power you can see which parts are for the AC-coupled retrofit Included and what equipment must already be present. This offer combines STREAM AC 5000, two additional batteries and Smart Meter Dual CTHowever, it does not include a PV inverter. Separate information on nominal capacity, connections, and scope of delivery facilitates transparent planning. Please consult your specialist installer for integration details and refer to the manufacturer's documentation. Our team is available to answer any questions you may have regarding the offered package and delivery information.

Frequently asked questions

How much storage capacity will I receive?
The offered package has a nominal capacity of 15.072 Wh. This value is derived from 3 × 5.024 Wh and is not equivalent to the usable AC energy.

Are solar panels included?
No. Solar panels and their mounting brackets are not included in this storage package.

Does the set power the entire house during a power outage?
No, a complete home backup power system is not included. In island mode, suitable appliances can be powered via the designated AC output, provided sufficient charge is available.
