Elios Contrack A+B | Container Racking for 2 Solar Panels

For adjustable tilt (0°–35°), add the optional ContrackD component.

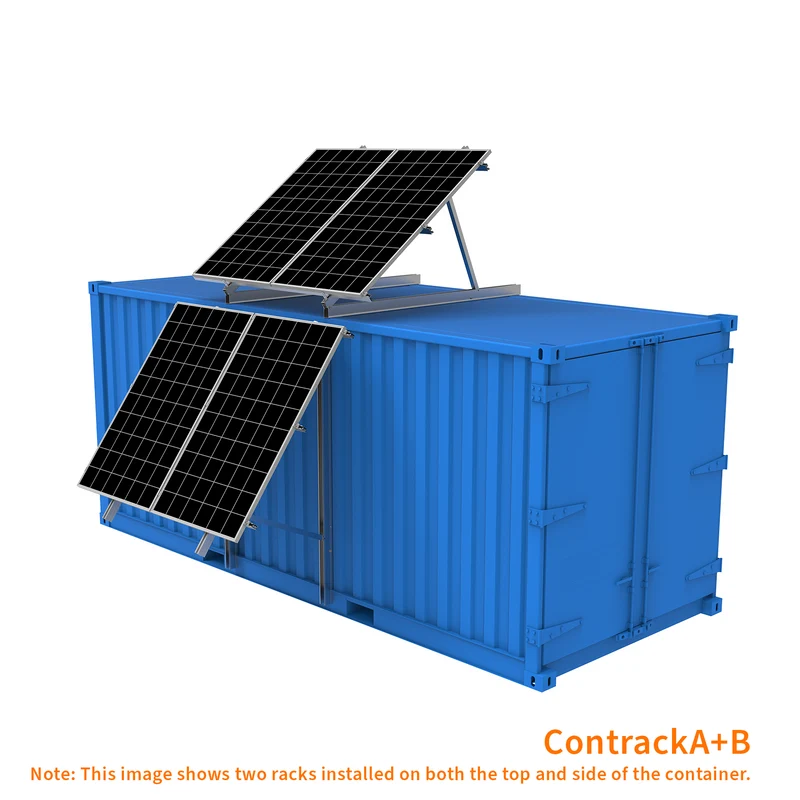

The Elios Contrack A+B is a high-performance aluminum racking system engineered for mounting two solar panels at a fixed 35-degree angle on shipping containers, cargo boxes, or mobile storage units. Optimized for both rooftop and sidewall installation, this modular bracket system offers a space-efficient and structurally sound solution for off-grid and mobile solar applications.

Compatible with standard 60/120-cell and 72/144-cell solar panels, including the Elios Voltaic 600HC-BF, 600W bifacial solar panel.

Crafted from high-strength aluminum alloy, the Contrack A+B is built to withstand demanding outdoor conditions while reducing installation time and complexity. Its compact, container-compatible design makes it ideal for rapid deployment and long-term reliability in the field.

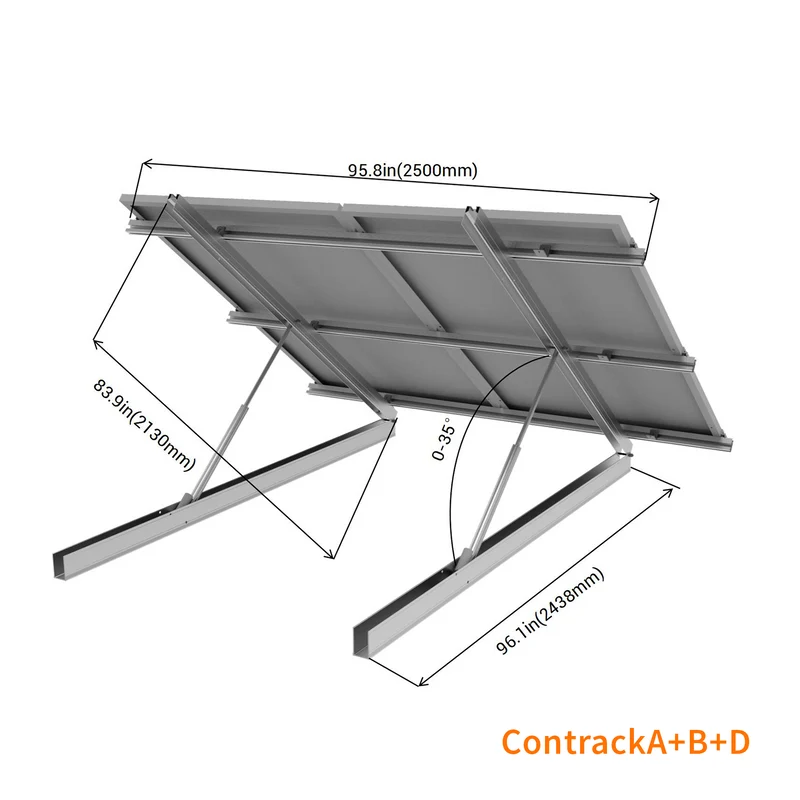

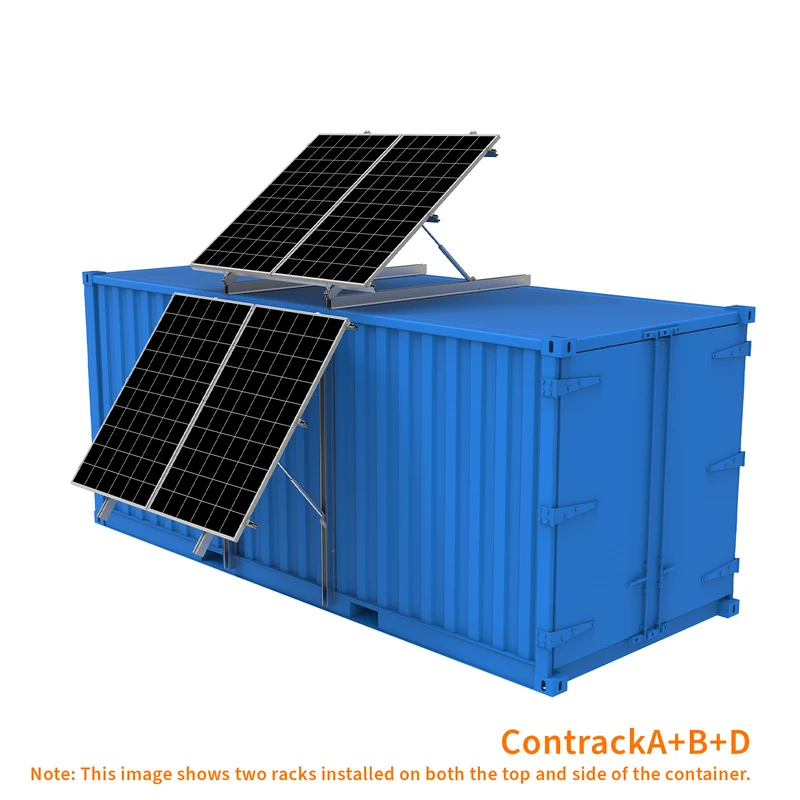

For applications requiring an adjustable tilt angle, the optional ContrackD component allows angle adjustment from 0° to 35°, offering greater flexibility in solar panel positioning.

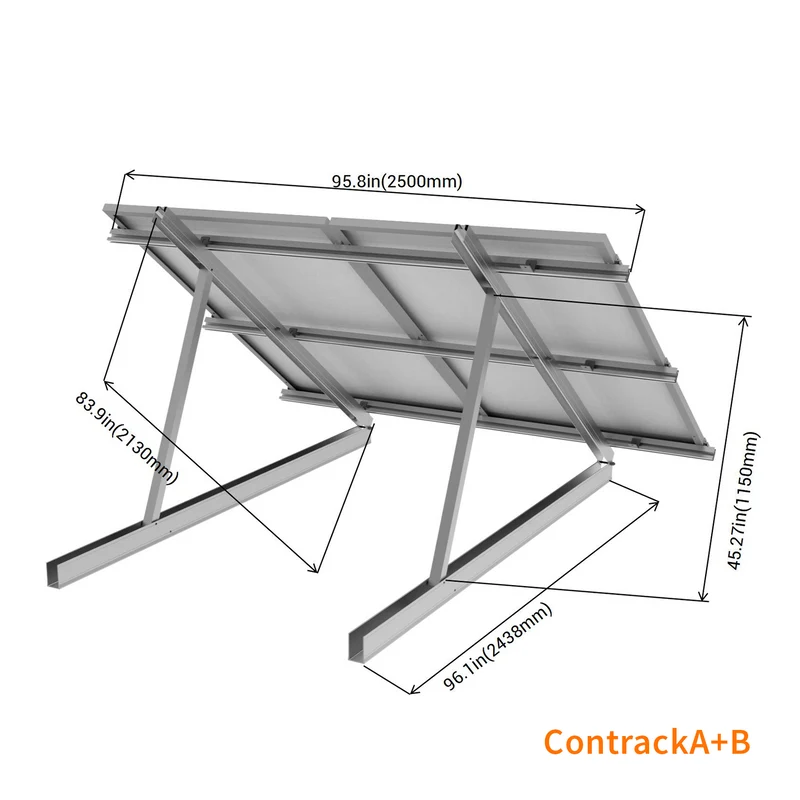

What's in the ContrackA:

• Bottom beam 2438mm x2
• Top beam 2130mm x2
• Support 1150mm x2

• M10x70mm bolt and nut x6
• Rubber x20
• M8x50mm bolt and nut x8
• Tapping screw ST5.5x38mm x12

What's in the ContrackB:

• Rail 2500mm x3
• 30/35mm end clamp x8
• 30/35mm mid clamp x5
• Aluminum nut x14
• L-feet(type-1) 76x50mm x2
• L-feet(type-2) 50x50mm x6

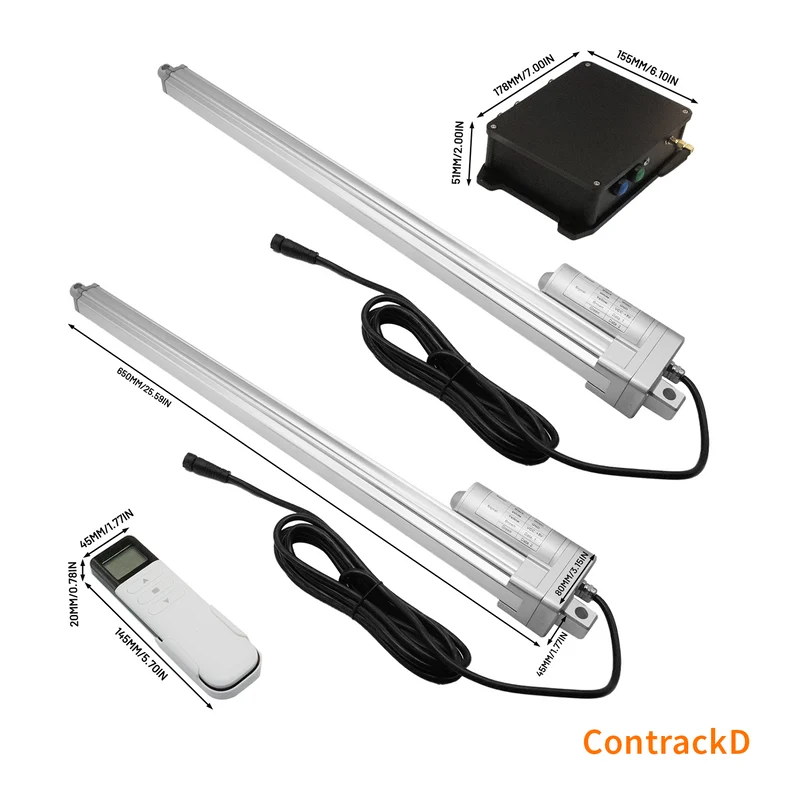

What's in the ContrackD (Optional):

• Linear actuator x2
• Controller x1
• Remote control x1
• M10x70mm bolt and nut x4
• Small Sleeves 12mm x4
• Small Sleeves 16mm x4

Dimensions: Warranty:

• 5-year Limited Warranty

Additional Details:

• Weight: ContrackA: 23.1 kg (50.93 lb); ContrackB: 8.3 kg (18.30 lb); ContrackD: 5.79 kg (12.77 lb)
