Elios Contrack A+B+C | Container Racking for 3 Solar Panels

For adjustable tilt (0°–35°), add the optional ContrackD component.

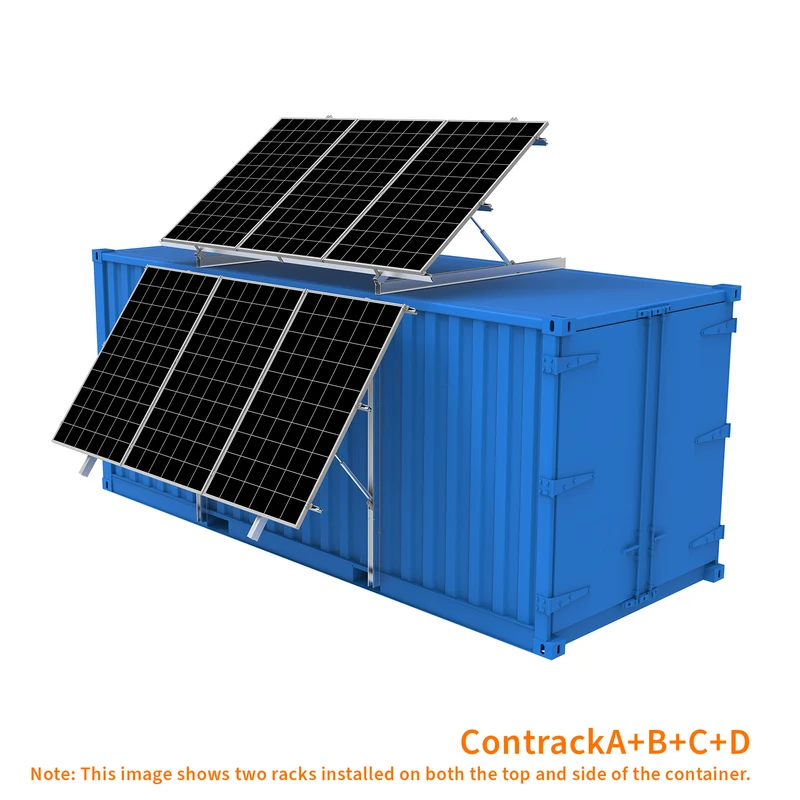

The Elios Contrack A+B+C is a high-performance aluminum racking system designed for mounting 3 solar panels at a fixed 35-degree angle on shipping containers, cargo boxes, or mobile storage units. Ideal for rooftop or sidewall installations, this modular system provides a space-efficient and structurally sound solution for off-grid and mobile solar power applications.

Compatible with standard 60/120-cell and 72/144-cell solar panels, including the Elios Voltaic 600HC-BF 600W bifacial solar panel.

Constructed from high-strength aluminum alloy, Contrack A+B+C is engineered to withstand harsh outdoor conditions while minimizing installation time and complexity. Its lightweight, container-compatible design ensures rapid deployment and long-term durability in the field.

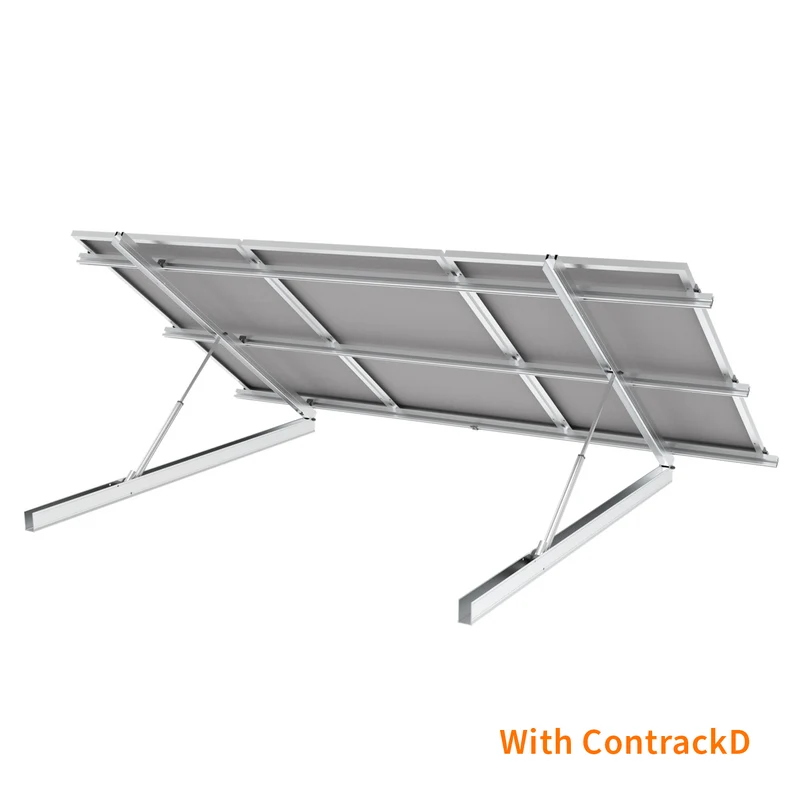

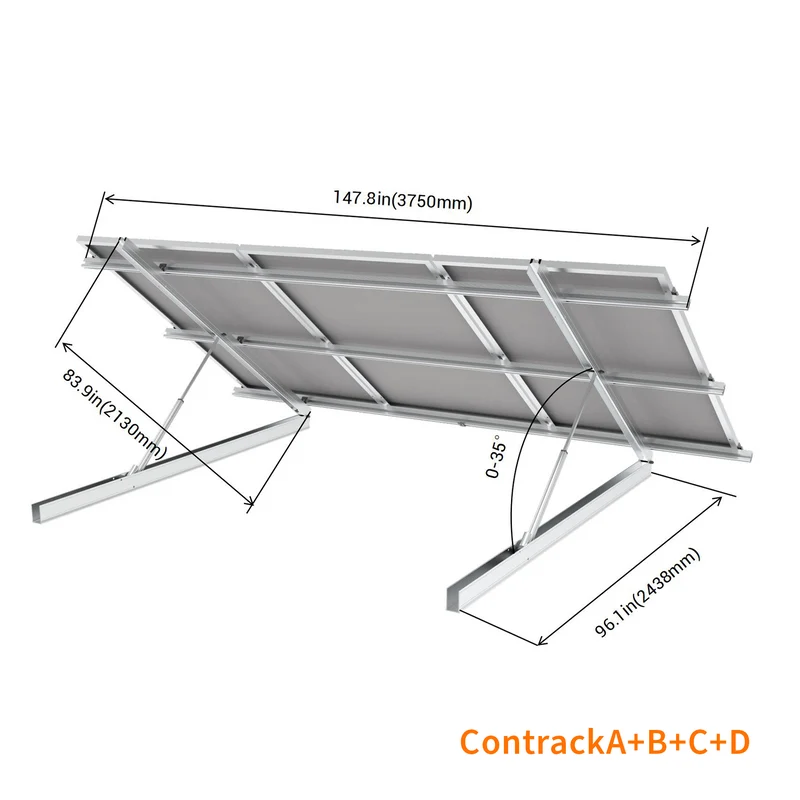

For applications requiring an adjustable tilt angle, the optional ContrackD component allows angle adjustment from 0° to 35°, offering greater flexibility in solar panel positioning.

What's in the ContrackA:

• Bottom beam 2438mm x2
• Top beam 2130mm x2
• Support 1150mm x2

• M10x70mm bolt and nut x6
• Rubber x20
• M8x50mm bolt and nut x8

• Tapping screw ST5.5x38mm x12

What's in the ContrackB:

• Rail 2500mm x3
• 30/35mm end clamp x8
• 30/35mm mid clamp x5
• Aluminum nut x14
• L-feet(type-1) 76x50mm x2
• L-feet(type-2) 50x50mm x6

What's in the ContrackC:

• Rail 1250mm x3
• 30/35mm End Clamp x8
• 30/35mm Mid Clamp x5
• Aluminum Nut x14
• L-feet (Type-1) 76x50mm x3
• L-feet (Type-2) 50x50mm x6
• Rail Connector 200mm x4
• M8x30mm T-Bolt x1

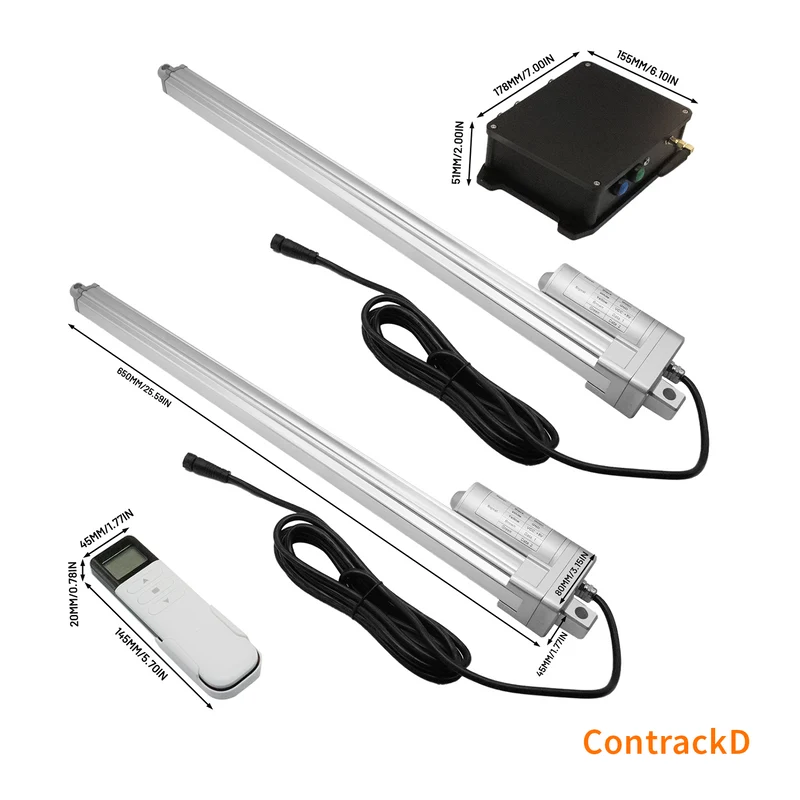

What's in the ContrackD (Optional):

• Linear actuator x2
• Controller x1
• Remote control x1
• M10x70mm bolt and nut x4
• Small Sleeves 12mm x4
• Small Sleeves 16mm x4

Warranty:

• 5-year Limited Warranty

Additional Details:

• Weight: ContrackA: 24 kg (52.91 lb); ContrackB: 9 kg (19.84 lb); ContrackC: 6.5 kg (14.33 lb); ContrackD: 6.12 kg (13.49 lb)
