EV2300 Drone Battery Unlocking Software Maintenance Tool USB PC Board

Product Overview

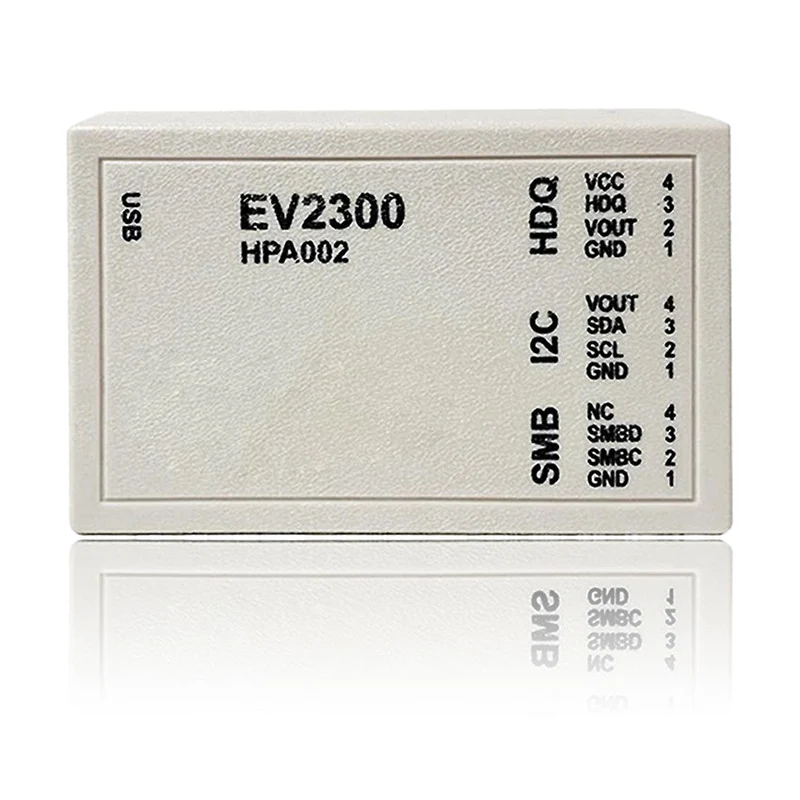

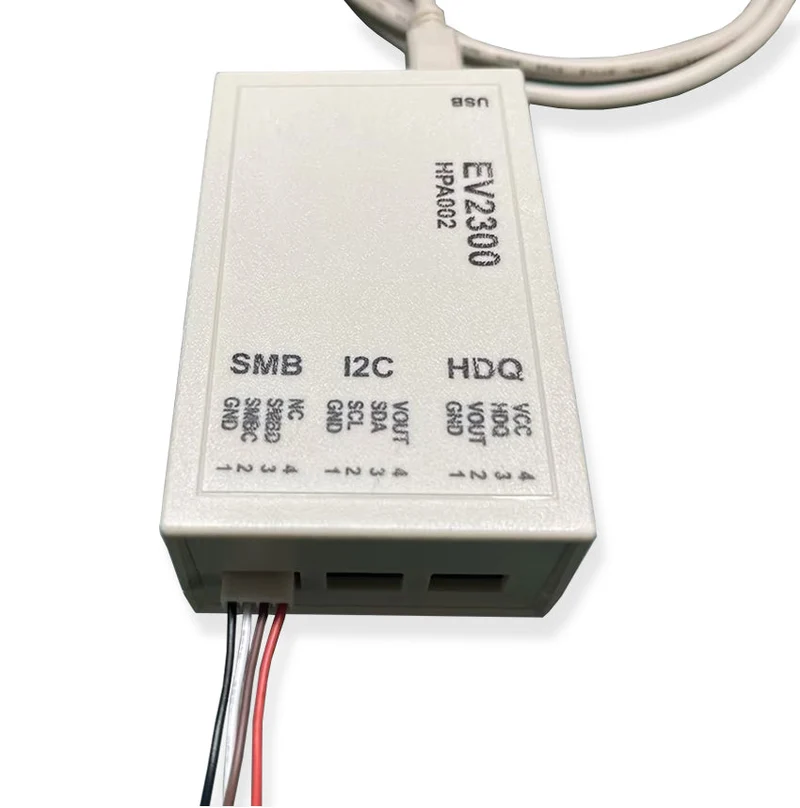

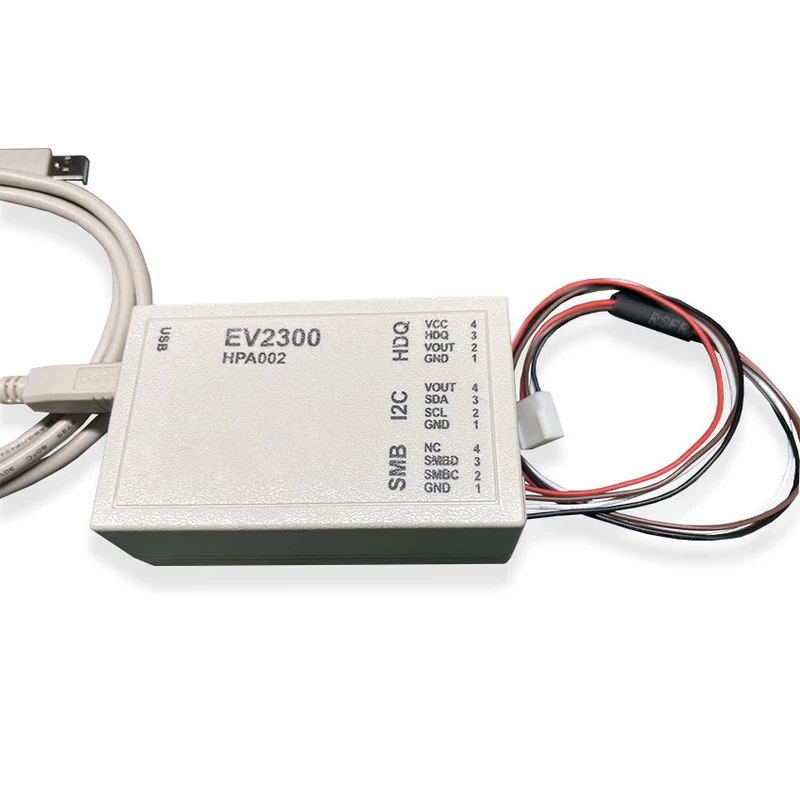

The EV2300 is a 100% brand new USB-based interface board for the evaluation, unlocking and maintenance of battery fuel-gauge circuits. It provides a bridge between an intelligent battery circuit and a Windows-based PC, connecting through the PC USB port. With the appropriate software it allows on-screen display and programming of gas-gauge register functions and data modification. It supports SMB, I2CH and DQ interfaces and a wide range of BQ-series chips. Ships 100% brand new with a 1-year warranty.

Specifications

Attribute	Details
Standard Model	EV2300

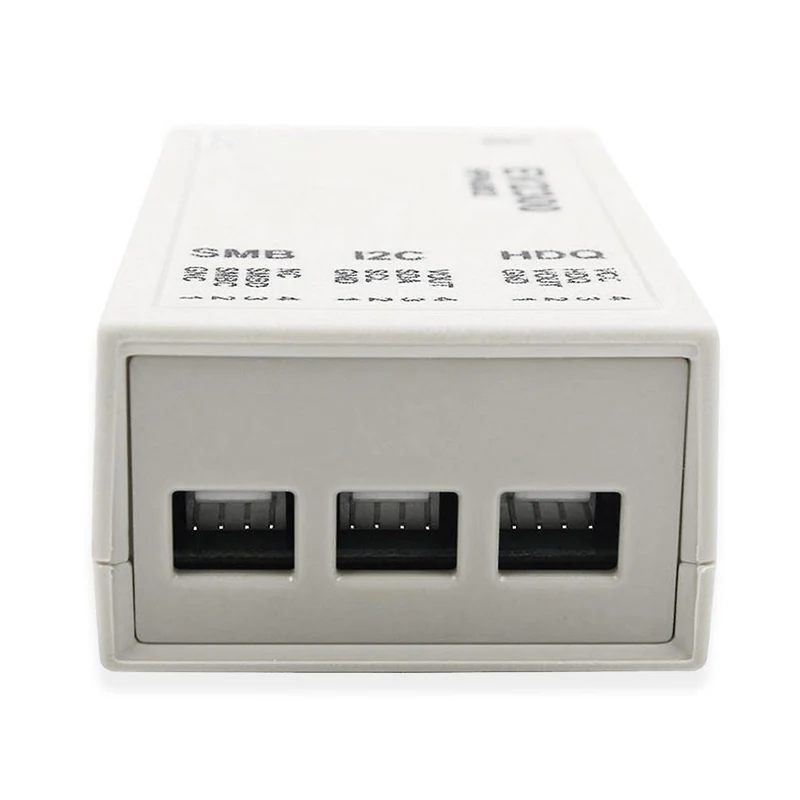

Interface	SMB, I2CH, DQ
Connectivity	USB to Windows-based PC
Uses	Development board, programmer, modify battery data
Supported Chips	BQ-series battery fuel gauge ICs
Condition	100% Brand New, 1-year warranty!

Replace Part Numbers

• EV2300

Compatible Models

Supported Battery Chips

• BQ2083
• BQ2084
• BQ2085
• BQ20864
• BQ20869
• BQ20853
• BQ20Z75
• BQ20857
• BQ20Z85
• BQ20Z70
• BQ20695A
• BQ20882
• BQ20870
• BQ20889
• BQ20Z80
• BQ2090
• BQ30Z55
• BQ40ZXX
• BQ27541
• BQ27545
• BQ34Z100
• BQ78Z100
• BQ28Z60

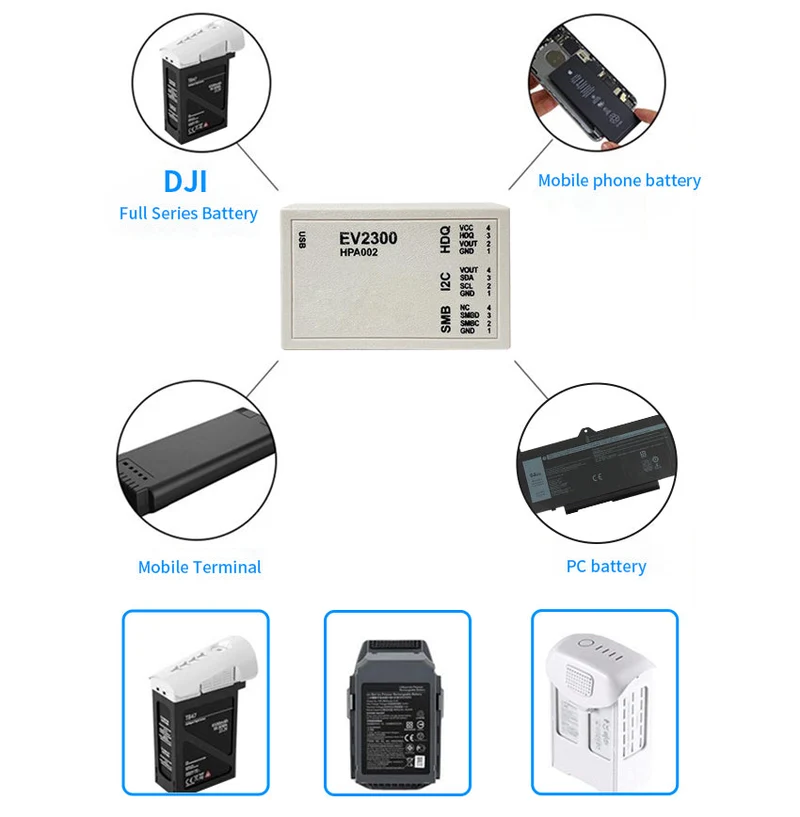

This tool requires the appropriate Windows PC software to display and program gas-gauge registers. It is mainly used for drone batteries and other BQ-chip battery packs.

FAQ

What is the EV2300 used for?

The EV2300 is a USB-based interface board used to evaluate, unlock and maintain intelligent battery fuel-gauge circuits. With suitable PC software it displays and programs gas-gauge registers and modifies data.

Which battery chips does the EV2300 support?

It supports a wide range of BQ-series chips including BQ2083, BQ2084, BQ2085, BQ20Z75, BQ20Z85, BQ20Z70, BQ20695A, BQ30Z55, BQ40ZXX, BQ27541, BQ27545, BQ34Z100, BQ78Z100 and BQ28Z60 drone batteries.
