Felicity FLB48314TG1 16 kWh LiFePO₄ Low-voltage battery storage IP65

The Felicity FLB48314TG1 This is a 51,2 V low-voltage battery storage system with a nominal energy capacity of 16 kWh LiFePO₄ for compatible home energy systems. The integrated BMS, IP65 protection, RS485/CAN communication, as well as WLAN and Bluetooth support monitoring and secure operation. Up to 32 units can be operated in parallel within the manufacturer's limits; this allows the storage capacity to be gradually expanded up to 512 kWh.

Delivery

1× Felicity FLB48314TG1 16 kWh battery storage
1× Communication cable for the inverter
1× cable for connecting additional battery storage devices in parallel
1× Mounting material for secure installation
1× User manual

Produktvorteile

-- 16 kWh LiFePO₄ nominal energy: The storage unit absorbs excess solar energy for later self-consumption.

-- Intelligent battery management: The BMS monitors voltage, current and temperature and coordinates the protection functions.

-- IP65 enclosure: The correctly installed system is protected against dust and water jets.

-- RS485 and CAN communication: The interfaces enable integration into approved inverter systems.

-- Up to 32 units in parallel: The capacity can be expanded to a maximum of 512 kWh within the manufacturer's limits.

Compatibility

The FLB48314TG1 is a 51,2 V low-voltage battery with an operating range of 44,8 to 57,6 V. Communication is via RS485 or CAN. Only inverter models and parallel configurations currently approved by Felicity Solar for this battery model may be used. Connection, protection concept, and commissioning must be verified by a qualified electrician.

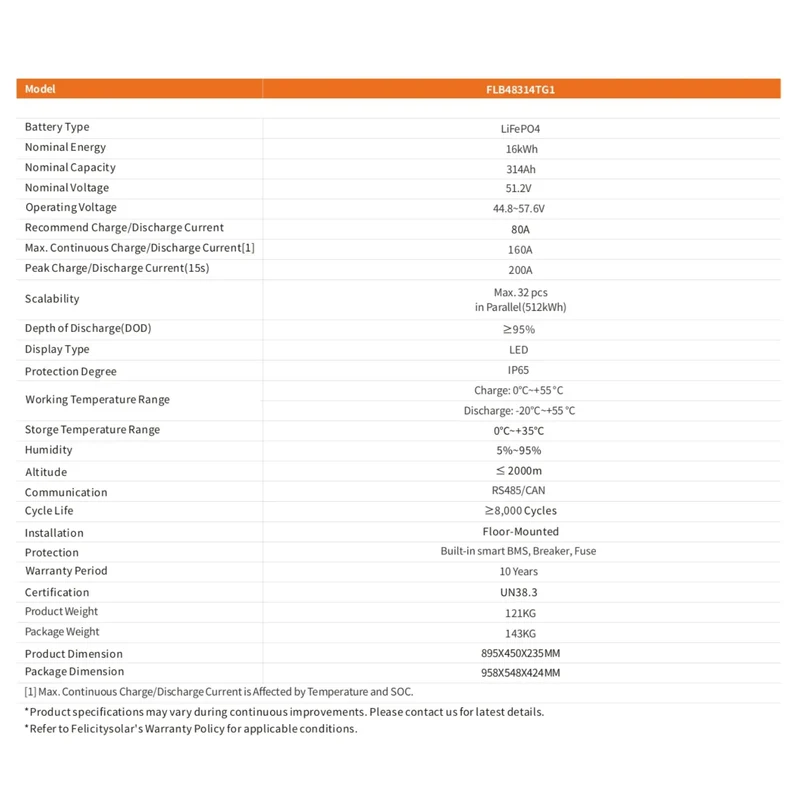

Technical information

-- Nominal energy: 16 kWh
-- Nominal voltage: 51,2 V
-- Operating voltage: 44,8–57,6 V
-- Maximum charging/discharging current: 160 A
-- Communication: RS485 / CAN, WLAN and Bluetooth
-- Protection class: IP65
-- Cycles: at least 8.000 according to the manufacturer

Matching accessories and related products

Felicity FLB48314TG1-H 16 kWh LiFePO₄ Low-voltage battery storage as a variant with integrated heating function.

• Felicity FLA48280-EU 14,3 kWh LiFePO₄ Low-voltage battery storage as an alternative interior solution.

Why Mini Power

At the Felicity FLB48314TG1 Low-voltage battery storage Voltage level, communication protocol, and planned capacity must be compatible. Mini Power therefore transparently presents the confirmed core data and the actual scope of delivery. We provide support in verifying the inverter model and a permissible parallel configuration. Electrical planning, connection, and commissioning must be carried out professionally; blanket approvals for unconfirmed inverters or self-assembled battery systems are not assumed. The current official manufacturer approvals are authoritative.

Frequently asked questions

-- What voltage level does the FLB48314TG1 use?

The model operates at a nominal voltage of 51,2 V and belongs to the low-voltage class.

-- Can the memory be expanded in parallel?

Yes. Felicity Solar specifies up to 32 units connected in parallel and a maximum total nominal energy of 512 kWh.

-- What is important when choosing an inverter?

The inverter must be electrically and, in the case of the RS485 or CAN protocol, explicitly approved for this battery model.
