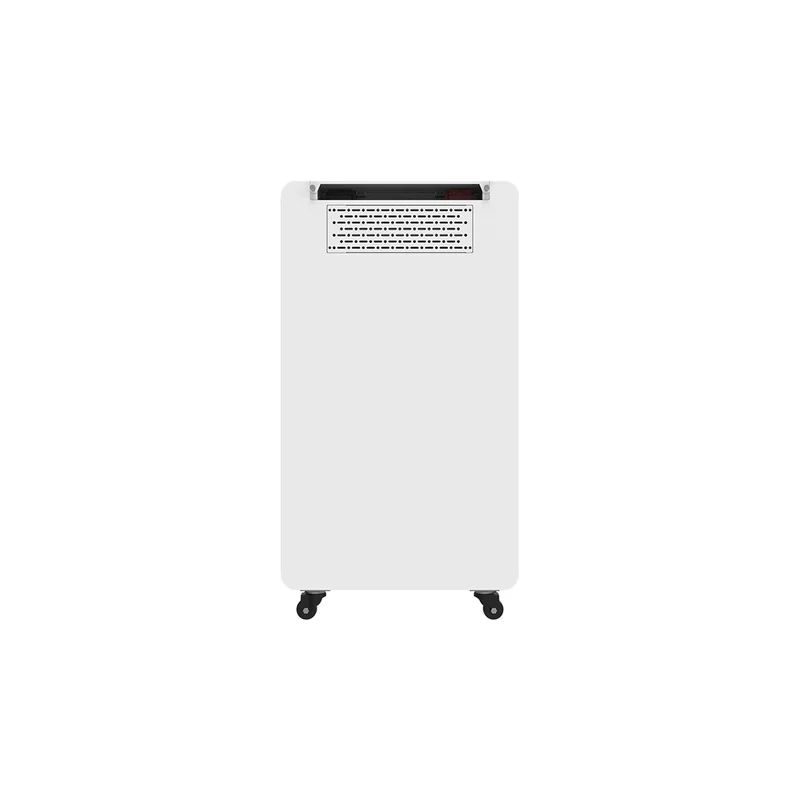

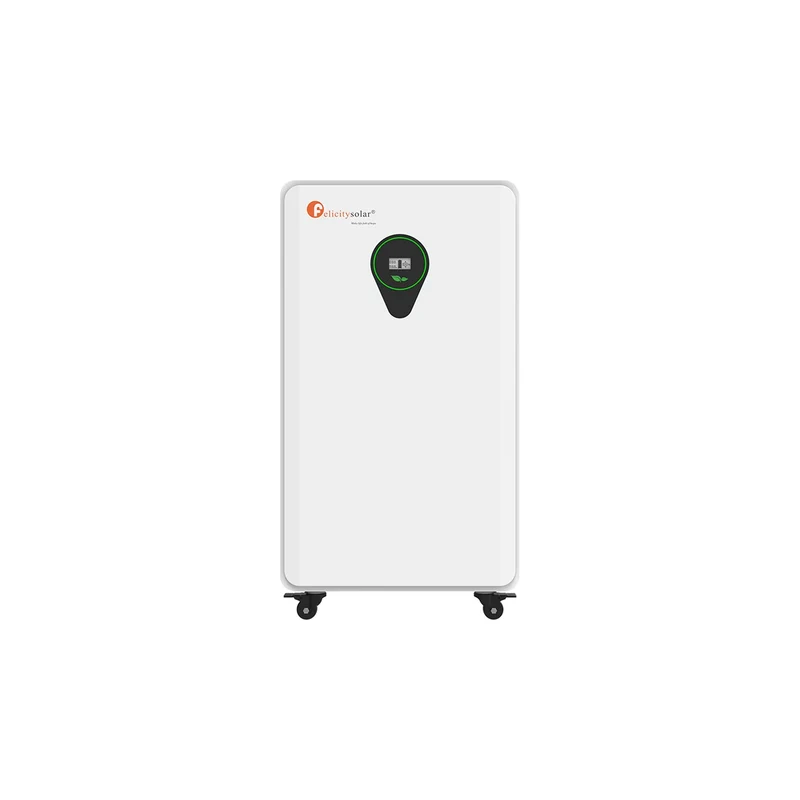

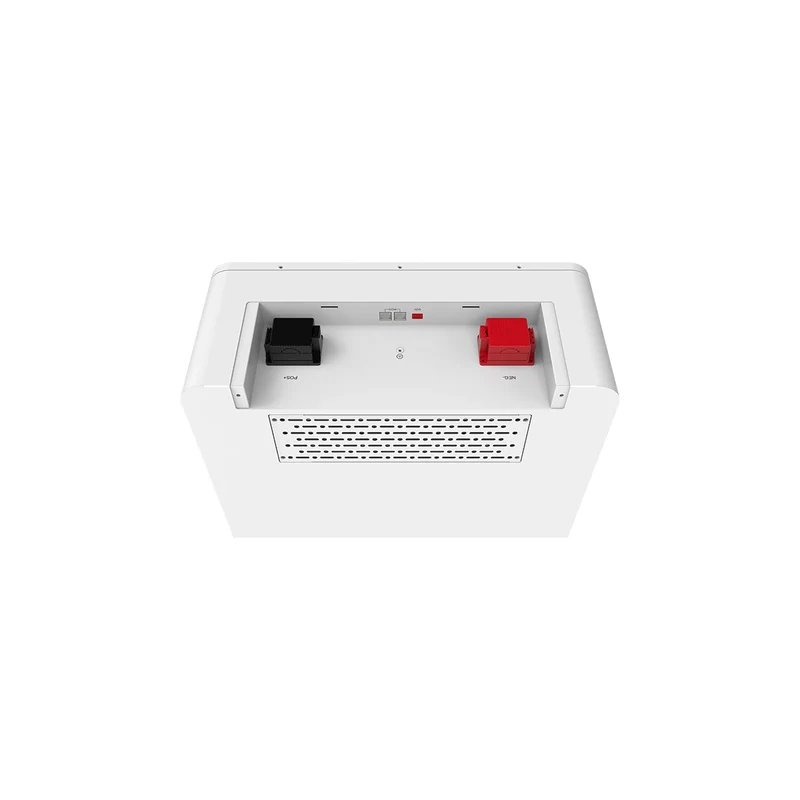

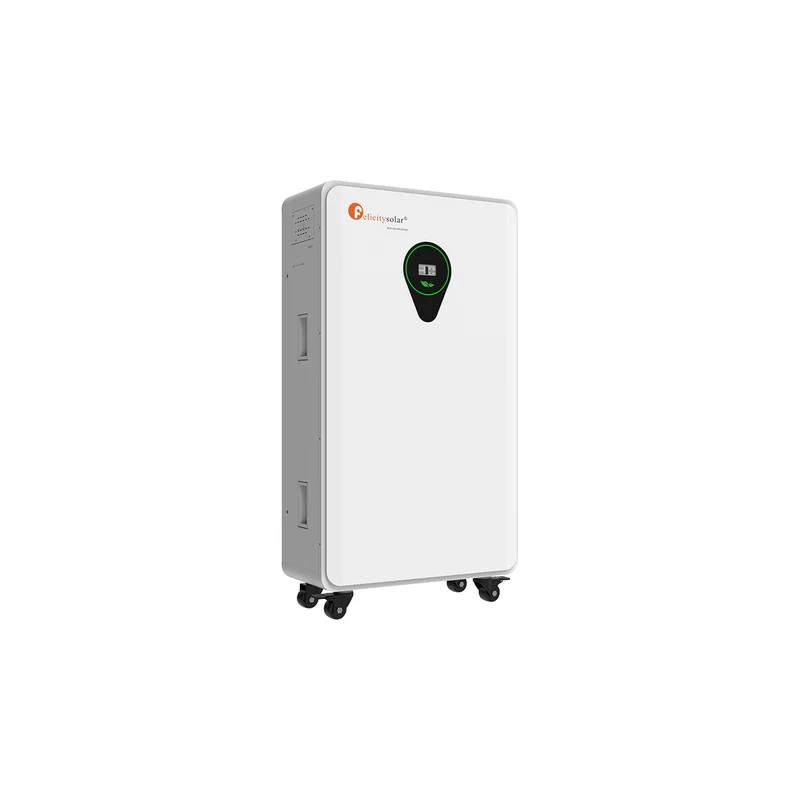

FelicityESS FLA48460TG2-EU 23,5 kWh LiFePO₄ Low-voltage battery storage

The FelicityESS FLA48460TG2-EU 23,5 kWh LiFePO₄ Low-voltage battery storage This is a 23,5 kWh LiFePO₄ low-voltage battery storage system for planned photovoltaic and storage systems. The model combines an operating range of 44,8 to 57,6 V with a smart BMS, RS485/CAN communication, up to 95% depth of discharge, IP21 protection rating, and up to 15 parallel-operable units. This makes it suitable for projects with proven system compatibility, traceable operating data, and scalable energy supply.

Delivery

1× FelicityESS FLA48460TG2-EU 23,5 kWh LiFePO₄ Low-voltage battery storage

Produktvorteile

-- 23,5 kWh nominal energy: provides high storage capacity for larger consumption profiles.

-- LiFePO₄ with Smart BMS: combines stationary storage cells with integrated monitoring.

-- Up to 95% discharge depth: enables a high usable amount of energy within the specifications.

-- RS485/CAN communication: connects approved inverters.

-- Up to 15 units in parallel: According to the manufacturer, it allows a total nominal energy output of up to 352,5 kWh.

Compatibility

Operation requires a low-voltage inverter approved by FelicityESS for FLA48460TG2-EU. Before ordering, the communication protocol, current limits, cable set, protection concept, installation location, and permissible system size must be carefully checked.

Technical information

-- Nominal energy: 23,5 kWh
-- Operating voltage: 44,8–57,6 V
-- Depth of discharge: up to 95% according to the manufacturer
-- Communication: RS485 / CAN
-- Protection class: IP21
-- Parallel expansion: up to 15 units

Matching accessories and related products

Alternative low-voltage battery storage systems from our product range. The models differ in capacity and features; a common parallel connection or identical inverter approval is not required.

Felicity LUX-E-48100LG04 5,12 kWh battery storage
Felicity FLB48314TG1-H 16 kWh LiFePO₄ Low-voltage battery storage with heating function
Felicity FLA48280-EU 14,3 kWh LiFePO₄ Low-Voltage Indoor Battery Storage
Felicity FLB48314TG1 16 kWh LiFePO₄ Low-voltage battery storage IP65

Why Mini Power

With the FLA48460TG2-EU, voltage level, communication protocol, and system design must be precisely matched. Mini Power therefore clearly presents confirmed key data, model designation, and the actual scope of delivery. We provide support in aligning the product with the inverter, battery, PV system design, and required measuring components. Unconfirmed compatibilities are not guaranteed. Connection, protection concept, grid connection, and commissioning remain the responsibility of a qualified electrician. This allows you to specifically compare the model, installation location, and required components with your existing or planned system before purchasing.

Frequently asked questions

-- Is this model compatible with any inverter or storage system?

No. The decisive factors are the current manufacturer's approval, voltage level, communication protocol, and system design.

Who is allowed to connect the product?

Connection, protection testing and commissioning must be carried out by a qualified electrician.

-- Can the memory be expanded in parallel?

Yes, within the number approved by the manufacturer for the respective model and with an identical, professionally coordinated system configuration.
