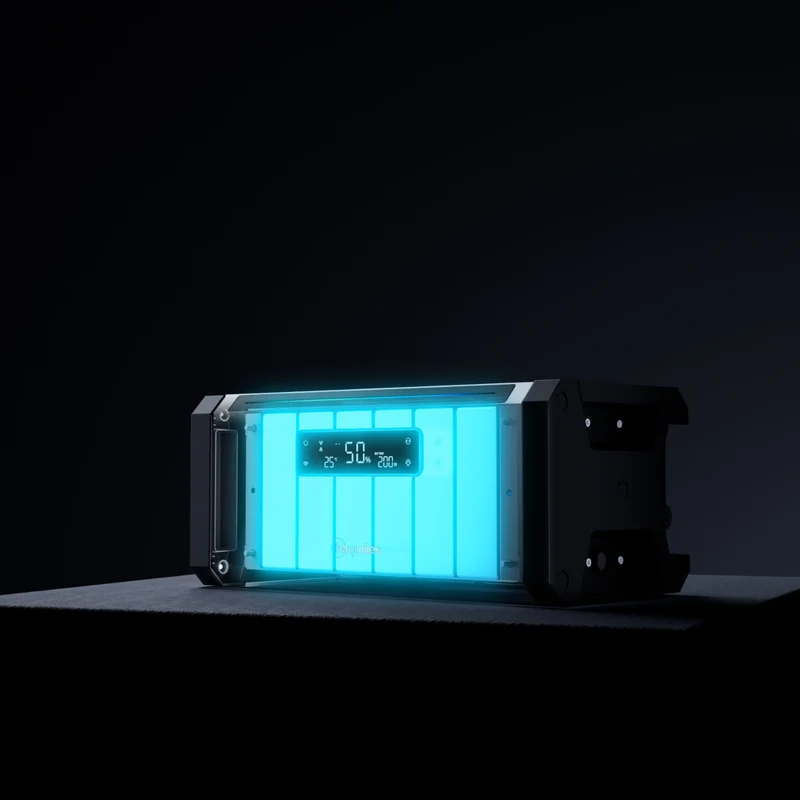

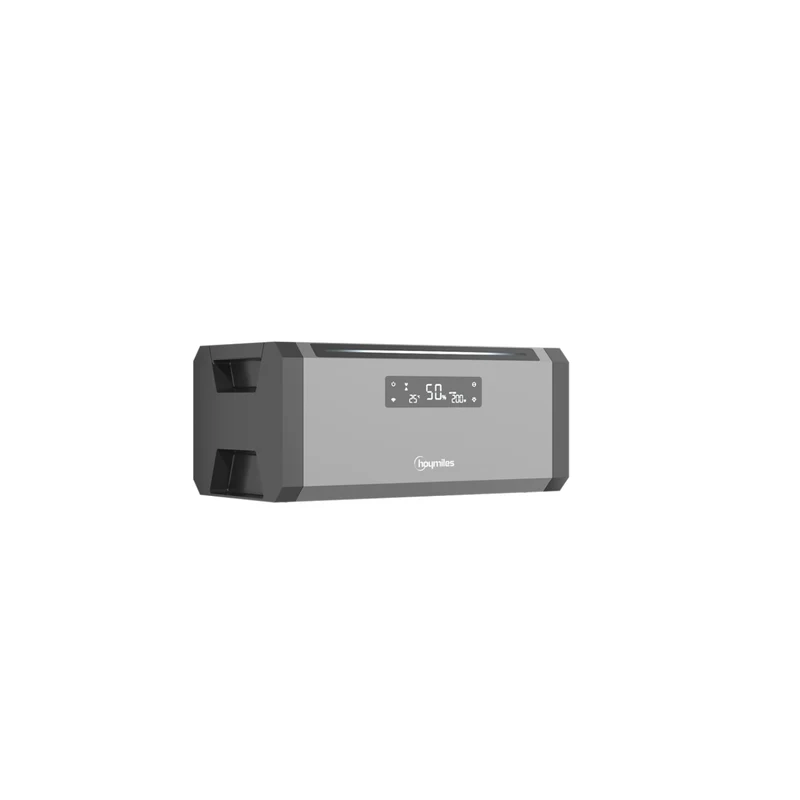

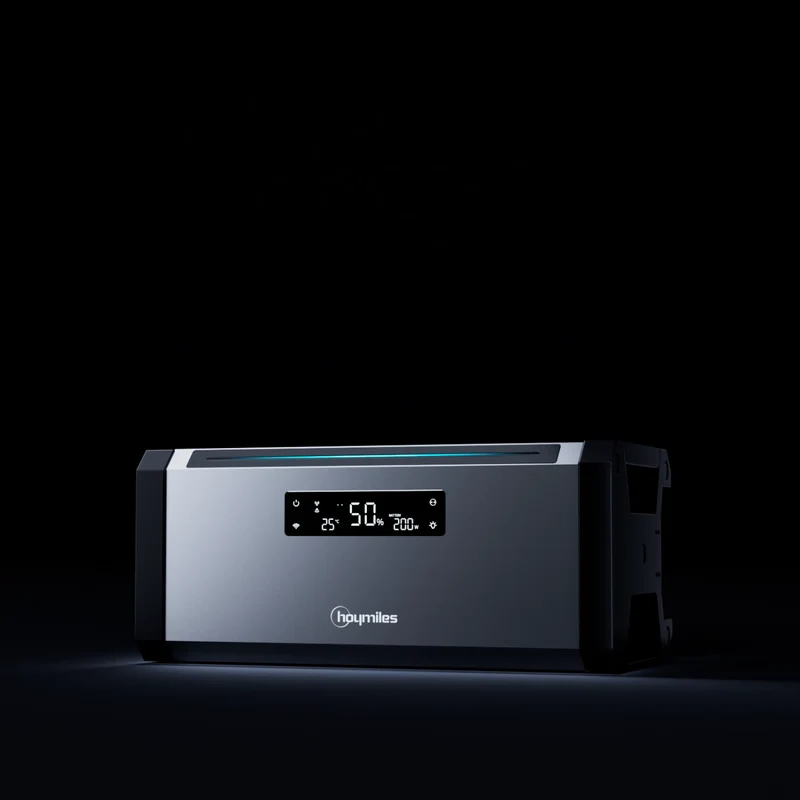

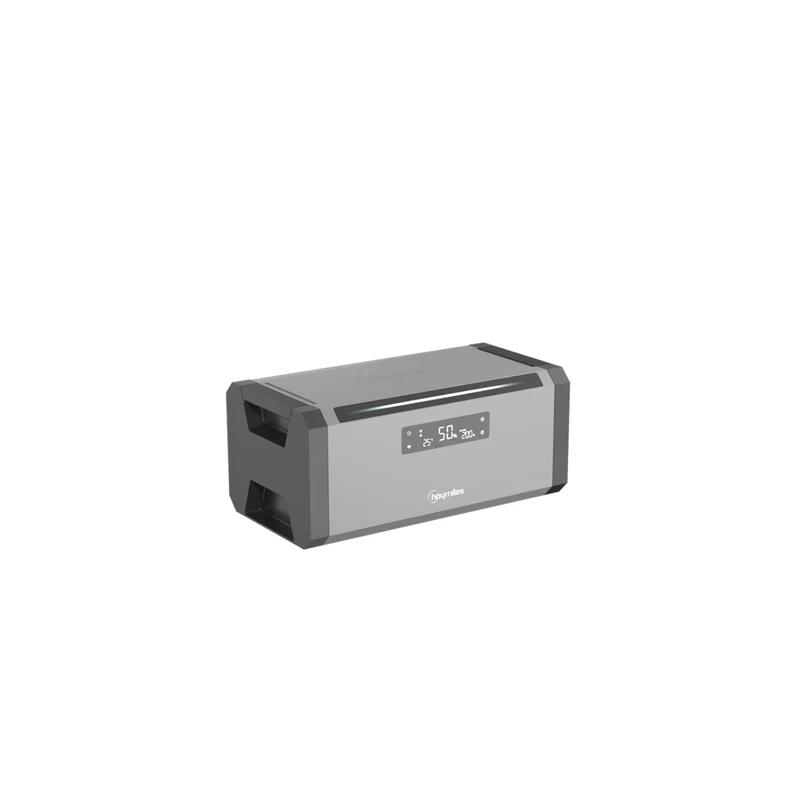

Hoymiles HiBattery 1920 HB-1920-AC-SV - AC Pure Energy Storage

The Hoymiles HiBattery 1920 HB-1920-AC-SV This is an AC-coupled LFP storage system with 1.920 Wh for existing balcony power plants. It delivers up to 800 VA grid-connected and 1.200 VA off-grid, charges via AC with up to 1.800 VA, and operates quietly at under 17 dBA. Wi-Fi, Bluetooth, and a Schuko socket are fully integrated from the factory.

Delivery

1× Hoymiles HiBattery 1920 HB-1920-AC-SV
1× AC connection and charging cable as per manufacturer's scope of delivery
1× Product, safety and commissioning instructions

Produktvorteile

-- 1.920 Wh AC storage: Retrofits an existing micro-inverter system on the AC side.

-- 800 VA mains / 1.200 VA off-grid: Clearly separates the permissible grid-connected power from the off-grid power function.

-- Up to 1.800 VA AC charging power: Enables rapid energy absorption within the enabled configuration.

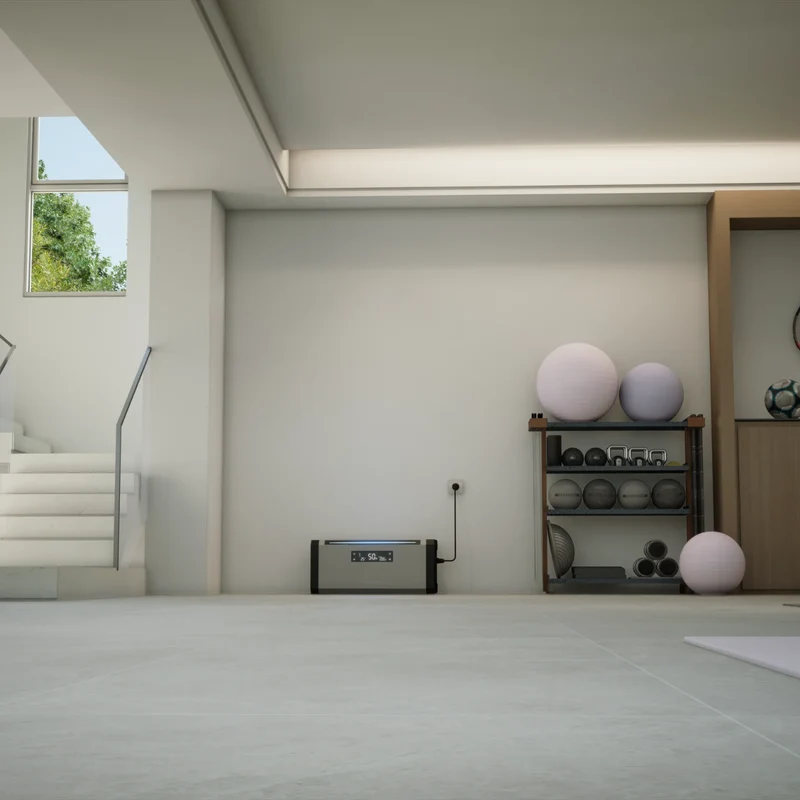

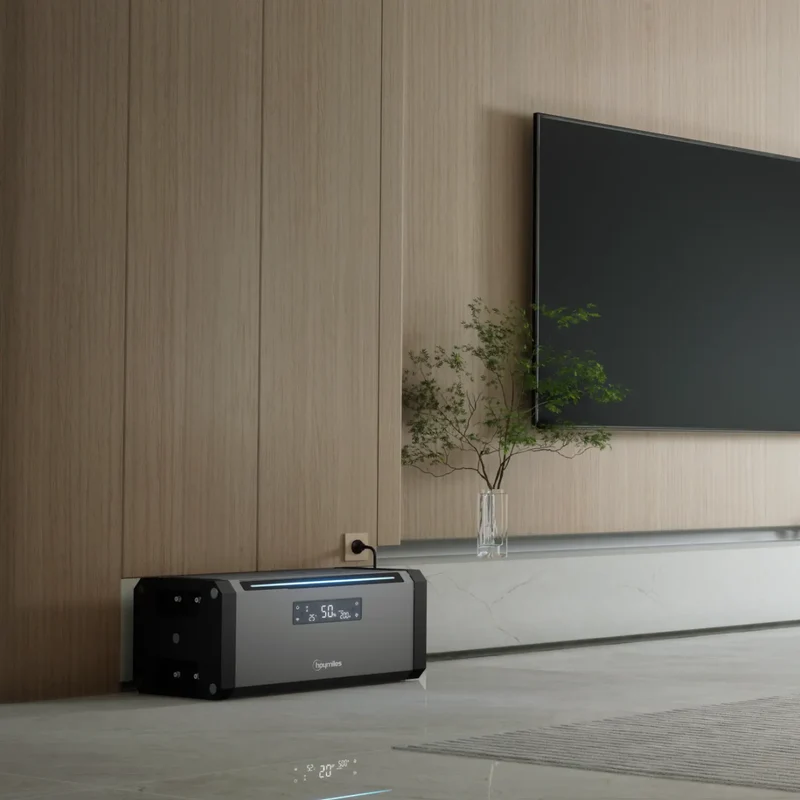

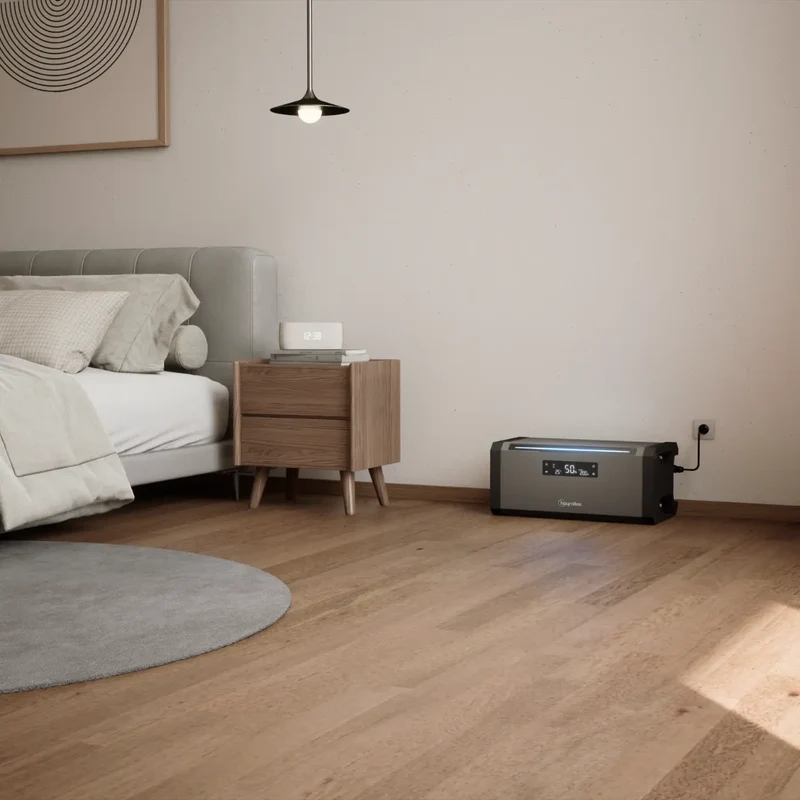

-- Quiet operation below 17 dBA: Suitable for installation locations close to residential areas, provided the installation guidelines are followed.

Compatibility

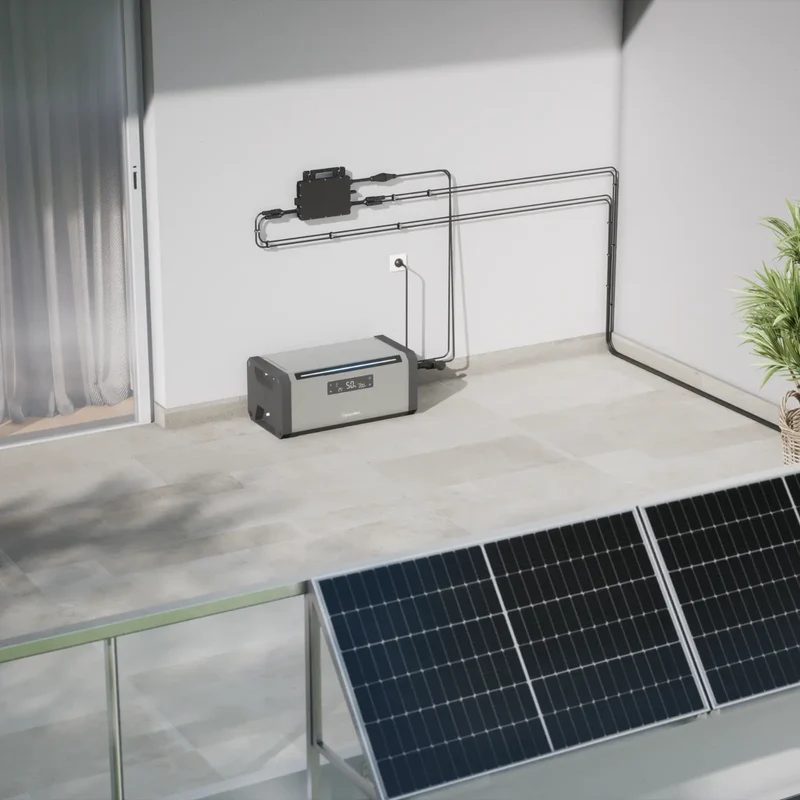

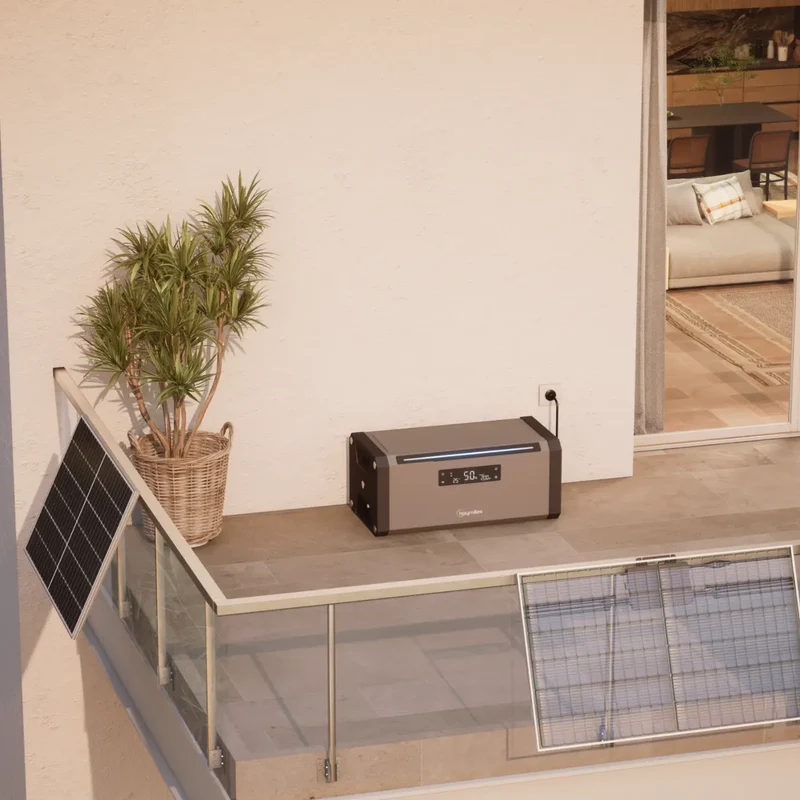

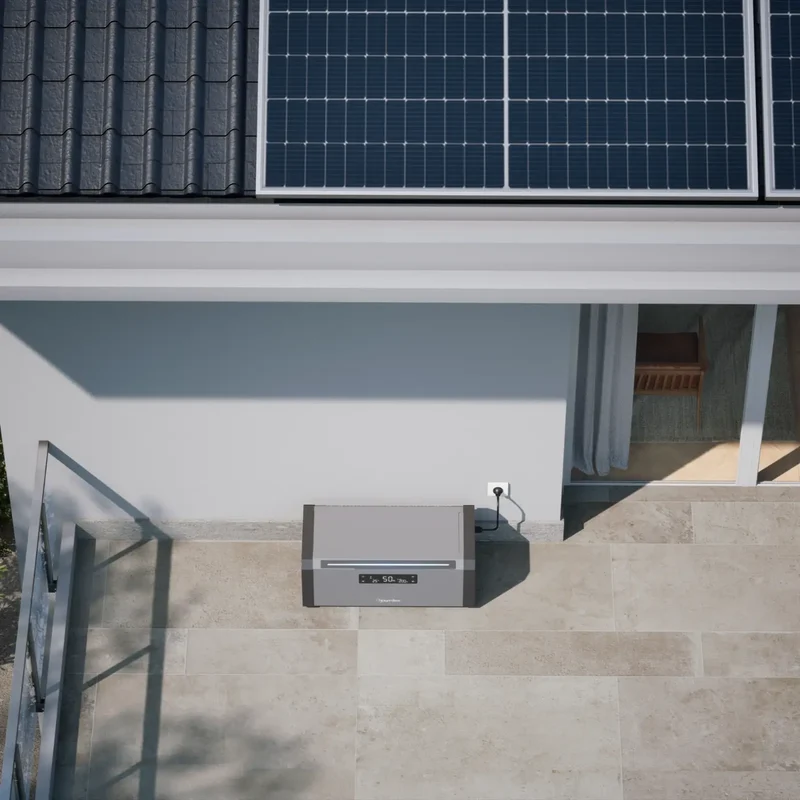

AC-coupled retrofit solution for compatible 230V balcony power plants and household electrical systems. The battery operates independently of direct PV wiring and can be connected to compatible smart meters for demand-based control or zero feed-in. Two units can be connected using the separately available expansion kit to achieve a total capacity of 3,84 kWh. For larger multi-unit configurations, current firmware, phase, and function specifications from Hoymiles apply.

Technical information

-- Model: HB-1920-AC-SV
-- Battery capacity: 1.920 Wh

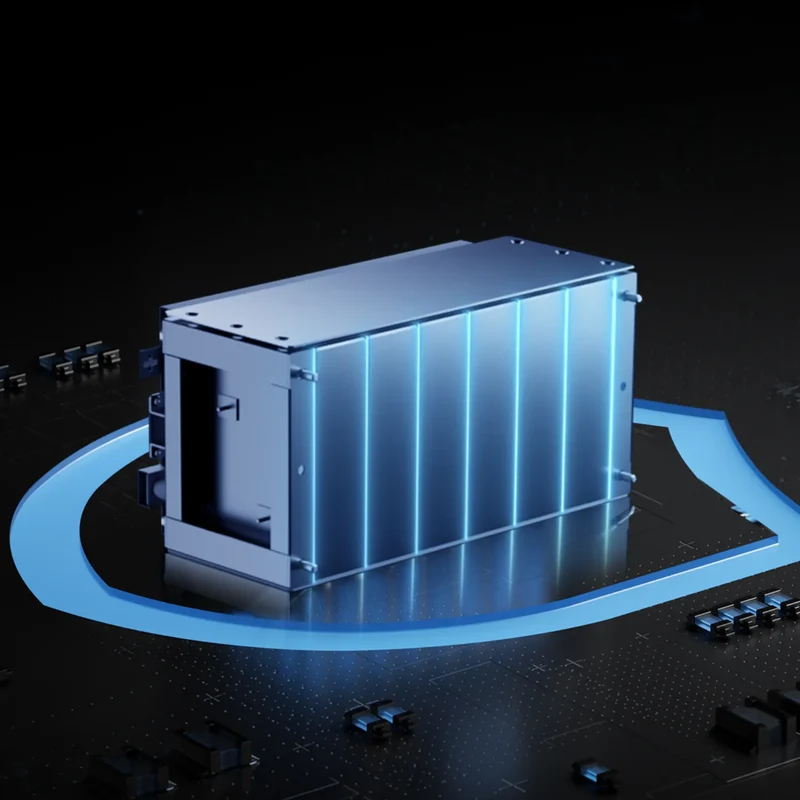

-- Battery chemistry: Lithium iron phosphate (LFP)
-- Cycle lifespan: at least 6.000 cycles
-- Mains-connected AC output power: 800 VA
-- Off-grid output: 1.200 VA; peak 10 s
-- Maximum AC input: 1.800 VA
-- Maximum bidirectional efficiency: 96,5%
-- Maximum round-trip efficiency: 87%
-- Communication: WLAN and Bluetooth
-- Protection class: IP66
-- Dimensions: 460 × 240 × 203 mm
-- Weight: 24 kg
-- Operating temperature: −20 to 55 °C
-- Noise level: below 17 dBA

Expandability and energy management

-- Two batteries: 3,84 kWh with separately available expansion kit
-- Smart meter connection for demand-based control
-- Zero feed-in with compatible measurement and system configuration
-- Open MQTT connection according to current Hoymiles system support
-- More than two units only according to current firmware and phase planning

Matching accessories and related products

-- Hoymiles expansion set for HB-1920-AC: for the combination of two batteries.

-- Hoymiles HMS-800-2WB HiFlow MicroinverterCheck suitable AC system integration in advance.

Why Mini Power

Mini Power disconnects at Hoymiles HiBattery 1920 The values ​​for grid operation, off-grid output, and AC charging are clearly defined. Capacity, efficiency, and expansion are also kept separate: one unit offers 1.920 Wh, two units 3,84 kWh with separate accessories. Information on smart meters, firmware, and phase planning shows which functions depend on the specific system configuration. This allows for a reliable comparison of the AC storage system with existing balcony power plants.

Frequently asked questions

-- What is the power output in grid and off-grid operation?

When connected to the grid, the HiBattery delivers up to 800 VA. Up to 1.200 VA is possible at the off-grid output, including a 10-second peak rating from the manufacturer.

-- Can the capacity be expanded?

Yes. Two HB-1920-AC units can be coupled together to achieve 3.840 Wh using the separately available connection and mounting kit.

-- Is the PV power connected directly to the battery?

No. The HiBattery is AC-coupled and is integrated into a suitable system on the AC side.
