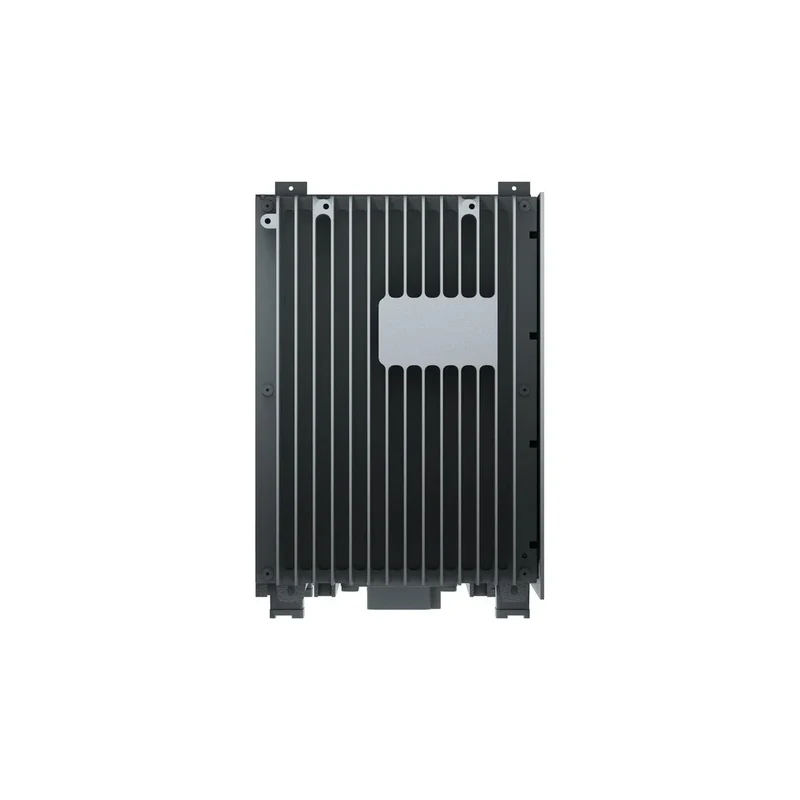

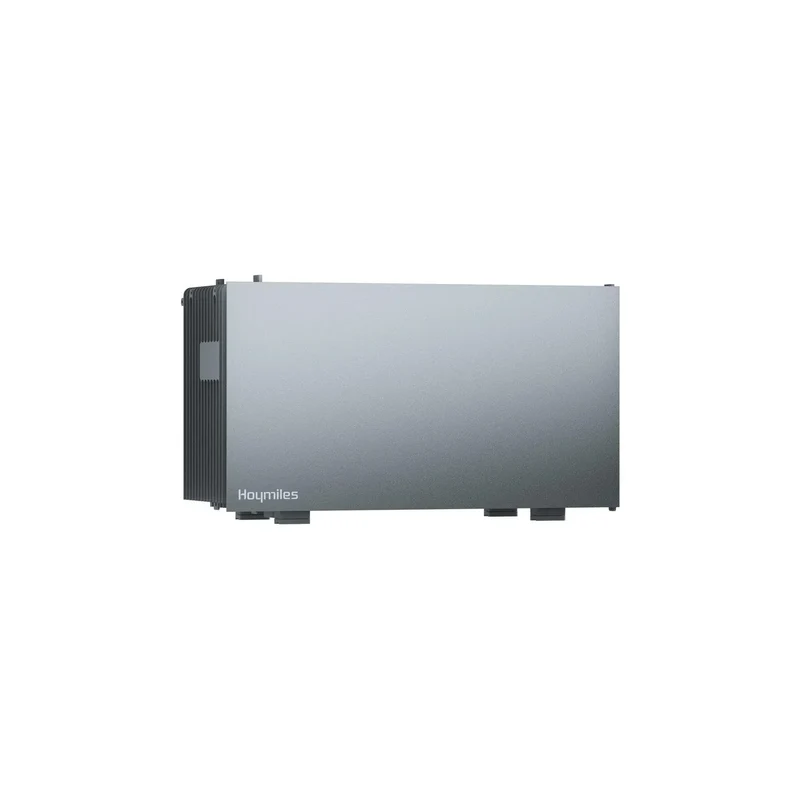

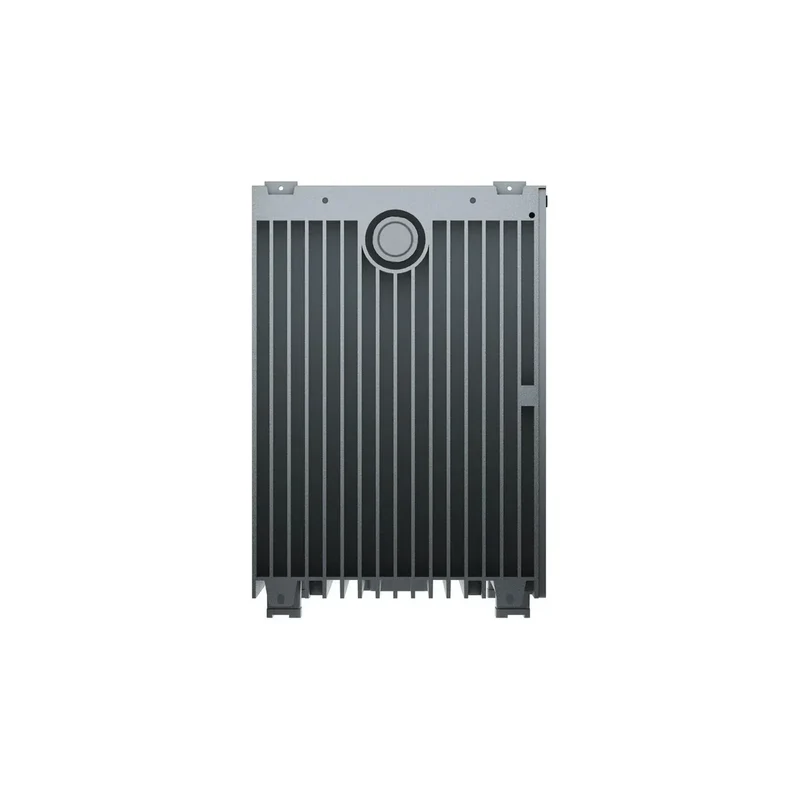

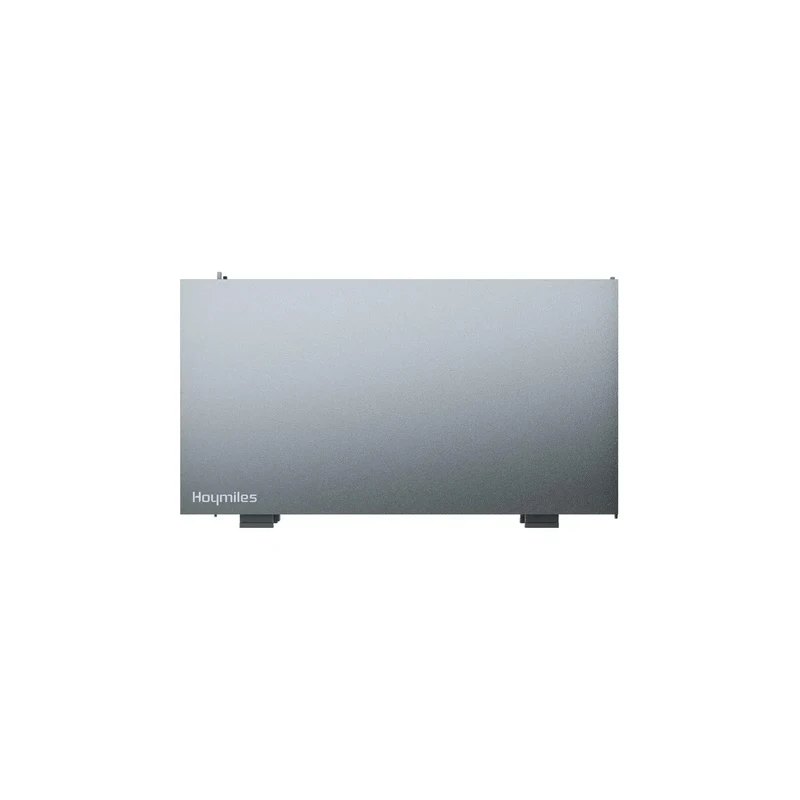

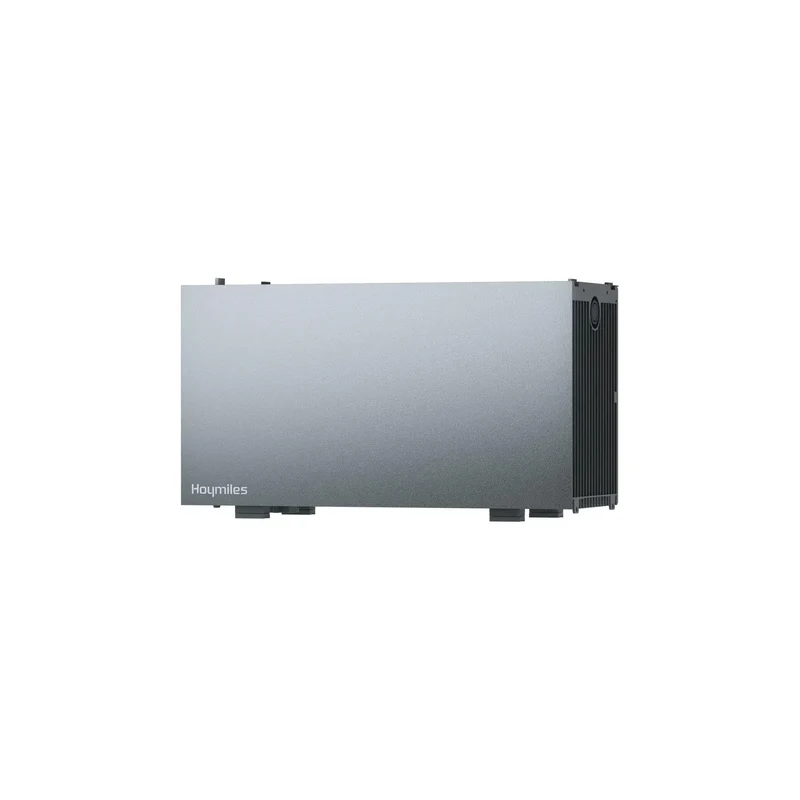

Hoymiles HiBattery 4020 S HB-4020-S 4,02 kWh Extension Battery

The Hoymiles HiBattery 4020 S Extension Battery The HB-4020-S adds 4,02 kWh of LiFePO4 storage to compatible HiBattery 4020 systems. With 2.000 W charging and discharging power, IP66 protection, automatic self-heating, and at least 8.000 cycles at 70% state of health (SOH), this stackable module expands the energy reserve of the HiBattery 4020 X or HiBattery 4020 AC – without requiring a standalone inverter, PV system, or app.

Delivery

1× Hoymiles HiBattery 4020 S Extension Battery (HB-4020-S)
1× User Manual
2× handle
2× bracket
2× M6 expansion bolt
2× M5 screw
4× M4 screw

Produktvorteile

-- 4,02 kWh additional storage capacity: The HB-4020-S adds 4020 Wh of nominal energy and 314 Ah to a compatible HiBattery-4.020 system.

-- 2.000 W charging and discharging power: Within a compatible system, the expansion module supports a nominal and maximum power output of 2.000 W each.

-- At least 8.000 cycles: Hoymiles states a cycle life of at least 8.000 cycles to maintain 70% state of health.

-- IP66 and automatic self-heating: The protected housing and the heating film, which is automatically activated at temperatures below 0 °C, support operation down to -20 °C.

-- Modularly expandable storage system: Up to three HB-4020-S units can be stacked per compatible main unit; together, a system capacity of up to 16,08 kWh is possible under the manufacturer's conditions.

Compatibility

The HB-4020-S is exclusively designed as an extension battery for Hoymiles HiBattery 4020 X and Hoymiles HiBattery 4020 AC It is designed for use with other devices. It cannot be operated independently and does not provide inverter, PV, Wi-Fi/app, or backup functions. Up to three HB-4020-S units can be added to each compatible main unit. Together with the 4,02 kWh battery integrated into the main unit, a system capacity of up to 16,08 kWh is possible when using the Hoymiles Smart Meter.

Technical information

-- Model: HB-4020-S
-- Battery technology: LiFePO4 (LFP)
-- Nominal energy: 4.020 Wh
-- Usable energy: 3,62 kWh at 90% depth of discharge
-- Capacity: 314 Ah
-- Nominal voltage: 12,8 V
-- Voltage range: 11,2–14,6 V
-- Nominal/Maximum power: 2.000 W charging and discharging
-- Cycle lifetime: ≥ 8.000 cycles at 70% SOH
-- Operating temperature: -20 to 55 °C
-- Protection class: IP66
-- Dimensions: 520 × 275 × 199 mm
-- Weight: 35 kg

Safety and operating conditions

The HB-4020-S operates with a LiFePO4 battery system and natural convection cooling. The integrated heating element automatically activates at temperatures below 0°C to ensure the unit reaches its operating temperature. Hoymiles specifies IP66 protection, 5–100% humidity, and a maximum operating altitude of 4.000 m. Installation, stacking, and mounting must be carried out according to the official user manual.

Matching accessories and related products

• Hoymiles HiBattery 4020 X All-in-One Micro Storage System – confirmed compatible main device
• Hoymiles HiBattery 4020 AC – AC coupled home storage – confirmed compatible main device
• Hoymiles HiBattery 1920 HB-1920-AC-SV - AC Pure Energy Storage – smaller alternative of the same product family, not as a compatible accessory

Why Mini Power

At Mini Power you will receive the Hoymiles HiBattery 4020 S Extension Battery With verifiably verified manufacturer data, clearly stated compatibility, and a fully aligned scope of delivery. We consistently separate the functions of the HB-4020-S from the features of the 4020-X and 4020-AC main units, enabling you to plan capacity and system configuration correctly. For questions regarding expansion levels, operating conditions, and selecting the appropriate HiBattery-4020-Systems Our German-speaking service is available to you.

Frequently asked questions

What is included in the delivery of the Hoymiles HB-4020-S?

Included are an HB-4020-S battery module, a user manual, two handles, two mounting brackets, and the M6, M5, and M4 screws listed in the manual. A 4020-X or 4020-AC main unit is not included.

-- Which main devices is the HB-4020-S compatible with?

The expansion battery is only approved for use with the Hoymiles HiBattery 4020 X and HiBattery 4020 AC. It is not a standalone storage device.

How many HB-4020-S units can be added?

Up to three expansion modules can be added to each compatible main unit. Together with the main unit battery, a system capacity of up to 16,08 kWh is possible when using the Hoymiles Smart Meter.
