Hoymiles HiFlow HF-800 with 500W solar panels complete set

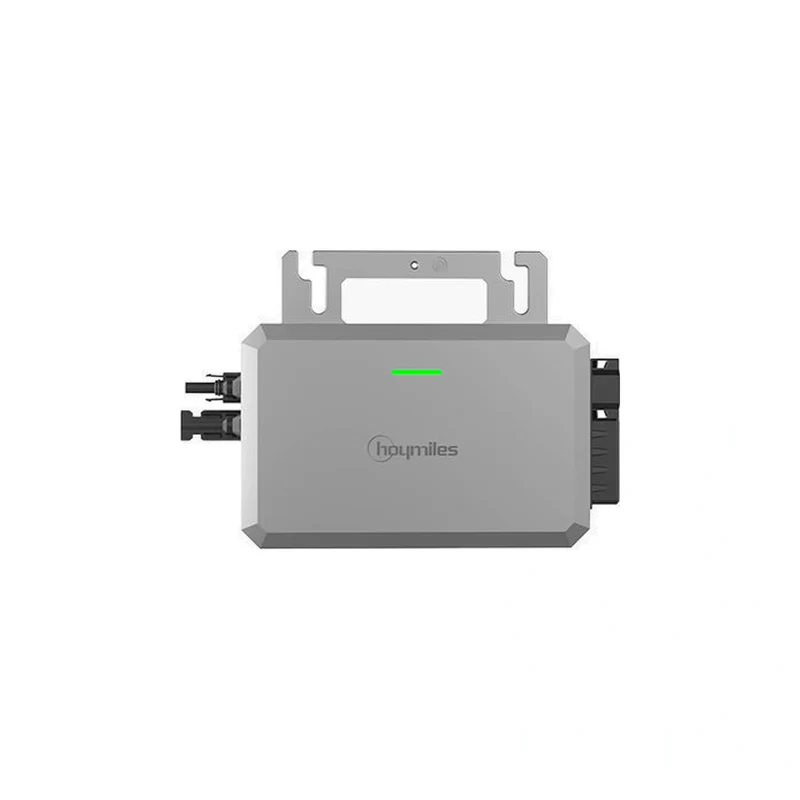

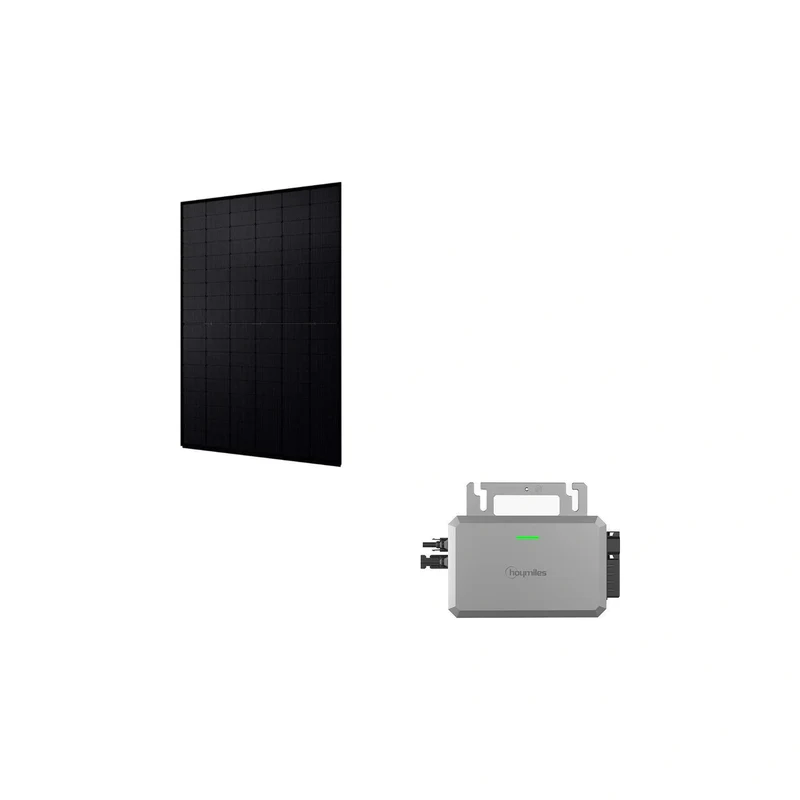

The Hoymiles HiFlow HF-800 Complete Set Connects an HF-800-WB microinverter to one or two 500W Jolywood solar modules. The inverter offers 800VA nominal output power and a shared MPPT. Series connection is supported for two modules. A suitable 5m connection cable is included; battery and mounting brackets are not. Wi-Fi and Bluetooth support monitoring.

Delivery

Produktvorteile

-- Two clearly defined sizes: One 500W module or two 500W modules allow selection based on available space.

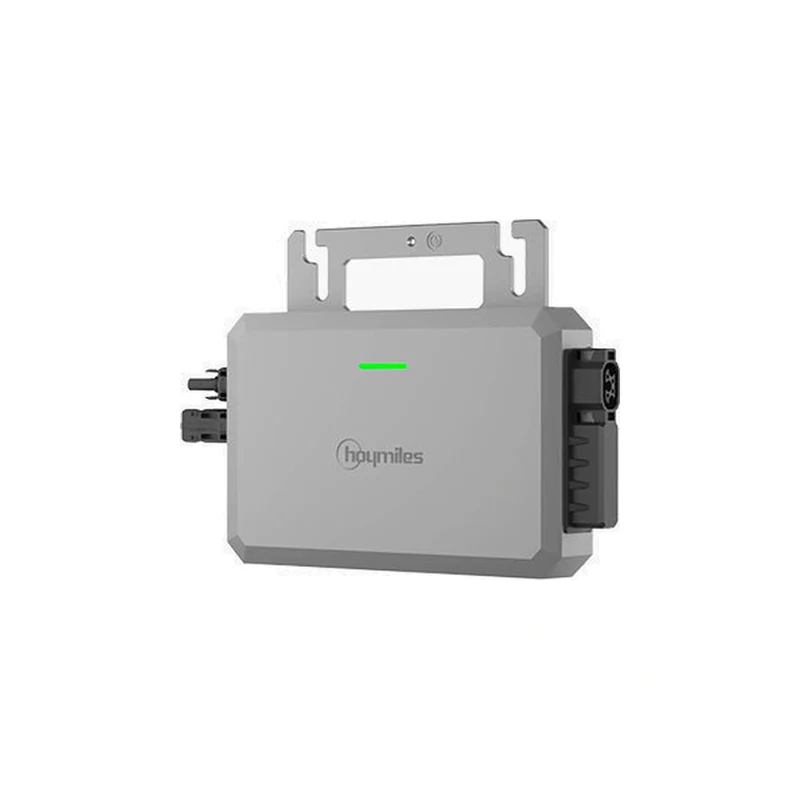

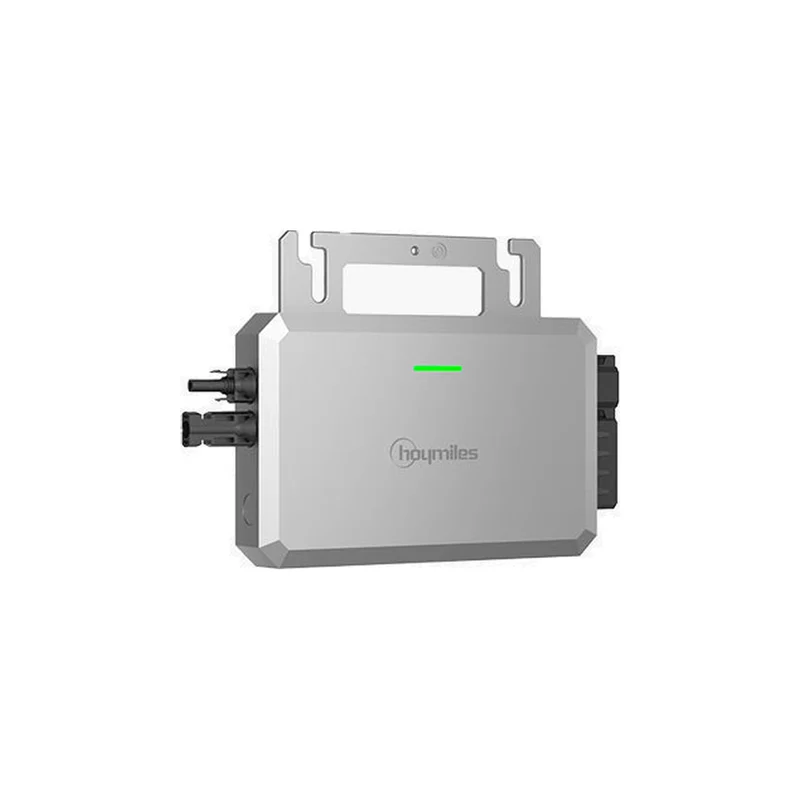

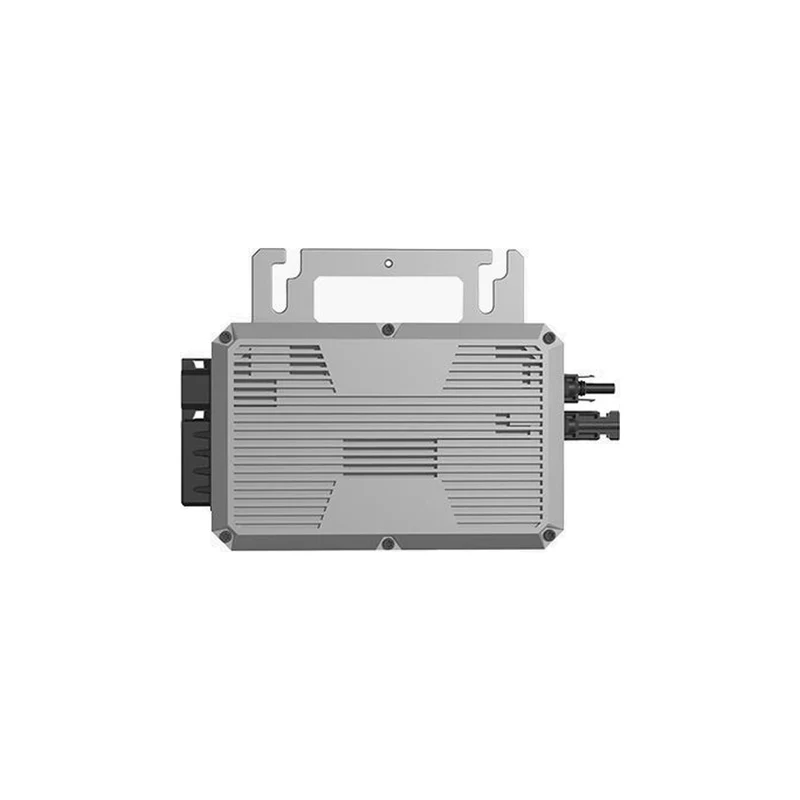

-- Compact inverter: The HF-800-WB weighs 2,1 kg and operates with natural convection without a fan.

-- Suitable connection cable: A certified 5m Flex S3 cable is included in the set; battery and module mounts are not included.

-- Monitoring without external DTU: The integrated Wi-Fi and Bluetooth communication enables setup and control via the designated app.

Compatibility

The HF-800-WB features a single-input MPPT. Two modules are connected in series according to Hoymiles specifications, not in parallel. The total open-circuit voltage must remain below 100 V even at low temperatures; maximum operating current is 16 A, and maximum short-circuit current is 25 A. Use modules with as similar an orientation and irradiance conditions as possible. The set includes the approved, compatible Flex-S3 connection cable. The HF-800-WB and HMS-800-2WB are different models; their datasheets and connection concepts should not be considered interchangeably.

Matching accessories and related products

Hoymiles HF-800-WB Hiflow Microinverter with Integrated WiFi

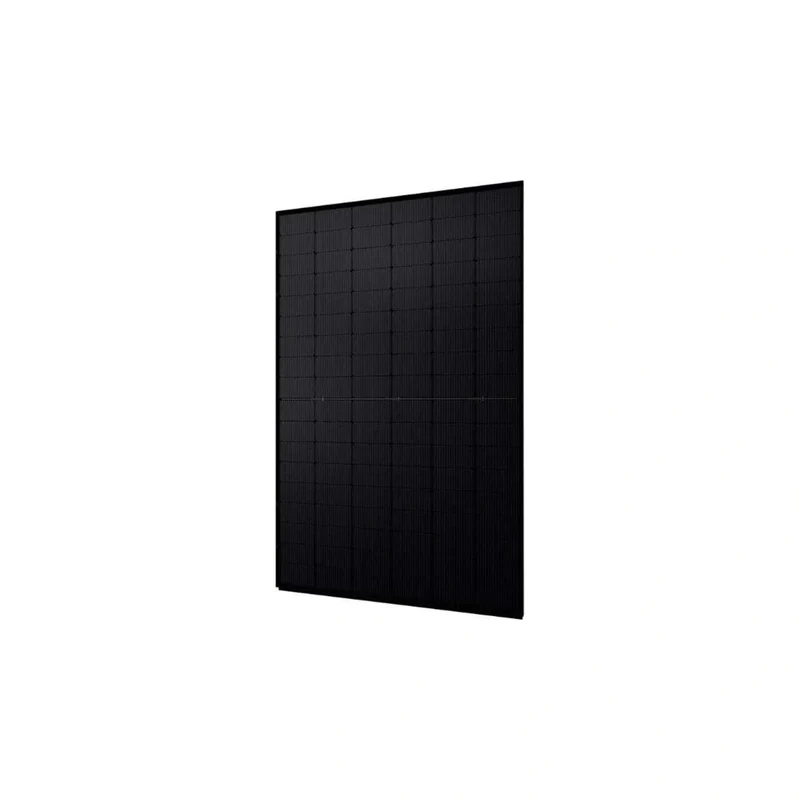

500W Jolywood Bifacial Glass-Glass Solar Panel JW-HD108N Full Black
Hoymiles HMS-1600-4WB HiFlow Inverter Throttle to 600W/800W

Why Mini Power

With Mini Power, you can tell from the selected variant whether your HF-800 set The kit contains one or two Jolywood modules. We differentiate between the modules' nominal PV power and the inverter's maximum AC power, and explain series connection for two modules. The accompanying original documentation allows you to check the mounting location, orientation, and cable routing before purchase. Appropriate mounting hardware and electrical connection testing remain essential components of your system planning; these are not replaced by the term "complete set."

Frequently asked questions

Which instructions apply to the assembly?

Use the HF-800-WB manual and the accompanying quick installation guide. The Jolywood instructions also apply for mounting and handling the modules.

What conditions apply at the installation site?

The inverter requires the clearances specified in the manual and sufficient natural ventilation. The IP67 protection rating does not replace the installation instructions.

-- Am I allowed to disconnect plug connections during operation?

No. Observe the safety and shutdown sequence in the manufacturer's manual and do not disconnect electrical connectors under load.
