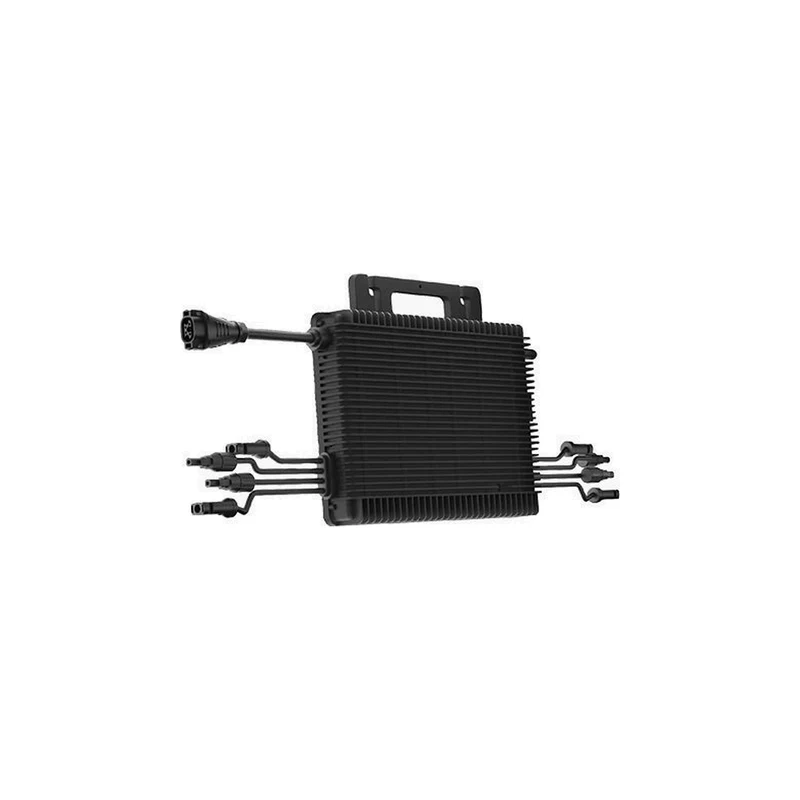

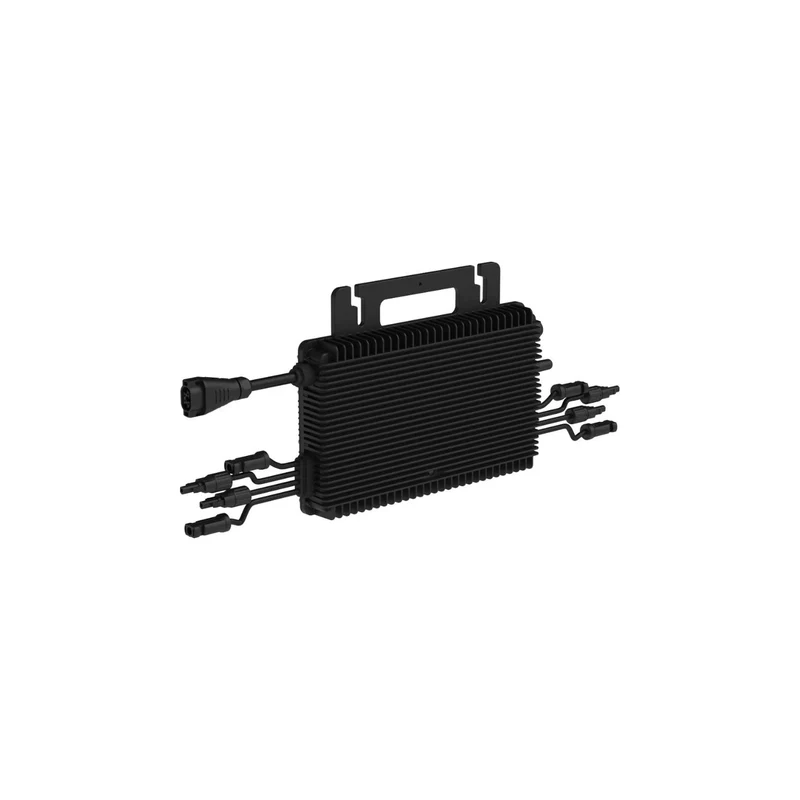

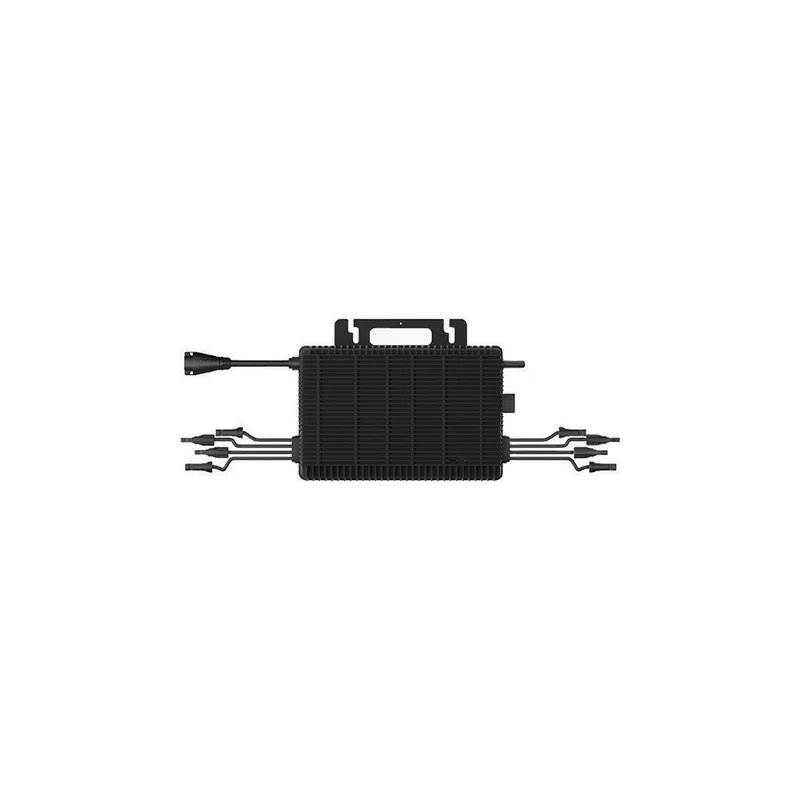

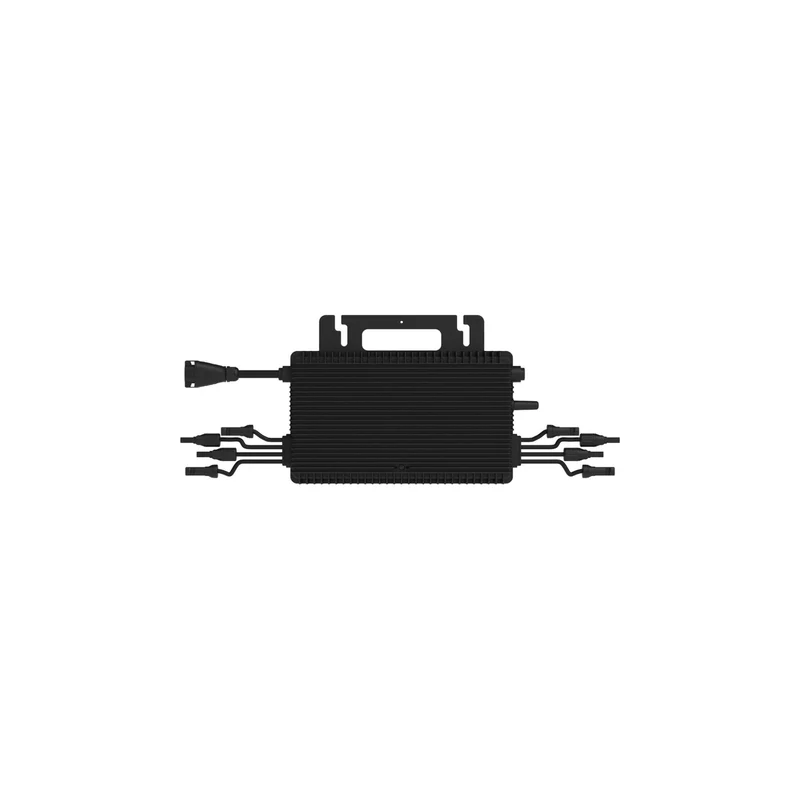

Hoymiles HiFlow HMS-1600-4WB/ HMS-2000-4WB with 500W solar panels complete set

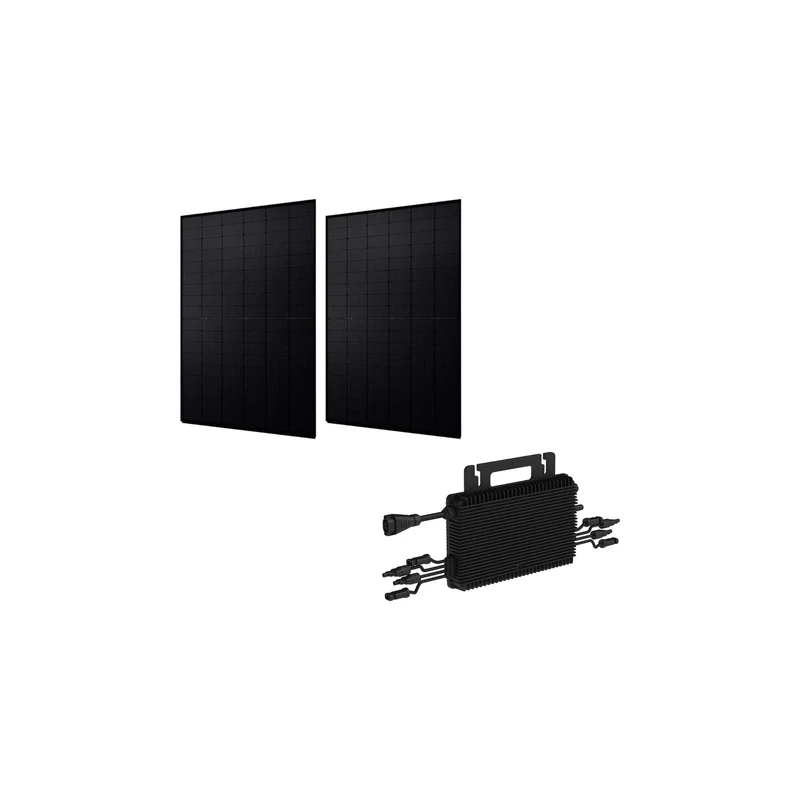

The Hoymiles HiFlow 4WB complete set This system combines two, three, or four Jolywood solar modules with the selected HMS-1600-4WB or HMS-2000-4WB controller. Four independent MPPT sensors regulate the modules individually. A suitable 5-meter Flex-S3 connection cable is included. The set does not include battery storage or mounting hardware. Wi-Fi and Bluetooth enable setup and monitoring via S-Miles Home; the connection requirements must be checked beforehand.

Delivery

Produktvorteile

-- Modular control: Four MPPTs allow separate control of the connected modules; the actual number of modules depends on your order.

-- Selection based on space requirements: Two, three or four 500 W modules result in 1000, 1500 or 2000 Wp PV nominal power.

-- Suitable AC connection: The confirmed 5m Flex S3 cable is designed to match the 4WB series offered.

-- Direct communication: WiFi and Bluetooth are integrated; no additional DTU is required to connect the inverter.

Compatibility

Each Jolywood module is assigned to a separate input of the HMS-4WB. One input is provided per MPPT; parallel connection of additional modules is not included in this set. The maximum voltage of 65 V DC, the 16–60 V MPPT range, and the current limit of the selected version must be observed. With the HMS-1600-4WB, the module current can reach the 14 A operating limit under favorable irradiance; the yield will then be limited. The confirmed AC connection is made using a suitable Flex-S3 cable. The mains connection and permissible feed-in power must be compatible with the installation; a power setting alone does not guarantee simplified connection authorization.

Matching accessories and related products

Hoymiles HMS-1600-4WB HiFlow Inverter Throttle to 600W/800W
Hoymiles HMS-2000-4WB HiFlow Inverter Throttles to 600W/800W with Cable

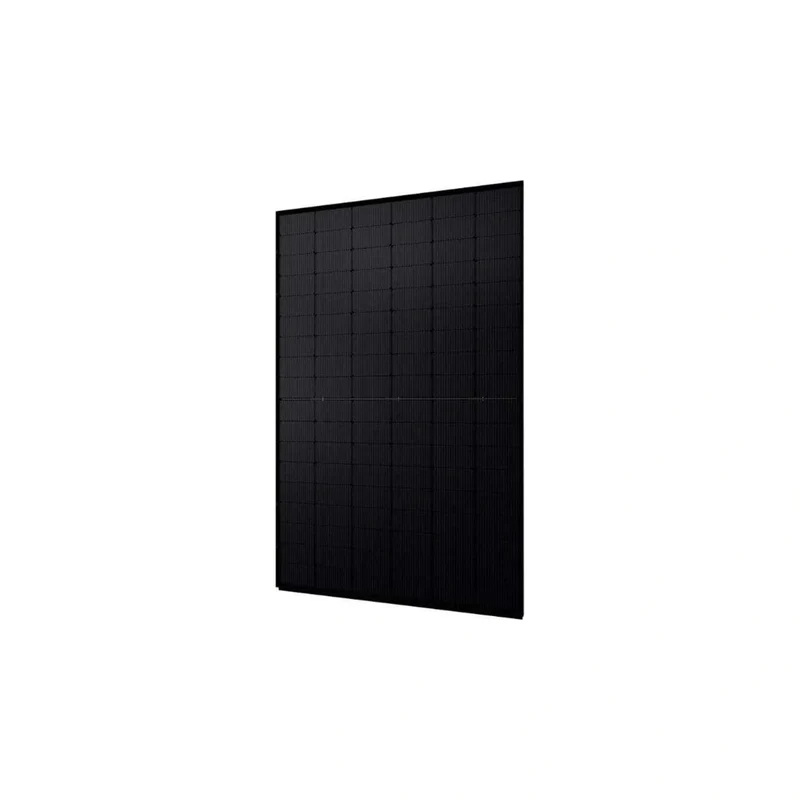

500W Jolywood Bifacial Glass-Glass Solar Panel JW-HD108N Full Black

Why Mini Power

At Mini Power you will find the offered HiFlow configurations with a clear and comprehensible assignment of inverter and number of modules. For your selection, we separate the total module power in Wp from the nominal output power of the microinverter. The linked original documents show the respective input limits and connection specifications. Plan the mounting, cable routing, and grid connection with your electrical contractor before purchasing. The included Flex-S3 cable does not replace a suitable module mounting system or an inspection of the existing electrical installation.

Frequently asked questions

Where do I find the technical limits?

The datasheet for the HMS-4WB series and the Jolywood datasheet contain relevant information. The inverter and module documents complement each other; they are not interchangeable specifications.

Does the inverter need ventilation?

Yes. The unit is cooled by natural convection. The prescribed clearances and a suitable mounting location protected from direct sunlight must be observed.

What should be taken into account during maintenance work?

Before starting any work, follow the safety and disconnection instructions in the manufacturer's manual. Electrical connections must not be disconnected under load.
