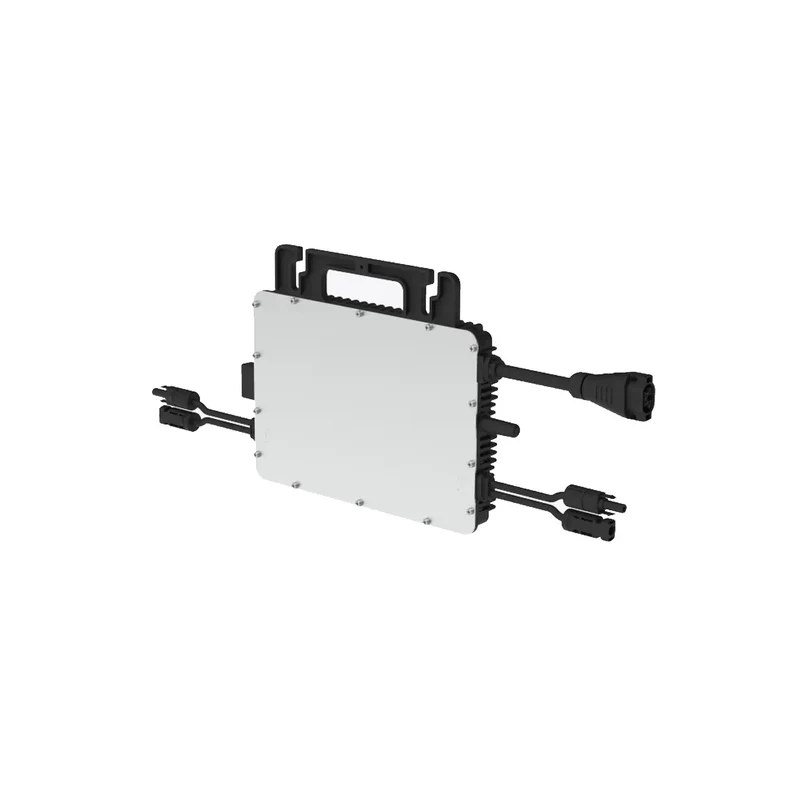

Hoymiles HMS-800-2WB Hiflow Microinverter WIFI Integrated

The Hoymiles HMS-800-2WB HiFlow Microinverter Connects two solar modules via two independent MPPTs with up to 800 VA AC output. Each input is rated for a maximum of 65 V, 14 A, and 25 A short-circuit current. Integrated Wi-Fi and Bluetooth; the included Flex-S3 Schuko cable is five meters long. This makes module assignment and grid connection straightforward.

Delivery

1× Hoymiles HMS-800-2WB HiFlow Microinverter
1× Hoymiles Flex-S3 Schuko connection cable, 5 m
1× Product, safety and commissioning instructions

Produktvorteile

-- Two independent MPPTs: Each of the two solar modules is controlled separately, not in series on a common MPPT.

-- 800 VA AC rated power: The output class is suitable for typical balcony power plant configurations.

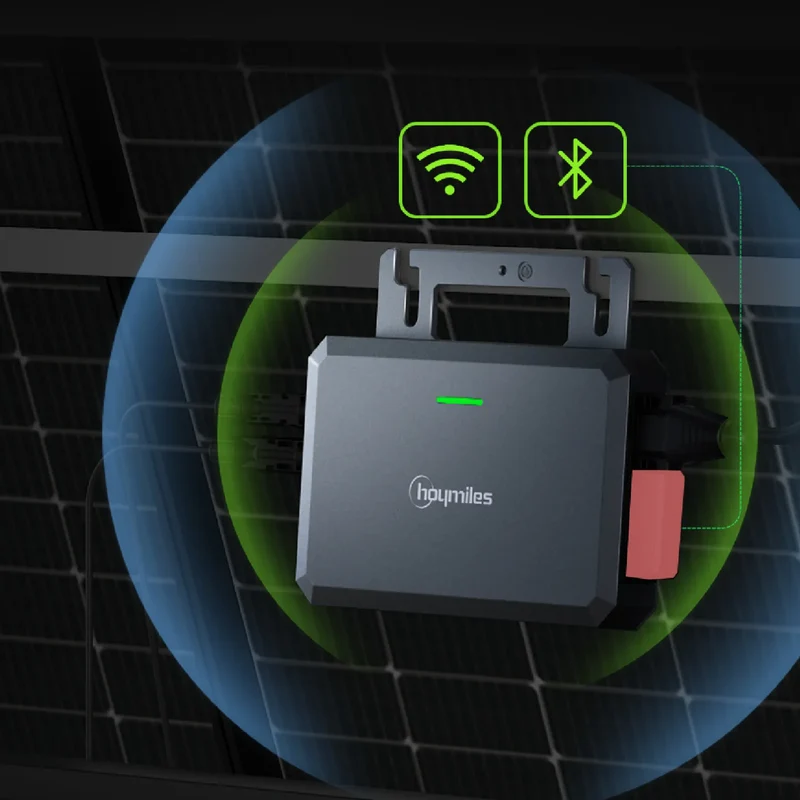

-- Integrated Wi-Fi and Bluetooth: Enables setup and monitoring without a separate DTU.

-- 5m Schuko cable included: The confirmed AC connection is already included in the scope of delivery.

Compatibility

For two PV modules whose electrical specifications per input are within 65 V, 14 A input current, and 25 A short-circuit current. Hoymiles specifies 320–540+ W as a typical module power output. Each module is connected to its own MPPT; do not connect both modules in series to a single input. The Schuko grid connection and the permissible feed-in power must comply with local regulations.

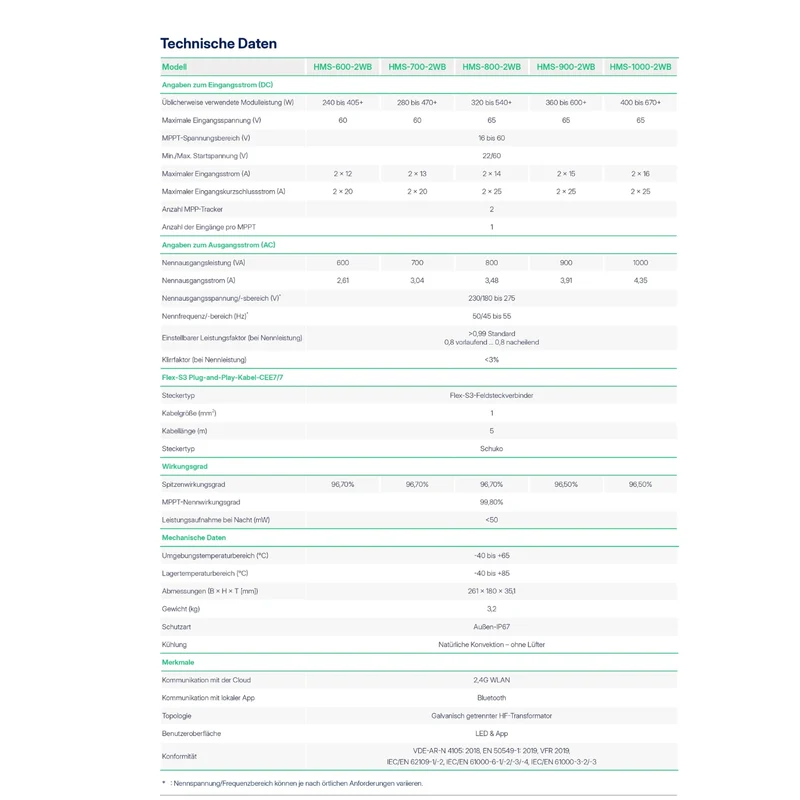

Technical information

-- Model: HMS-800-2WB
-- AC rated power: 800 VA
-- MPPT: 2 independent
-- Typical module power: 320–540+ W per input
-- Maximum DC input voltage: 65 V
-- Maximum input current: 2 × 14 A
-- Maximum short-circuit current: 2 × 25 A
-- Peak efficiency: 96,7%
-- MPPT nominal efficiency: 99,8%
-- Communication: WLAN and Bluetooth

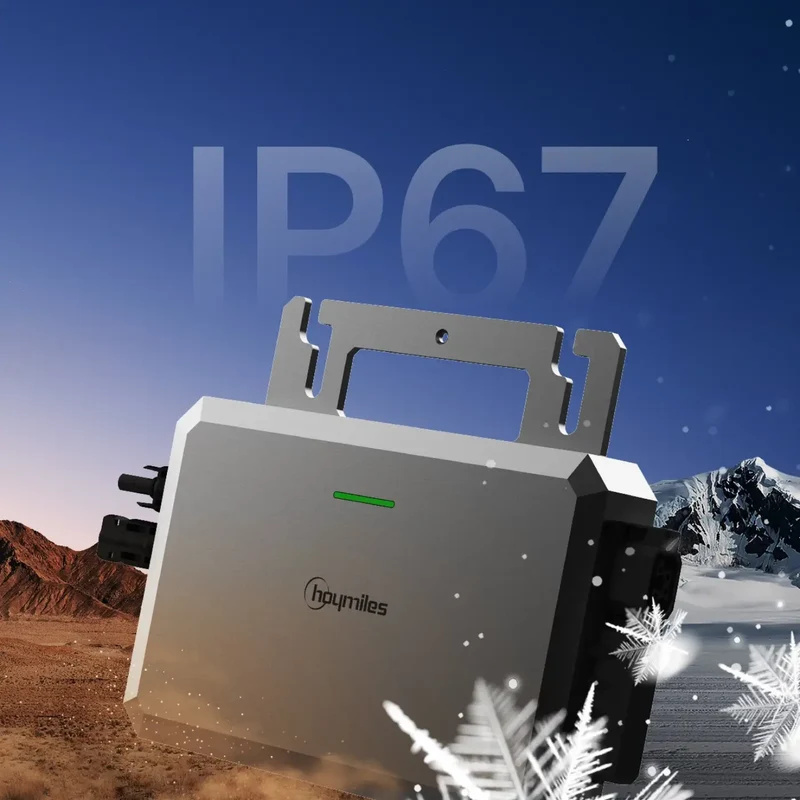

-- Protection class: IP67
-- Dimensions: 261 × 180 × 35,1 mm
-- Weight: 3,2 kg

Matching accessories and related products

-- H1Z2Z2-K solar cable 6 mm² with MC4 connectors: for PV cable routes designed to fit the system.

-- Hoymiles HMS-1600-4WB HiFlow MicroinverterAlternative for up to four PV modules.

Why Mini Power

Mini Power shows at Hoymiles HMS-800-2WB The values ​​relevant to the purchase decision are summarized below: two independent MPPTs, 800 VA, the DC limits per input, and the included 5-meter Schuko cable. Outdated information regarding a single MPPT or a series connection is not included. This allows you to check the number of modules, electrical specifications, and connection type against your planned balcony power plant before ordering.

Frequently asked questions

Does the HMS-800-2WB have one or two MPPTs?

It has two independent MPPTs. Each connected solar module is controlled separately.

-- What module values ​​must not be exceeded per input?

Maximum 65 V input voltage, 14 A input current and 25 A short-circuit current per input.

Is an AC power cable included?

Yes. The confirmed scope of delivery includes a five-meter-long Hoymiles Flex-S3 Schuko connection cable.
