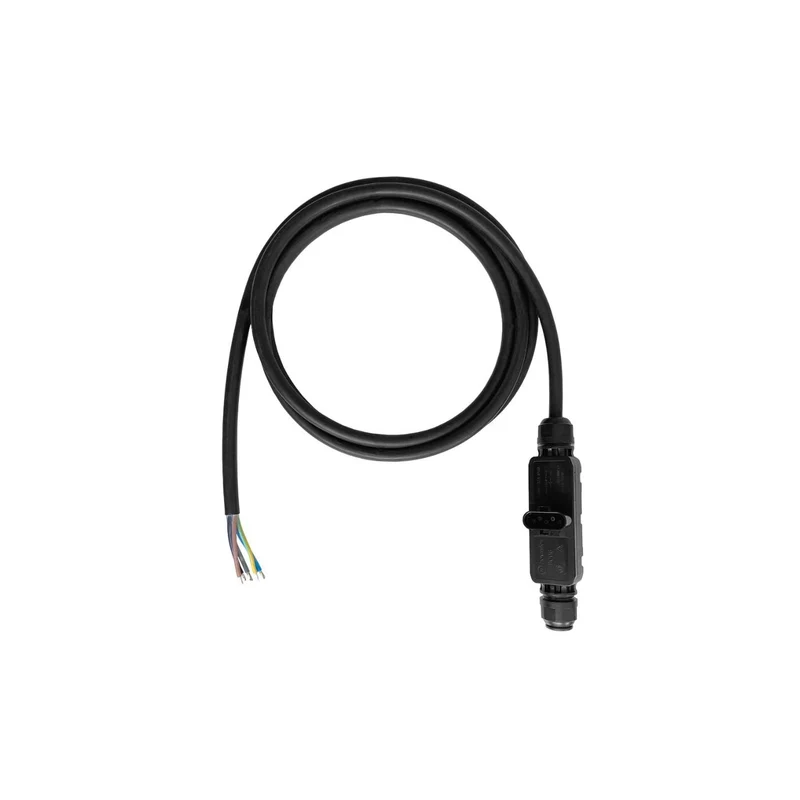

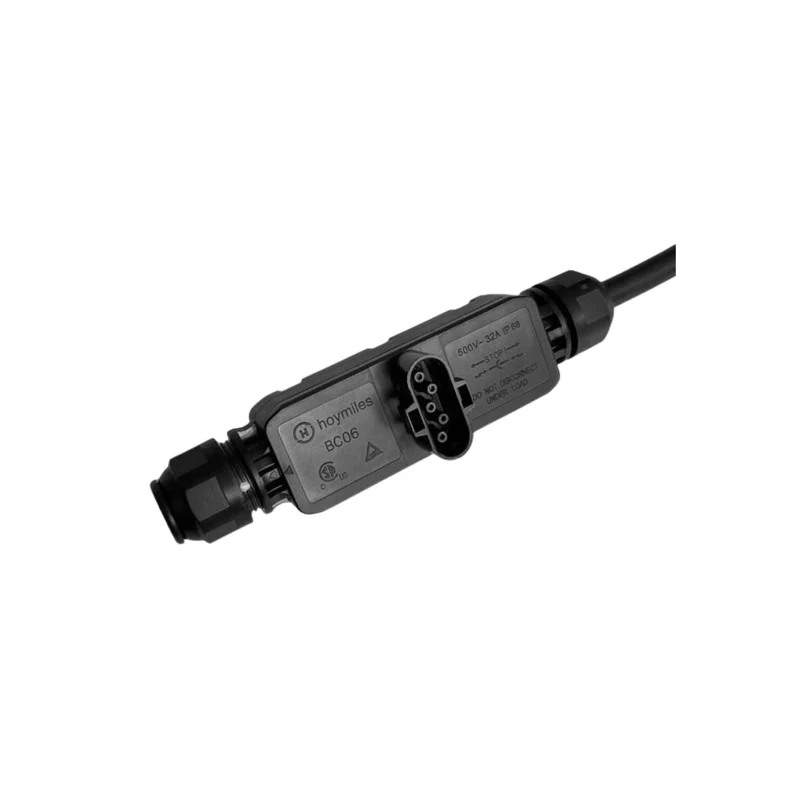

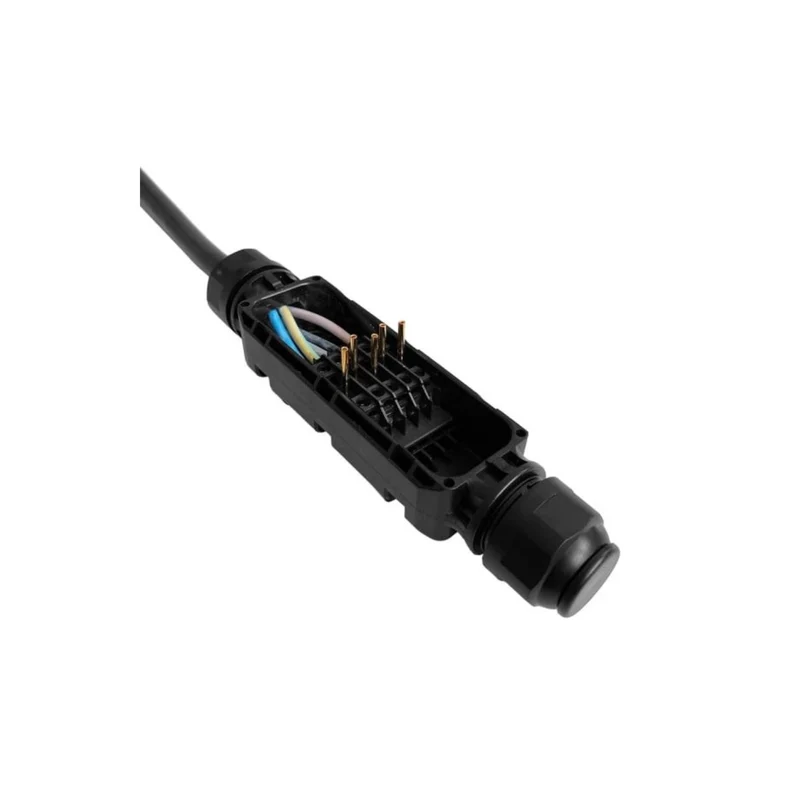

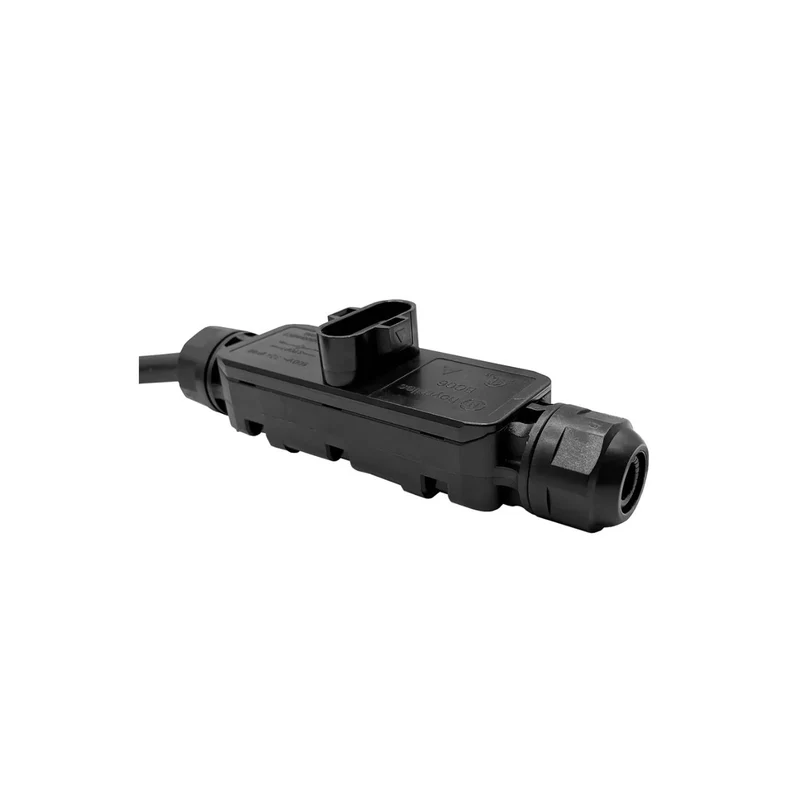

Hoymiles T-node with 3 m AC cable

Hoymiles T-node with 3 m AC cable.

Delivery:

1 × Hoymiles T-junction box with pre-assembled 3 m AC cable

The T-junction set with a 3-meter AC connection cable is an essential connecting element for the professional installation of Hoymile's HMT microinverters in grid-connected photovoltaic systems. It enables the safe transfer of the generated alternating current from the inverter to the household or public power grid.

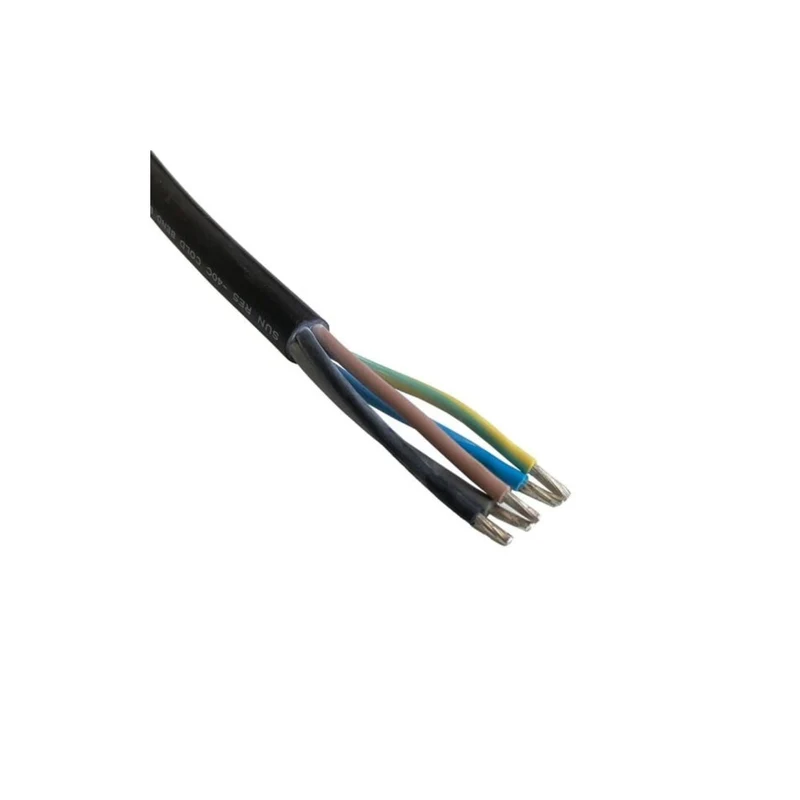

The open cable end is prepared for the individual installation of a suitable AC plug connection (e.g. Schuko or Wieland), depending on the specific connection type of the system.

Important note: The electrical connection to the 230 V mains may only be carried out by a certified electrician in accordance with the applicable VDE guidelines.

Product features:

• Optimized for Hoymile's HMT microinverters: Each HMT series inverter requires its own T-node with AC connection cable for grid connection.

• Pre-assembled 3 m AC cable: Flexible installation with open cable end for individual installation of a suitable mains plug connection (e.g. Schuko, Wieland).

• Modular system accessories: Depending on the system configuration, additional components such as end caps, unlocking aids and separation aids are required.

• Secure and standard-compliant network connection: The mains connection must be carried out by a certified electrician and complies with the applicable VDE specifications.

• Versatile useable: Suitable for both coupled systems with multiple microinverters and single systems.

Example configurations for PV systems with HMT inverters

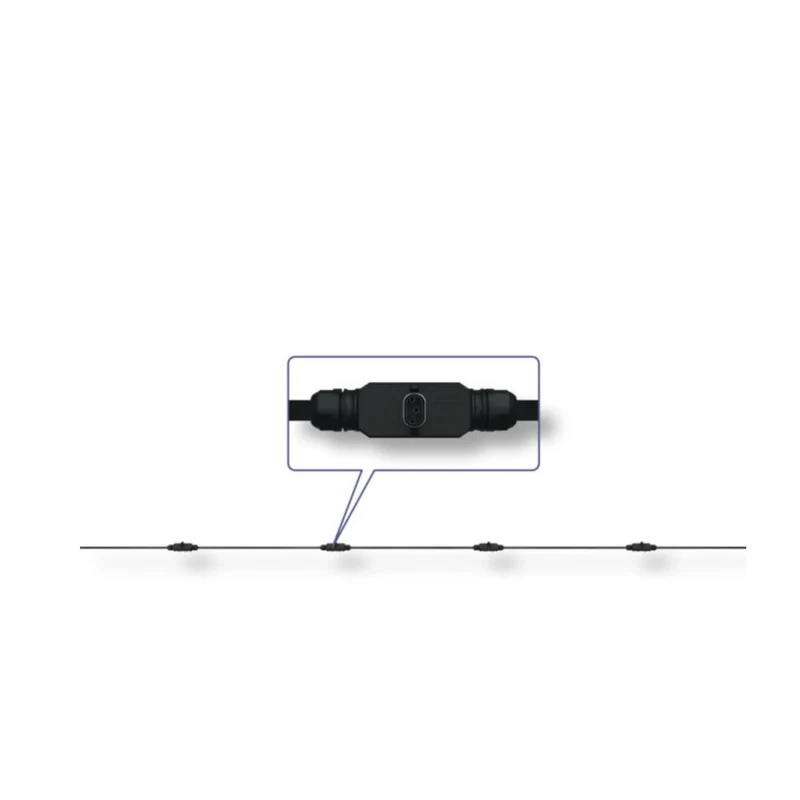

Variant A: Series connection of 4× HMT-2250 in a complete system

• 4 × T-nodes with 3 m AC cable

• 1 × unlocking aid

• 1 × end cap

• Optional: 1 × separating aid

Variant B: Four independent PV systems, each with one HMT-2250

• 4 × T-nodes with 3 m AC cable

• 1 × unlocking aid

• 4 × end caps

• Optional: 1 × separating aid
