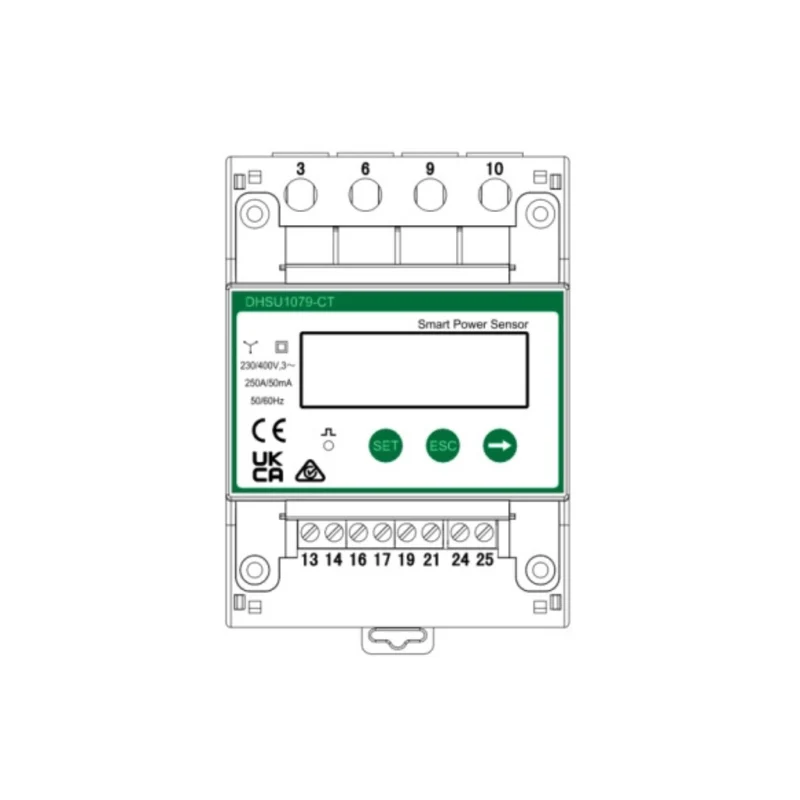

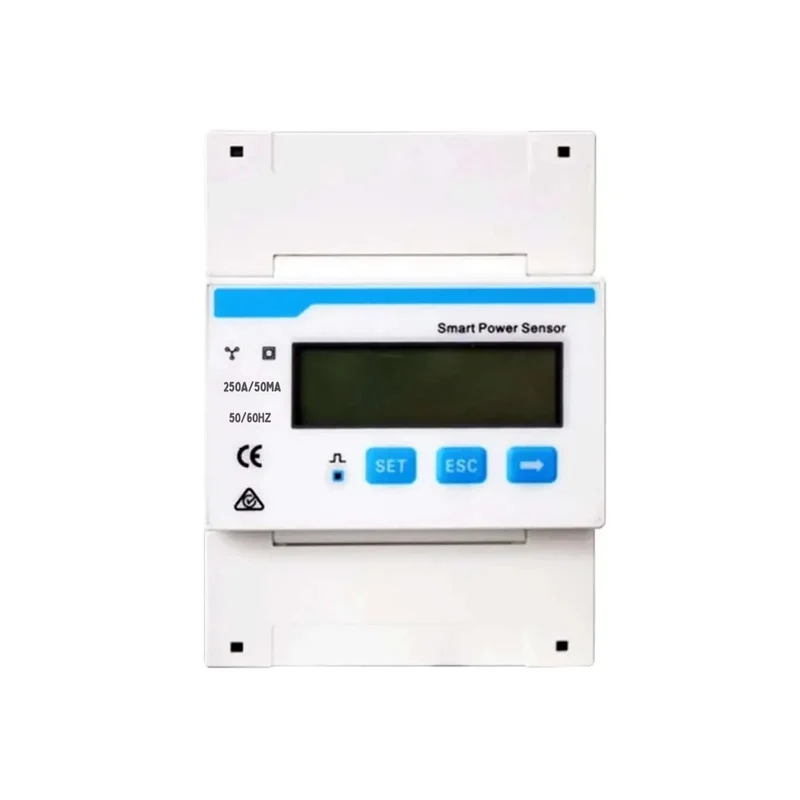

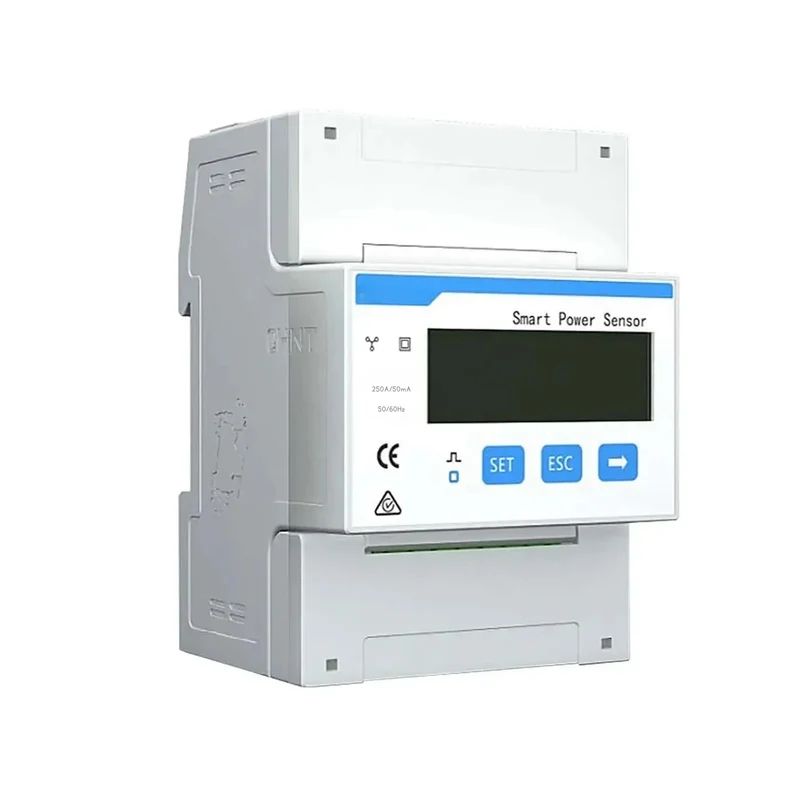

HUAWEI Smart Power Sensor DHSU1079-CT 250A/50mA

The HUAWEI Smart Power Sensor DHSU1079-CT is a three-phase intelligent Industrial-grade power sensor For the precise measurement and monitoring of electrical parameters. It was specifically designed for use in PV systems, Energy storage systems (ESS) and EV charging infrastructure developed and enables reliable analysis of electrical measurement data as well as precise evaluation of performance values ​​in complex applications.

Thanks to integrated Current transformer (250 A/50 mA), one Measurement accuracy class 1 and RS485 communication The sensor can be seamlessly integrated into existing energy management and inverter systems. Its compact design allows for easy mounting. 35 mm DIN rails.

Product features:

• -- Three-phase current measurement: Measuring range from 0–250 A via integrated 250 A/50 mA current transformer
• -- High measurement accuracy: Class 1 accuracy (±1%) for precise energy and performance data
• -- Bidirectional energy measurement: Separate recording of imported and exported work
• -- Real-time data display: Measurement of total and phase power, voltage, current, power factor (PF) and frequency
• -- RS485 communication: Modbus RTU interface with multiple baud rates for stable data transmission
• -- Flexible system integration: Suitable for three-phase three- and four-wire systems (3P3W / 3P4W)
• -- LCD display: Clear display of all relevant measured values ​​directly on the device
• -- High operational reliability: Integrated fuse and thermistor per phase for short-circuit protection
• -- Compact DIN mounting: Space-saving housing for 35 mm DIN rails
• -- Industry certified: CE, RCM and UKCA compliant, operating temperature −25 °C to +60 °C

The HUAWEI Smart Power Sensor DHSU1079-CT It enables precise monitoring of electrical parameters and supports the efficient use of electrical energy in various applications. The clear display and stable communication facilitate both commissioning and long-term operation.

With its robust construction, high measuring accuracy and industrial reliability, the HUAWEI Smart Power Sensor DHSU1079-CT The ideal solution for commercial and industrial applications where precise performance monitoring and reliable data acquisition are required.
