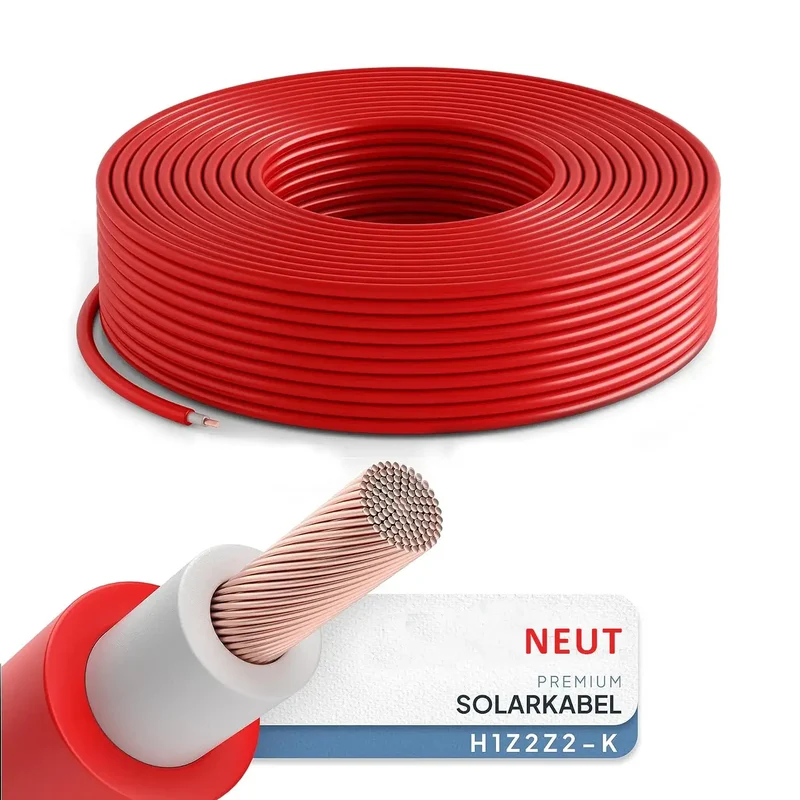

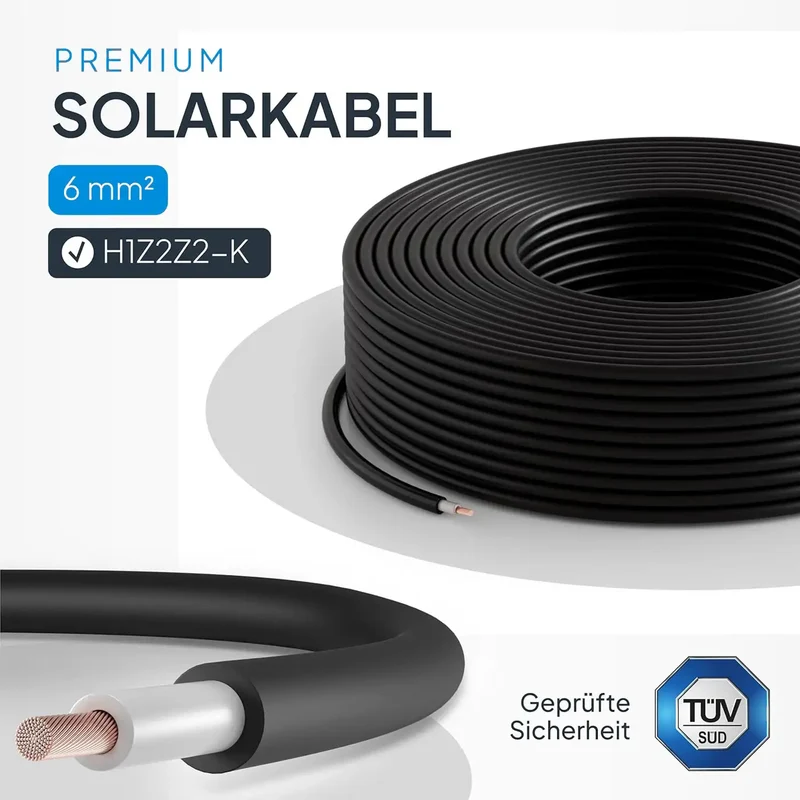

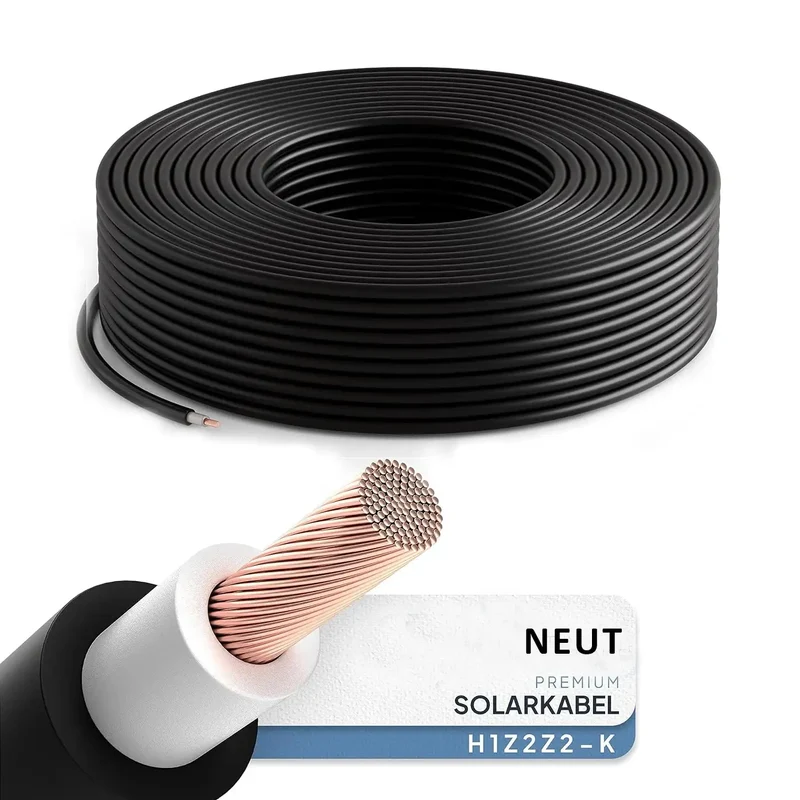

NEUT solar cable H1Z2Z2-K 6mm2 black/red 10m 25m 50m 100m

6 mm solar cable Suitable for direct burial. Solar cable H1Z2Z2-K 6 mm² black/red.

This product has 3 variants : Black red and Black red. If you Black or red we will send a black or red cable. If you Black red we send a black cable and a red cable.

Features:

• -- Halogen-free according to DIN VDE 0285-525-1 / DIN EN 50525.1 Appendix B / DIN EN 60754-1 / IEC 60754-1
• -- flame retardant according to IEC 60332-1-2

• -- Smoke density according to IEC 61034
• -- Weathering/UV resistance according to EN 50618 appendix E
• -- Short circuit temperature 200°C/5s
• -- Short circuit proof up to 200°C thanks to double insulation
• -- Expected service life: 25 years
• -- Hydrolysis and ammonia resistant
• -- temperature rangeh: -40°C to +90°C / max.Temp. on the conductor +120°C
• -- nominal voltage: AC 1000V / DC 1500V
• -- Test alternating voltage: AC 6,5kV

• -- minimum bend radius: not moved approx. 5 x outside ø

• -- Available lengths: Solar cable 6mm2 10m, Solar cable 6mm2 25m, Solar cable 6mm2 40m, Solar cable 6mm2 50m, Solar cable 6mm2 70m, Solar cable 6mm2 80m, Solar cable 6mm2 100m

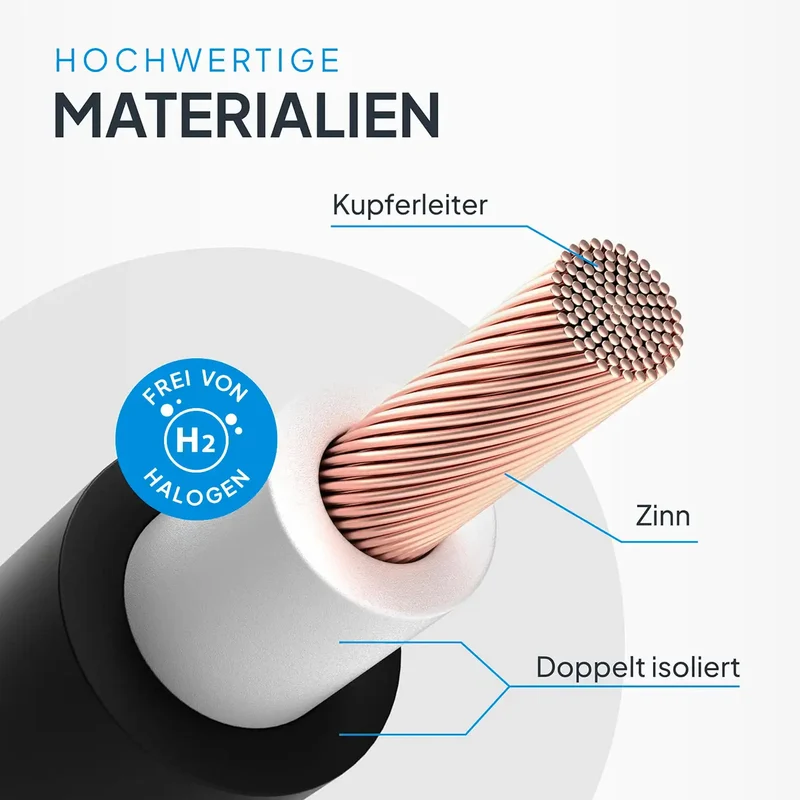

Construction

• -- Tinned copper wire, finely stranded according to DIN VDE 0295 class 5 and IEC 60228 cl. 5
• -- Core insulation: cross-linked special compound
• -- Coat: cross-linked special compound
• -- sheath color: black red
• -- Excellent solar cable suitable for the Renewal.
• -- The solar cable does not contain MC4, if a product with MC4 connector is required, please visit our other link.

Here at Mini Power you can freely choose the color of the solar cable, black and red Solar cable diameter is 6 mm and you can also freely choose the length:

Solar cable 6mm2 10m, solar cable 6mm2 25m, solar cable 6mm2 40m, solar cable 6mm2 50m, solar cable 6mm2 70m, solar cable 6mm2 80m, solar cable 6mm2 100m

The goods are tailored to your personal needs and do not fall within the scope of the cancellation.
