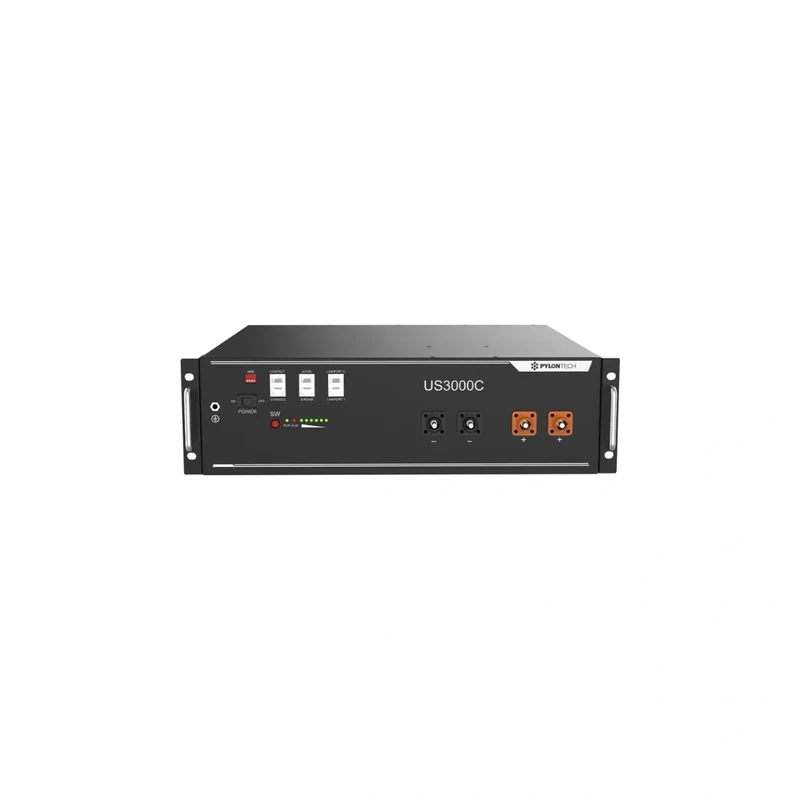

Pylontech US3000C 3,55 kWh LiFePO4 battery

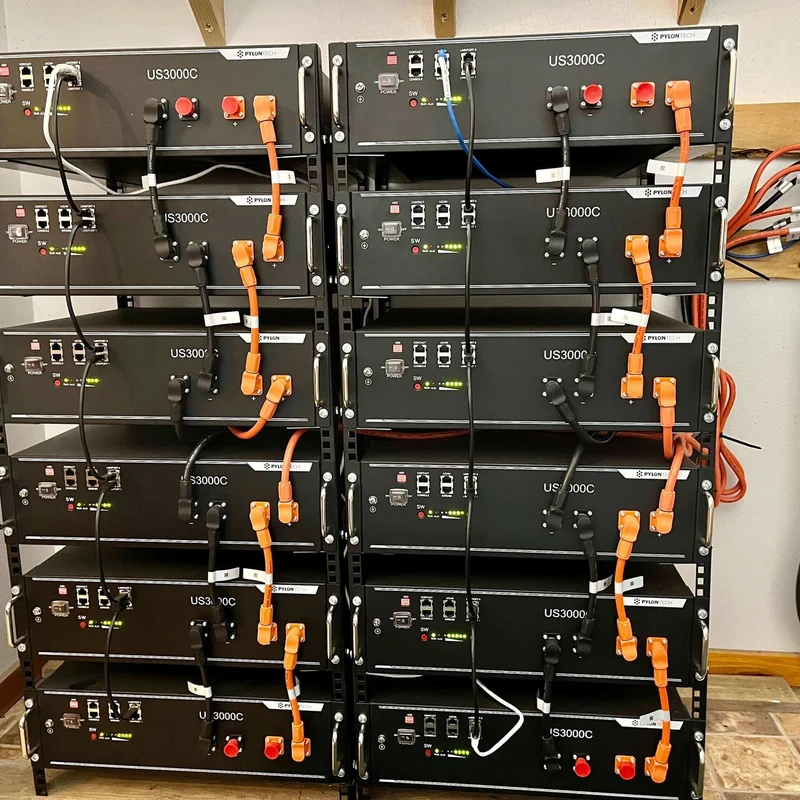

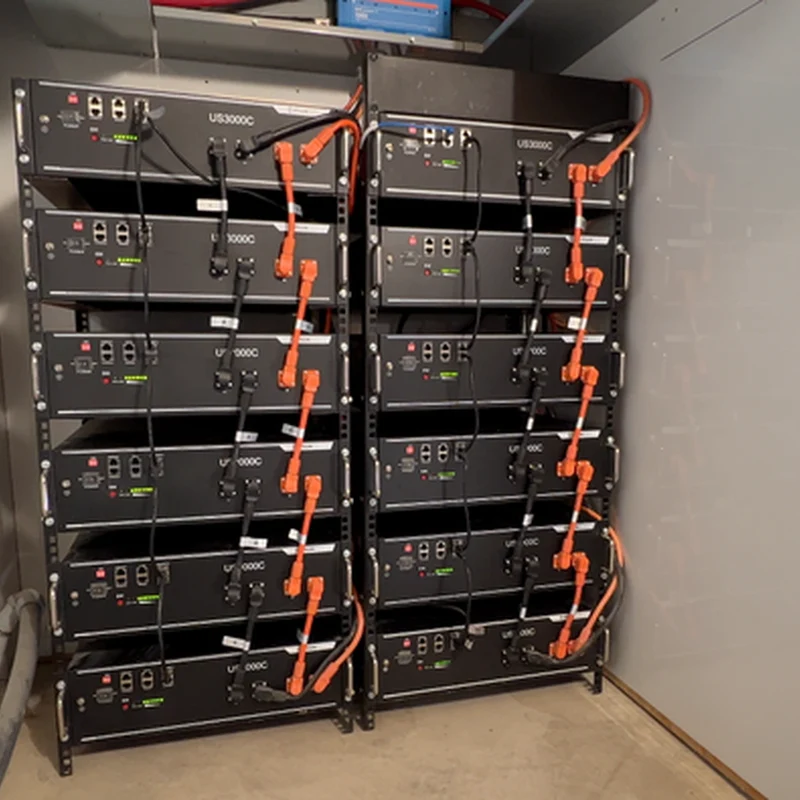

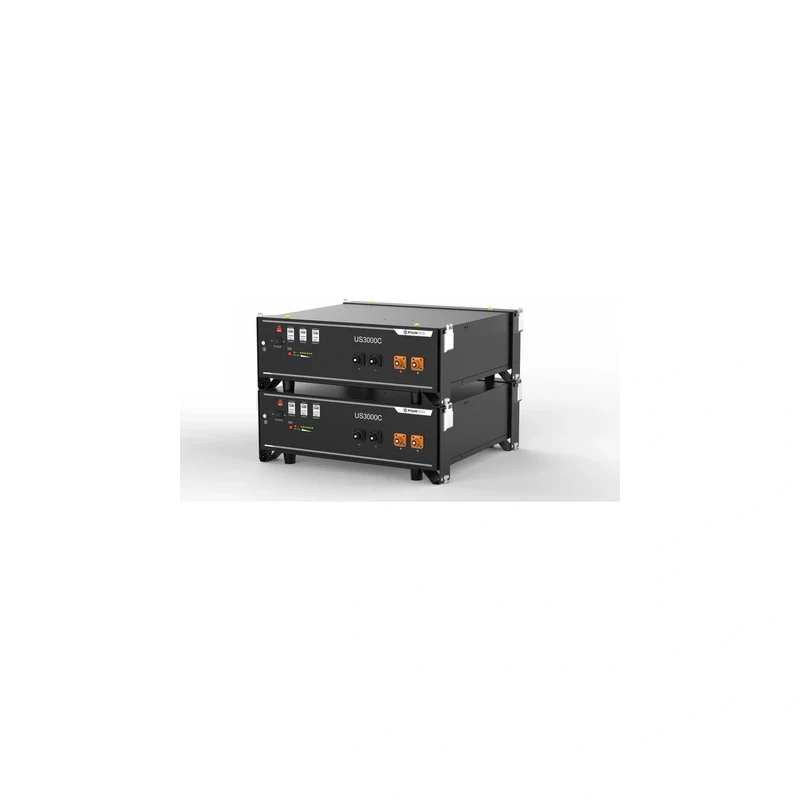

The Pylontech US3000C This is a modular 48V LiFePO4 battery storage system with a nominal energy capacity of 3,552 kWh and an integrated battery management system. CAN and RS485 interfaces enable communication with specifically approved inverters. The 32 kg module is designed for protected indoor environments and compatible 19-inch racks. Multiple modules can be operated in parallel according to the manufacturer's specifications; inverters, racks, and external connection cables are required and sold separately.

Delivery

1× Pylontech US3000C battery module

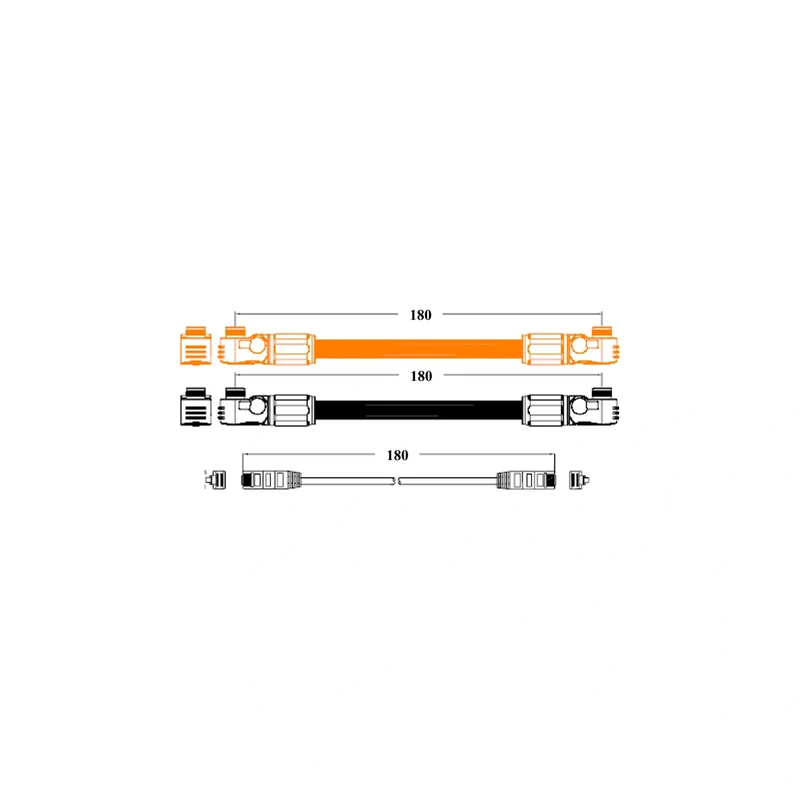

2× short 4-AWG power cables for module connection, each 180 mm
1× RJ45 communication cable for module connection, 180 mm
1 x 10 AWG grounding cable, 1.000 mm
1× User manual

Produktvorteile

-- Modular 48V storage. 3,552 kWh nominal energy per module allows for demand-oriented planning. Future expansion requires a suitable system design.

-- Integrated battery management. The BMS monitors cell voltage, current, and temperature. Protection functions and cell balancing support the intended operation.

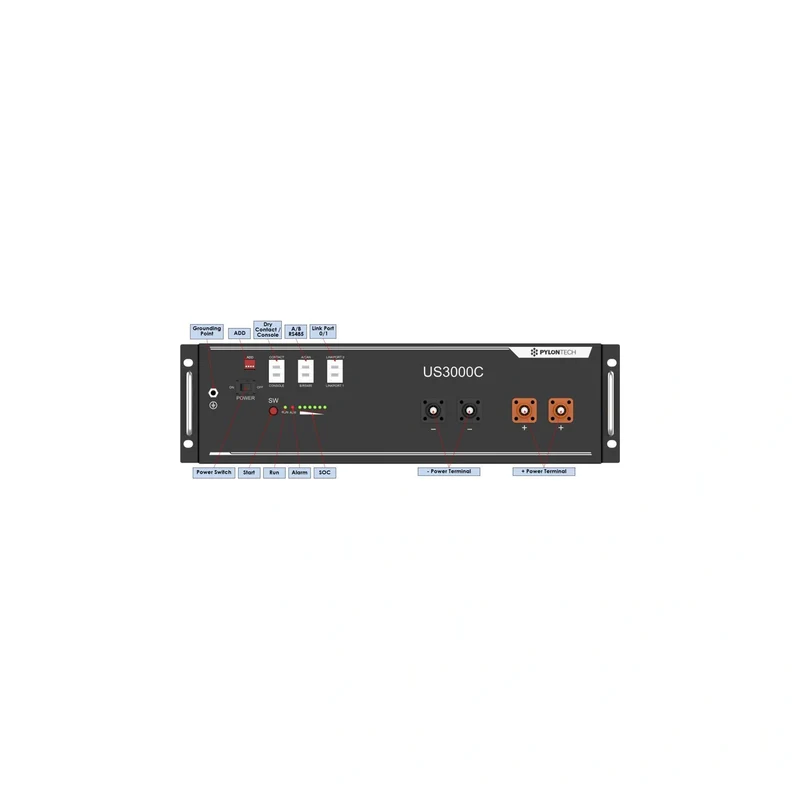

-- Communication with the inverter. CAN and RS485 support system integration. Crucial factors are the approved inverter combination, firmware, and correct cable configuration.

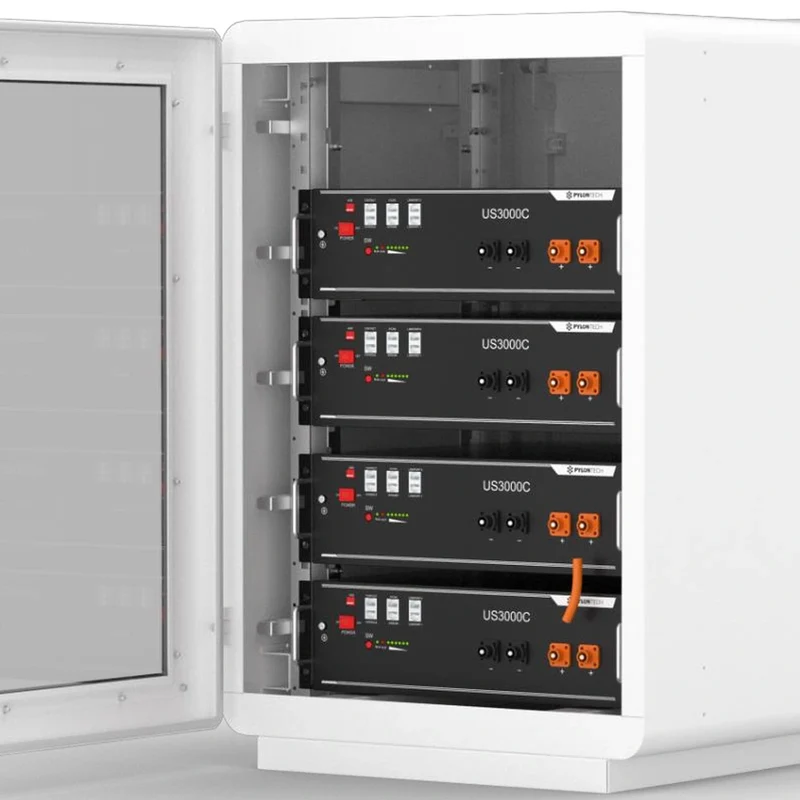

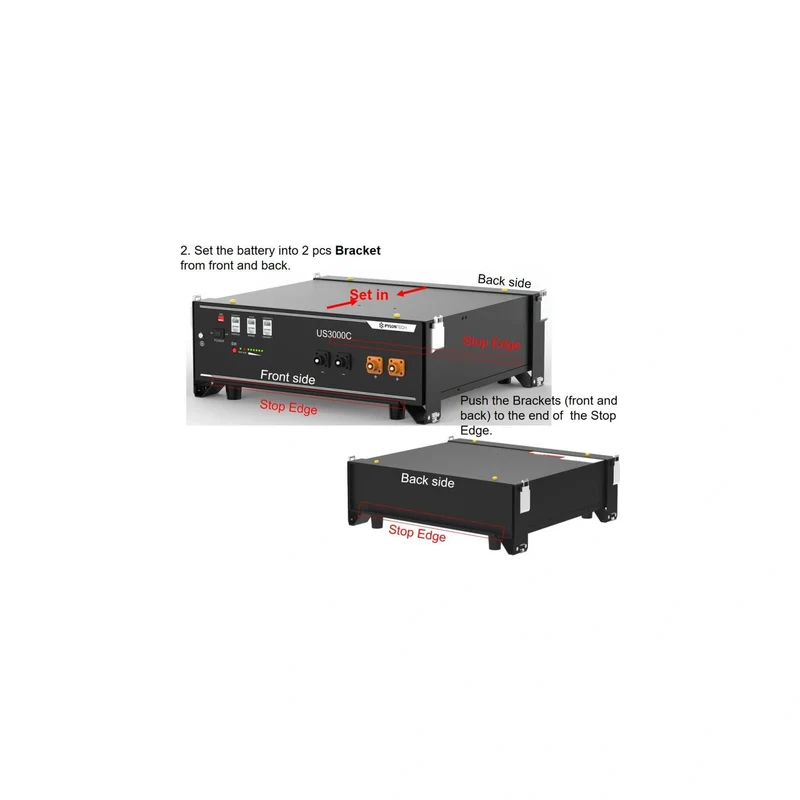

-- Space-saving rack format. The module is suitable for compatible 19-inch racks. Mounting brackets or cabinet, as well as the external inverter cable set, must be selected separately.

Compatibility

For use only with explicitly approved 48V battery systems. Before ordering, please check the current Pylontech compatibility list, inverter model, firmware, wiring diagram, and minimum number of modules. Do not connect directly to solar panels or the AC grid; do not connect in series. Installation and connection must be performed by a qualified electrician. Rack, brackets, and external inverter cable set are not included.

Matching accessories and related products

You will find smaller and larger storage options of the same brand. Pylontech US2000C 2,4 kWh LiFePO4 storage including BMS and Pylontech US5000C LiFePO4 battery 4,8 kWhThis is a product comparison, not a general approval for mixed operation.

Why Mini Power

Mini Power offers you Pylontech US3000C the essential information for selection regarding storage capacity, system voltage, communication and Delivery Clearly laid out. The linked manufacturer documents will assist you with planning in collaboration with your installation company. We differentiate between included module connections and separately required accessories and indicate different document revisions. Before purchasing, compare your intended inverter and existing installation with the approvals. If you have any questions, Mini Power can assist you with your selection based on specific model information.

Frequently asked questions

What is the difference between nominal energy and usable energy?

3,552 kWh refers to the nominal energy. According to the manual, with system communication enabled and a 95% depth of discharge, approximately 3,374 kWh are usable.

How difficult is a module?

A US3000C module weighs 32 kg. Transport and installation must take this weight into account.

Why do published measurements differ?

The manufacturer's data sheet 2024 specifies a depth of 410 mm, while the older operating instructions state 420 mm. For tight installation spaces, the specific device version must be confirmed before ordering.
