FRStäubli MC4-EVO 2 plug and socket for solar systems 4-6 mm²
Détails du produit
The Stäubli MC4-EVO 2 connectors It is among the highest quality and most reliable PV connectors for modern photovoltaic systems. Thanks to the proven Stäubli MULTILAM technology provides the MC4-EVO 2 connectors a particularly low contact resistance and consistently reliable power transmission. With a system voltage of up to 1500 V DC and the protection type IP68K It is ideally suited for demanding outdoor PV applications.

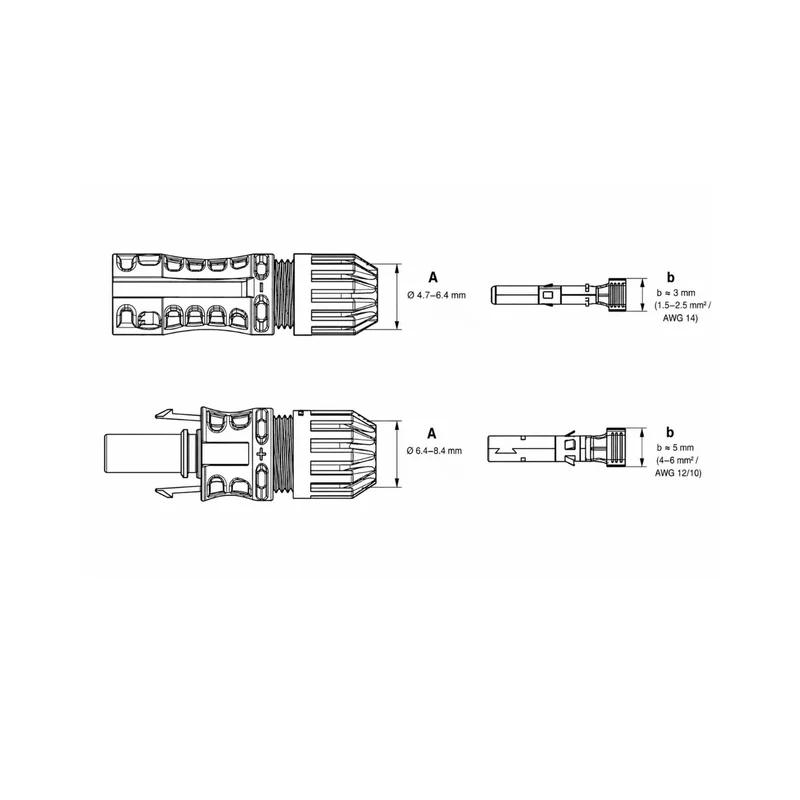

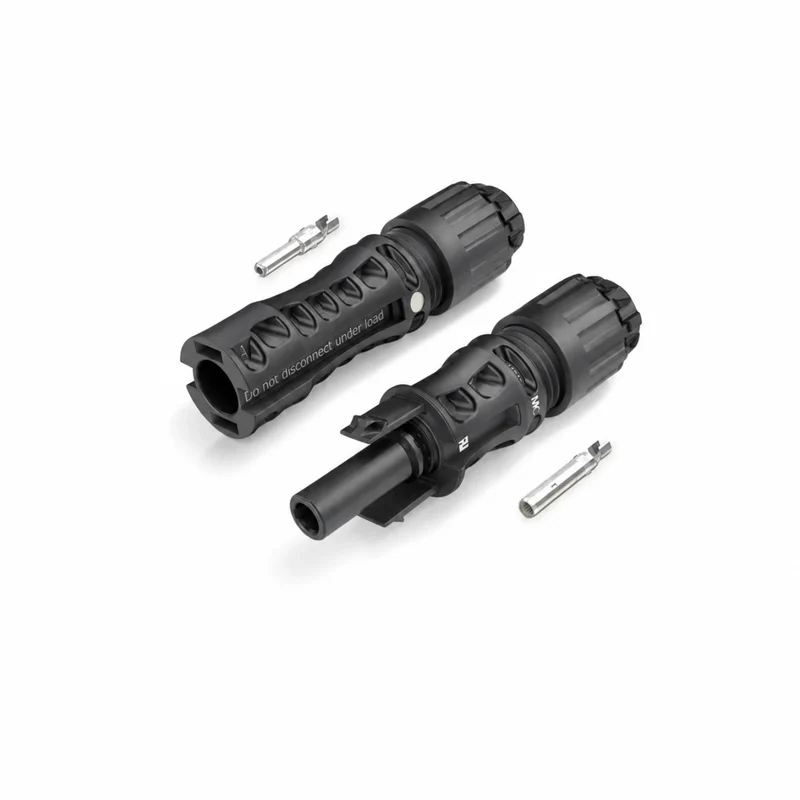

The Stäubli MC4-EVO 2 connector set It consists of a male and a female connector. It is for PV cables with a conductor cross-section of 4 mm² to 6 mm² suitable and enables a fast, safe and durable connection between solar modules and other components of the photovoltaic system.
Features:
- -- Original Stäubli MC4-EVO 2 connectors
- -- Proven MULTILAM technology for low contact resistance
- -- System voltage up to 1500 V DC
- -- Protection class IP68 – dustproof and waterproof
- -- Suitable for PV cables with 4 mm² to 6 mm²
- -- UV and temperature resistant materials for long-term outdoor use
- -- Fast and secure installation for reliable PV connections
The Stäubli MC4-EVO 2 connectors is a reliable solution for high-performance photovoltaic systems and impresses with high safety, robust workmanship and long-term connection quality.
