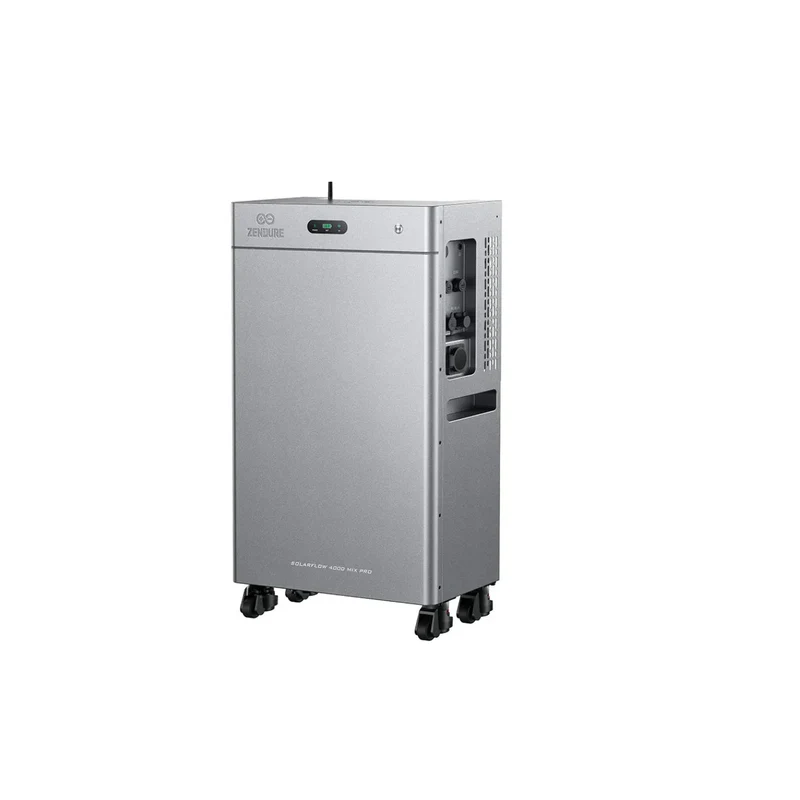

Zendure SolarFlow 4000 Mix Pro 8 kWh Hybrid Home Storage System

The Zendure SolarFlow 4000 Mix Pro 8 kWh Hybrid Home Storage System It combines an 8 kWh LFP energy storage system with DC- and AC-coupled solar energy utilization. Up to 13 kW PV input, 4 kW bidirectional AC power, and an off-grid output with 3.680 W continuous power enable flexible energy flows. LAN and RS485 support integration into compatible measurement, control, and energy environments within the approved system boundaries.

We are an officially authorized Zendure-Retailers in Germany – you enjoy full warranty and service benefits.
Warranty and service processes may differ for purchases from other sellers; serial number validation and current information are decisive. Zendure-Conditions. official Zendure-Notice

Delivery

1 × Zendure SolarFlow 4000 Mix Pro
1× Connection and mounting material included with the device, as per the manufacturer's package
1× Operating and safety instructions

Produktvorteile

-- 8 kWh storage capacity: Provides a high energy reserve for households and defined backup power consumers.

-- Up to 13 kW PV input: Combines two MPPT paths with additional AC-coupled PV power.

-- 4 kW bidirectional AC power: Supports controlled charging and discharging in the home network.

-- Separate off-grid output: Provides up to 3.680 W of continuous power for suitable devices.

-- Fast switching: Approximately 10 ms switching time for compatible backup power applications.

Compatibility

Suitable for professionally planned single- or three-phase residential energy systems according to the manufacturer's specifications. PV strings, existing inverters, metering systems, and communication components must explicitly comply with the electrical limits and interfaces of the SolarFlow 4000 Mix Pro. General compatibility with Zendure-Extension batteries from other product lines are not required.

Technical information

-- Storage capacity: 8 kWh
-- Battery technology: LFP
-- PV input: up to 13 kW total
-- MPPT PV input: up to 8 kW
-- AC-coupled PV power: up to 5 kW
-- Bidirectional AC power: up to 4 kW
-- Off-grid output: up to 3.680 W, briefly up to 7.200 W
-- Communication: LAN and RS485

Matching accessories and related products

-- Zendure SolarFlow 2400 Pro: a more compact bidirectional AC storage solution as an alternative for lower power and capacity requirements.

-- Zendure SolarFlow 2400 Pro complete system: pre-configured alternative within the SolarFlow family; not to be understood as an extension battery for the Mix Pro.

Why Mini Power

Mini Power poses challenges in complex situations Hybrid storage not only performance values, but also System boundaries and installation requirements are presented transparently. SolarFlow 4000 Mix Pro It is particularly important to clearly distinguish between DC-PV, AC-PV, the home grid, and off-grid output. Our product description helps narrow down the suitable system architecture before purchase. Directly linked alternatives facilitate comparison without unconfirmed compatibility between different systems. Zendure-Battery series to make such a hasty claim.

Frequently asked questions

-- Can the SolarFlow 4000 Mix Pro be used as a backup power supply?

Yes, for suitable consumers via the designated off-grid output within the specified power limits.

-- Is installation possible without a qualified electrician?

No. Proper integration into the building's electrical system and the protection concept requires a qualified electrician.

-- Sind ZendureAre batteries from other SolarFlow series automatically compatible?

No. An expansion may only be carried out using components expressly approved by the manufacturer.
