Zendure SolarFlow 800 Pro 2 1000W 250W x4 flexible set

The Zendure SolarFlow 800 Pro 2 set with 4× RENEPV V3.0 250W flex modules The storage system combines 1000 W module power with existing AC, MC4, and mounting equipment. The modules are designated RFMM10NH6-250. The scope of delivery and datasheet values ​​have been updated; connections, wiring, and input limits must be checked against both manufacturers' documentation before commissioning.

We are an officially authorized Zendure-Retailers in Germany – you enjoy full warranty and service benefits.
Warranty and service processes may differ for purchases from other sellers; serial number validation and current information are decisive. Zendure-Conditions. official Zendure-Notice

Delivery

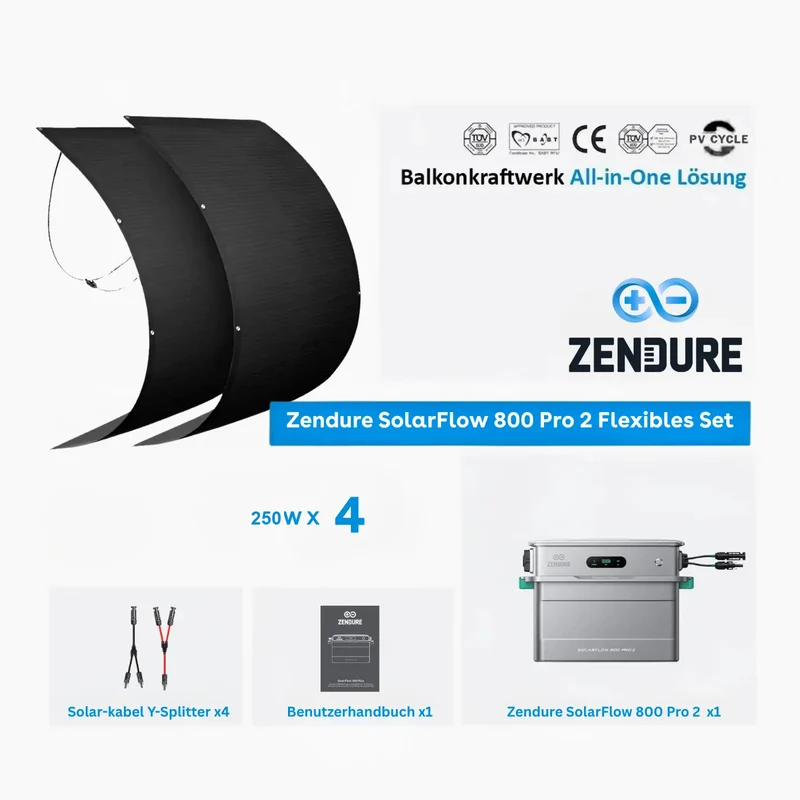

1 x Zendure SolarFlow 800 Pro 2 Main Unit
1 x AC power cable (Schuko, 3m or 5m depending on region)
1 x set of solar cable adapters (MC4)
1 x Mounting kit / wall bracket
1 x user manual
4 x Y-cables for solar panels (2 pairs)
4 x RENEPV flexible solar module 250 W

Produktvorteile

-- 1000 W updated module power: Four modules, each with 250 W, result in the module output specified in the set, which is uniformly documented.

-- Unique model assignment: The RFMM10NH6-250 is specified uniformly in terms of scope of delivery, datasheet and technical specifications.

-- SolarFlow 800 Pro 2 Main Unit: The storage system remains the central component of the set.

-- Accessories traceable: AC cable, MC4 adapter, mounting kit and user manual remain listed separately.

Compatibility

The set configuration is not a blanket approval for every wiring configuration or installation situation. Before commissioning, the MPP voltage, MPP current, open-circuit voltage, short-circuit current, number of inputs, current and power limits, and connectors must be checked against the documentation of the storage or inverter manufacturer and the RENEPV datasheet.

Technical information

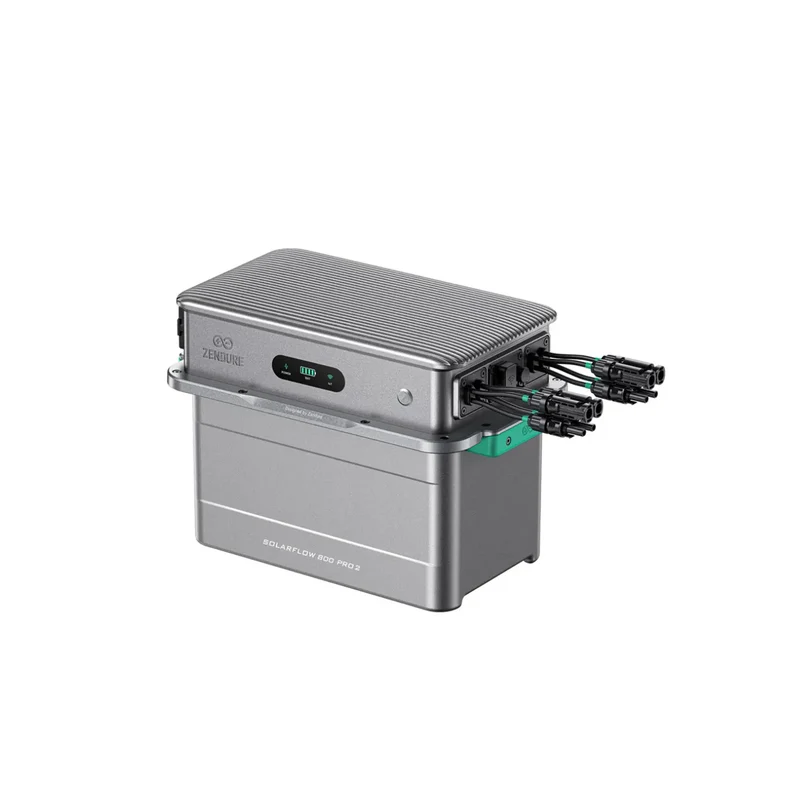

-- Main unit: Zendure SolarFlow 800 Pro 2
-- RENEPV modules in a set: 4 × 250 W = 1000 W
-- Model: RFMM10NH6-250
-- Power tolerance: 0 to +5 W
-- Module efficiency: 21,4%
-- Vmp/Imp: 36,98V/6,76A
-- Voc / Isc: 43,35V ±3% / 7,30A ±3%
-- Dimensions per module: 1.159 × 1.009 × 2,5 mm
-- Weight per module: 4,3 kg ±3%
-- Construction: PET front and back layers, black backing
-- Junction box: IP67
-- PV cable: 4,0 mm²
-- Connectors: MC4-compatible, IP67
-- Operating temperature: −20 to +65 °C
-- Maximum series fuse: 15 A
-- Maximum system voltage: 1.500 V DC
-- Warranty according to data sheet: 5-year product warranty and 25-year performance warranty

RENEPV RFMM10NH6-250 Datasheet (PDF, English)

Matching accessories and related products

• Zendure Solarflow
• Zendure SolarFlow 800 Pro 2 2000W 250W x8 flexible set

Why Mini Power

At Mini Power, in Set with 4× RENEPV V3.0 250W flex modules Storage system or microinverter, 1000 W module power, and accessories are shown separately. The current manufacturer's datasheet is linked directly; the confirmed scope of delivery is listed completely and in the original order. Since the electrical limits of both product groups must be tested together, the page does not contain a general compatibility guarantee or freely transferable wiring recommendations. This ensures that product selection remains transparent and technically comprehensible.

Frequently asked questions

-- What module power output does the updated set contain?

Included are 4 RENEPV modules, each with 250 W, for a total nominal power of 1000 W.

-- What fasteners or connecting parts are included?

Included are only the fastening or connecting parts listed in the scope of delivery, in the quantity specified therein.

Is electrical compatibility automatically guaranteed?

No. The electrical limits and the specific wiring must be checked against both manufacturers' documentation before commissioning.
